Yunsheng Industrial Synchronous AC Pmsm Motor (0.75kw to 132kw)

Yunsheng Industrial Synchronous AC Pmsm Motor (0.75kw to 132kw)
Price: Negotiable/Piece
Min Order: 20/Piece
Pay Type: L/C,T/T
Prod Model: 75/280YSK15/30FWJ
Usage 1: Air Compressor, Textile Machinery,Fan
Usage 2: Fan, Extruder Extruding Equipment
Feature: Energy Saving/Ie4
Power Range: 0.75kw ~ 132kw
Torque Range: 4.8 N.M ~ 420 N.M
Number Of Stator: Three-Phase
Function: Vector Control
Certification: Ce
Brand: Yunsheng

Product Description

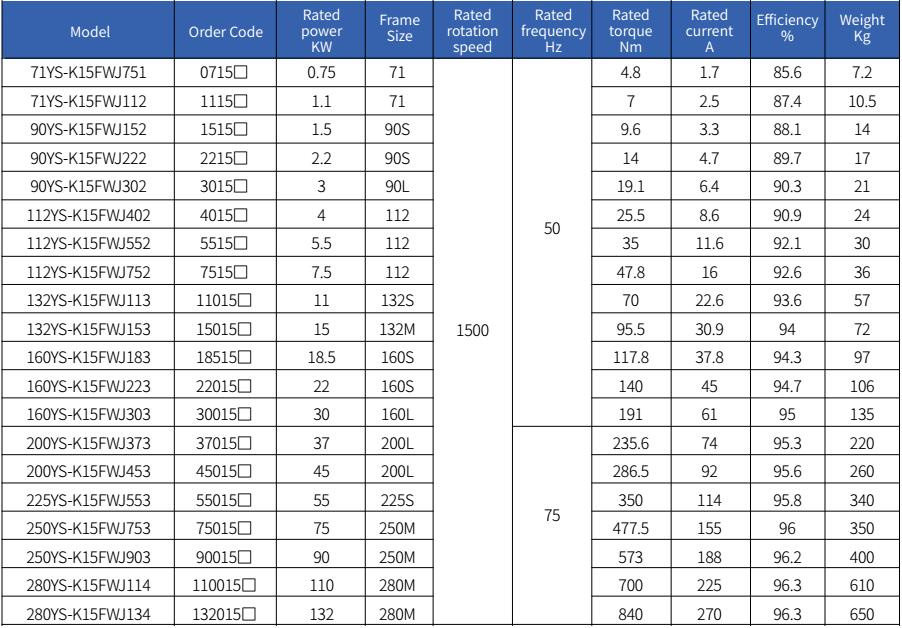

PMSM Synchronous Motor: 3kw-1500rpm
Motor Identifier: 90YSK15FWJ302
Nominal power Pn: 3 KW
Mounting height of motor axis: 90L mm

Nominal torque @ 1500 RPM: 19.1 N.M
Frequency @ 1500 RPM: 50 Hz
Net weight @ 1500 RPM: 21 kg
Nominal current @ 400V rated voltage: 6.4 A
Nominal current @ 220V rated voltage: 14 A
Pole number: PN=4
Maximum Torque: 150%TN 60S
Temperature Uprising: <65K
Efficiency Grade: IE4 (GB30253-2013 Grade 1)
Efficiency measurement @ 1500RPM: 88.9%
Efficiency measurement @ 3000RPM: 91.6%
Waterproof: IP55
Cooling: IC411 Air cooling
Insulation Grade: F
Mounting: IMB3, IMB5, IMB35
Vibration: <4.9m/s2

Motor should be used under working conditions of 5ºC-40ºC and below 90%RH.
Motor should be stocked under conditions of -10ºC to 60ºC and below 90%RH.

Ningbo Yunsheng Co., Ltd, with its more than ten subsidiary enterprises, such as:

Ningbo Yunsheng High-tech Magnetics Co., Ltd.,

Ningbo Yunsheng Motor Co., Ltd.,

Ningbo Yunsheng Servo Control Division,

And Nikko Electric Industry Co., Ltd., etc.,

Is a state key high-tech enterprise listed among the top 100 of China's Electronic and Information Technology Companies and designated as a home for post-doctorate research station. It has been listed (IPO) in Shanghai Stock Exchange since October 30, 2000.

The Servo Motor Division, inheriting the corporate culture gene from its holding company Ningbo Yunsheng Co., Ltd., is devoted to supply various servo motors in the field of equipment application on a basis of research in new materials, new energy and mechanical-electronic integration industry. And commits to be growing up together with its valuable customers The company established a professional institute on the R&D of the servo technology by an excellent team comprising about thirty high-end research staff of which have the degrees of master or doctor, which ensures the leading position in technology of the company With the high-quality rare earth magnets produced by Ningbo Yunsheng High-Tech Magnetics Co., Ltd., assembled in the rotors and other key components with world-class quality, the company always pursuant to assure the reliability and consistency of the product effectively. We are committed ourselves to provide every single high-quality motor, with equipped by the imported top-rank servo motor manufacturing facility, and the implementation of a strict quality control system.
