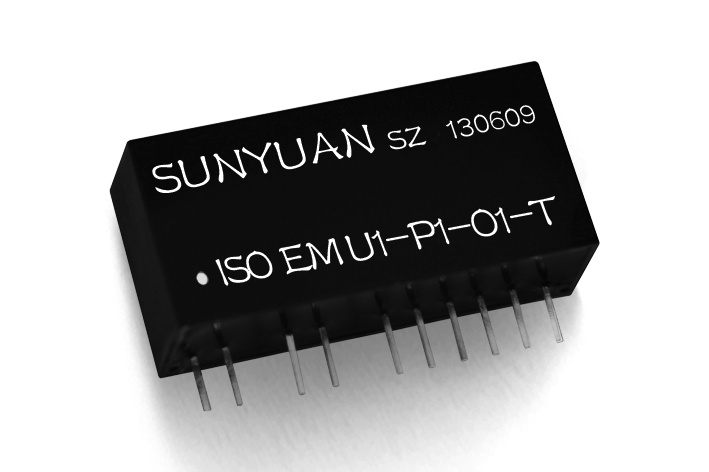

Zero/Gain Adjustable Magneto-Electric Isolation Transmitter/Amplifier IC
| Price: |
Negotiable/Piece |
| Min Order: |
5/Piece |
| Pay Type: |
T/T,Western Union,Paypal,Money Gram |
Adjustable Magneto-electric Isolation(0-20mA/0-5V/0-75mV/0-10V/4-20mA)Transmitter/Amplifier IC
Zero/Gain and Full Scale Adjustable Magneto-electric Isolation Transmitter
Features:
Precision grade: 0.1, 0.2, 0.5, nonlinearity grade (in full measuring range) <0.2%.
Zero, Gain, Full scale calibration are available through external multi-turn potentiometer.
Isolation power among auxiliary power, analog input, output: 3000VDC
Auxiliary power: 5V,12V,15V,24VDC, etc.
Isolation, amplification and conversion among 0-75mV/ 0-5V/ 0-10V/ 0-1mA/ 0-20mA/ 4-20mA analog signal.
Industrial temperature range: -20 ~ +70 ºC
Electro-magnetic anti-interference circuits /shielding measures are required in the field with special EMC.
Low cost, compact SIP 12Pin, UL94V-0 standard flame retardant package.
Applications:
DC current/voltage signal isolation, conversion and amplification.
Long-distance isolated transmission of industrial site signals.
Analog signal GND wire anti-interference and data isolated acquisition.
Meters, instruments and sensors signal acquisition and transmission.
Isolated data acquisition of analog signals from PLC, DCS.
VFD/transducer signal long-distance transmission without distortion.
Power monitoring control, medical equipments isolated safety bar.
4-20mA sensor analog signal 1x2, 2x2, 1x4 isolated amplification and transmission.
Model Selection:
ISO EM U(A)-P- O- T
T:Means that Zero, Full Scale/Gain can be adjusted /Calibrated separately
U(A):Input Current/Voltage
U1:0-5V
U2:0-10V
U3:0-75mV
U4:0-2.5V
U8: Customized
A1:0-1mA
A2:0-10mA
A3:0-20mA
A4:4-20mA
A8: Customized
P:Auxiliary Power
P1:DC24V P2:DC12V
P3:DC5V P4:DC15V
P8:Customized
O:Output Signal
O1: 4-20mA O2: 0-20mA O3: 4-12-20mA
O4: 0-5V O5: 0-10V O6: 1-5V
O8: Customized
Model Selection Examples:
E.g.1: Input Signal: 0-5V; Auxiliary Power:24VDC ; Output Signal: 4-20mA; Zero, Full Scale/Gain can be adjusted /Calibrated separately. Product Model: ISO EM U1-P1-O1-T
E.g. 2: Input Signal: 4-20mA ; Auxiliary Power:24VDC ; Output Signal:4-20mA; Full Scale/Gain can be adjusted /Calibrated separately. Product Model: ISO EM A4-P1-O1-T
| Prod Model: |
ISOEM U(A)-P-O-T Series |
| Input: |
0-75mv/0-2.5V/0-5V/0-10V/0-±100mv |
| Output: |
0-75mv/0-2.5V/0-5V/0-10V/0-±100mv |
