0.062inch High Frequency PCB Built RO4350b with HASL RoHS Compliance
| Price: |
US $ 0.35/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC-797-V7.97 |
| Final Foil External: |
1.5oz |
| Final Height Of PCB: |
1.6 mm ±10% |
| Surface Finish: |
HASL Lead Free |
| Solder Mask Color: |
None |
| Colour Of Component Legend: |
Black |
| Minimum Trace And Space: |
40 Mil / 20 Mil |
| Minimum / Maximum Holes: |
No Holes |
| Via: |
N/a |
| Final Foil Internal: |
N/a |
| Test: |
100% Electrical Test Prior Shipment |
| Type: |
Rigid Circuit Board |
| Flame Retardant Properties: |
V0 |
| Dielectric: |
RO4350b |
| Material: |
Hydrocarbon/Woven Glass |
| Insulation Materials: |
Glass Reinforced Hydrocarbon |
Product Description
1.1 General description

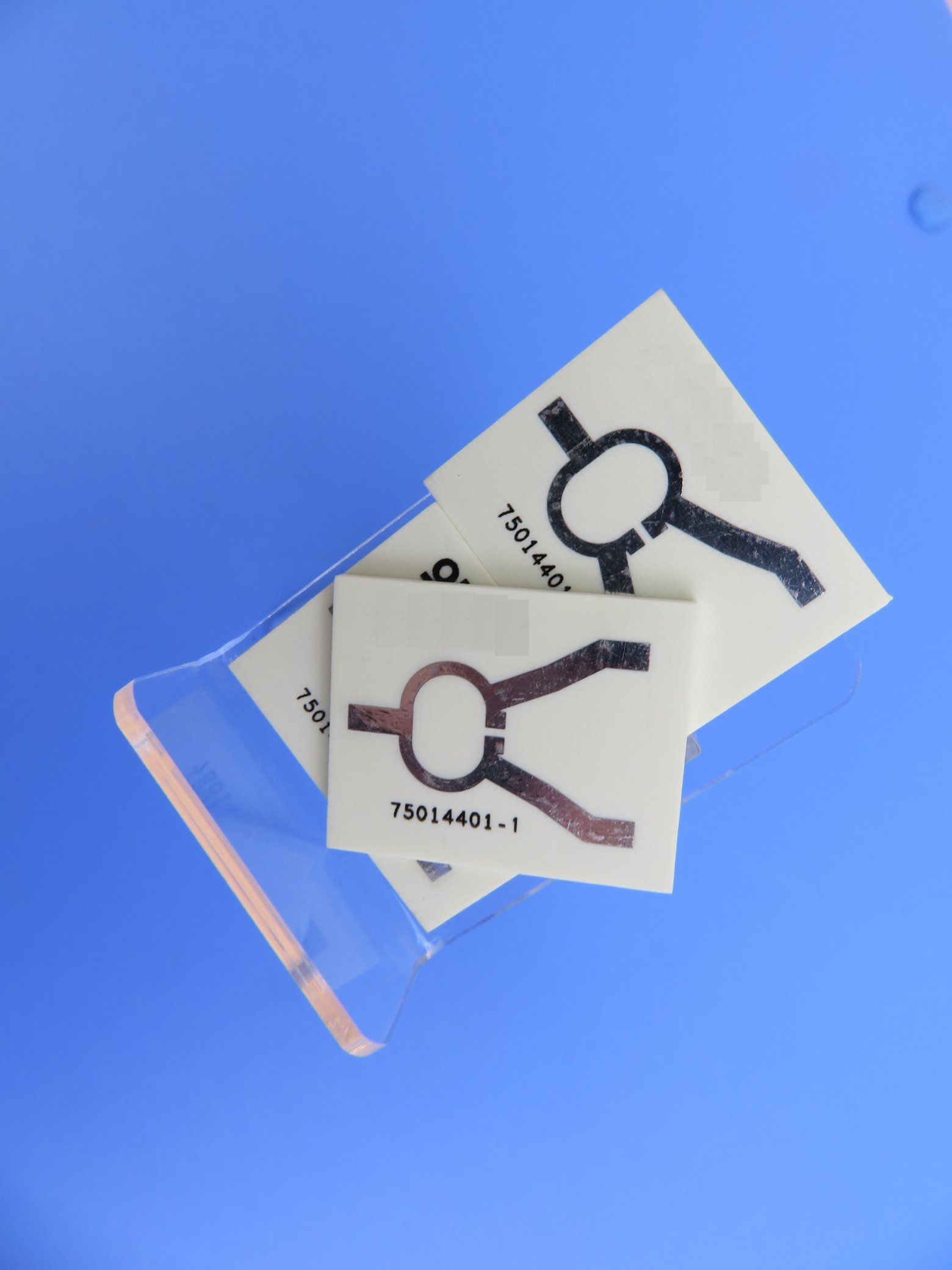

This is a type of double sided high frequency PCB built on RO4350B substrate with Tg 280°C
for the application of mixer. It's 1.60 mm thick without solder mask; Black silkscreen is directly
on the substrate and HASL is on pads for soldering. The base material is used from Rogers
Corp., entire board supplying 1 up. They're fabricated per IPC 6012 Class 2 using supplied
Gerber data. Each 25 boards are packed for shipment.
1.2 Features and benifits
A. The dielectric constant (DK) is low and stable, so the signal transmission is good without
delay;
B. The characteristic of low dielectric loss makes the signal loss at a lower level, which makes
the signal transmission of the whole equipment excellent;
C. Delamination of copper foil will not be caused by the change of cold and heat due to the
consistency with the thermal expansion coefficient of copper foil;
D. Meeting your PCB needs from prototype to mass production;
E. Powerful PCB capabilities support your reaearch and development, sales and marketing;
F. Professional and experienced engineers;
G.Competitive price;
1.3 Application
Uhf radio, Power divider, LNB, Automatic gate induction
1.4 Parameter and data sheet| PCB SIZE | 30 x 22mm=1PCS |
| BOARD TYPE | Double sided PCB |
| Number of Layers | 2 layers |
| Surface Mount Components | YES |
| Through Hole Components | NO |
| LAYER STACKUP | copper ------- 35um(1 oz)+plate TOP layer |
| RO4350B 1.524mm |
| copper ------- 35um(1oz) + plate BOT Layer |
| TECHNOLOGY | |
| Minimum Trace and Space: | 40 mil / 20 mil |
| Minimum / Maximum Holes: | No holes |
| Number of Different Holes: | 0 |
| Number of Drill Holes: | 0 |
| Number of Milled Slots: | 0 |
| Number of Internal Cutouts: | 0 |
| Impedance Control: | no |
| Number of Gold finger: | 0 |
| BOARD MATERIAL | |
| Glass Epoxy: | RO4350B Tg280ºC, er<3.48, Rogers Corp. |
| Final foil external: | 1.5 oz |
| Final foil internal: | N/A |
| Final height of PCB: | 1.6 mm ±10% |
| PLATING AND COATING | |
| Surface Finish | HASL Lead free |
| Solder Mask Apply To: | NO |
| Solder Mask Color: | N/A |
| Solder Mask Type: | N/A |
| CONTOUR/CUTTING | Routing |
| MARKING | |
| Side of Component Legend | N/A |
| Colour of Component Legend | Black |
| Manufacturer Name or Logo: | Marked on the board in a conductor and
leged FREE AREA |
| VIA | N/A |
| FLAMIBILITY RATING | UL 94-V0 Approval MIN. |
| DIMENSION TOLERANCE | |
| Outline dimension: | 0.0059" |
| Board plating: | 0.0029" |
| Drill tolerance: | 0.002" |
| TEST | 100% Electrical Test prior shipment |
| TYPE OF ARTWORK TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
| SERVICE AREA | Worldwide, Globally. |
