| Prod Model: |
0cr23al5 |
| Product Type: |
Wire |
| Carbon Content: |
Low Carbon |
| Size: |
0.01-10mm |
| Sample: |
Small Order Accepted |
Product Description

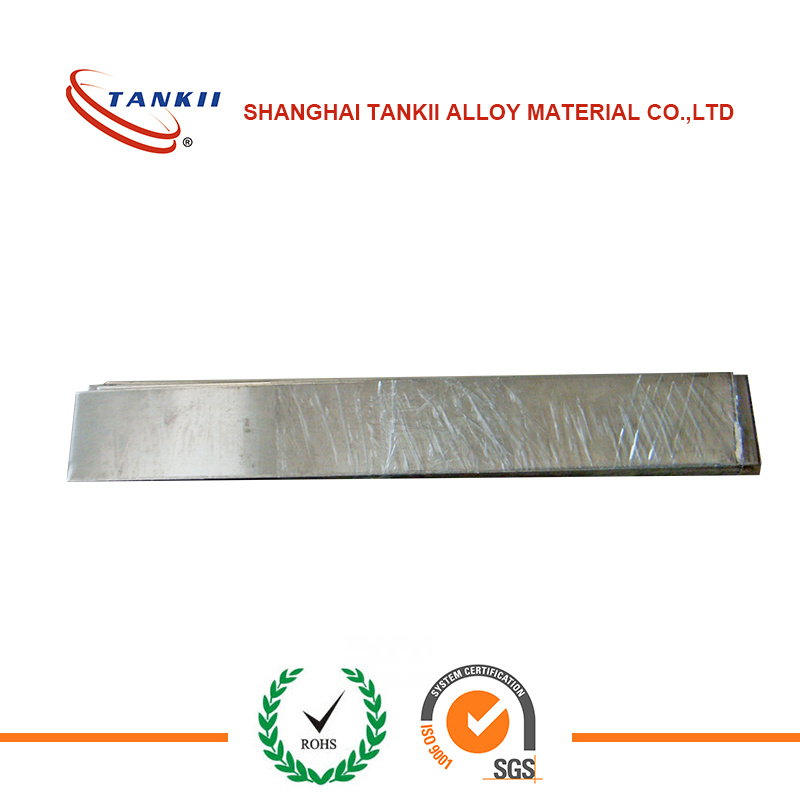

0cr23al5 Sheet for Resistor Elements with High Quality
FeCrAl(Cr23Al5) resistance wire
1. Introduction to products
With the characteristics of high resistance, low coefficient of electric resistance, high operating temperature, good corrosion resistance under high temperature.
2. Alication
Our Products widely apply to chemical industry, metallurgy mechanism, glass industry, ceramic industry, home appliance area and so on.
3. Size
Wires: 0.018-10mm Ribbons: 0.05*0.2-2.0*6.0mm
4. Packing detail
Spool, coil, wooden case(as per client's requiryment)
| Product name | Size range |
| Cold drawing wire | Diameter 0.03-7.5mm |
| Hot-rolled wire rod | Diameter 8.0-12mm |
| Ribbon | Thickness 0.05-0.35mm |
| Width 0.5.0-3.5mm |
| Cold rolled strip | Thickness 0.5-2.5mm |
| Width 5.0-40mm |
| hot rolled strip | Thickness 4-6mm |
| Width 15-40mm |
main property | type | 0Cr13Al4 | 0Cr21Al4 | 0Cr25Al5 | 0Cr21Al6 | 0Cr21Al6Nb | 0Cr27Al7mo2 | 0Cr23Al5 |
main chemical composition
% |
Cr | 12-15 | 17-21 | 23-26 | 19-22 | 21.0-23.0 | 26.5-27.8 | 20.5-23.5 |
| Al | 4-6 | 2-4 | 4.5-6.5 | 5-7 | 5-7 | 6-7 | 4.2-5.3 |
| Fe | rest | rest | rest | rest | rest | rest | rest |
| Mn | ≤0.7 | ≤0.7 | ≤0.7 | ≤0.7 | ≤0.7 | ≤0.2 | ≤0.7 |
Max working Temperature
°c |
950 | 1100 | 1300 | 1300 | 1350 | 1400 | 1250 |
density
g/cm3 |
7.40 | 7.35 | 7.10 | 7.10 | 7.10 | 7.10 | 7.25 |
melting point
°c |
1450 | 1500 | 1500 | 1500 | 1500 | 1520 | 1500 |
elongation% |
?16 | ?14 | ?12 | ?12 | ?12 | ?12 | ?12 |
| variation area | 65-75 | 65-75 | 65-75 | 65-75 | 65-75 | 65-75 | 65-75 |
| bending frequency | ?5 | ?5 | ?5 | ?5 | ?5 | ?5 | ?5 |
| hardness | 200-260 | 200-260 | 200-260 | 200-260 | 200-260 | 200-260 | 200-260 |
| resistivity | 1.25 | 1.23 | 1.40 | 1.40 | 1.43 | 1.53 | 1.35 |
tensile strength
MPA |
588-735 | 637-784 | 637-784 | 637-784 | 637-784 | 686-784 | 637-784
|
FAQ
1. What's the minimum quantity customer can order?
If we have your size in stock, we can provide any quantity you want.
If we do not have, for spool wire, we can produce 1 spool, about 2-3kg. For coil wire, 25kg.
2. How can you pay for small sample amount?
We have Western union account, wire transfer for sample amount also ok.
3. Customer do not have express account. How will us arrange the delivery for sample order?
Just need to provide your address information, we will check the express cost, you can arrange the express cost together with sample value.
4. What's our payment terms?
We can accept LC T/T payment terms, it also depending on delivery and total amount. Let's talk more in details after getting your detailed requirements.
5. Do you provide free samples?
If you want several meters and we have stock of your size, we can provide, customer need to bear the International express cost.
6. What's our working time?
We will give you reply through email/phone Online contact tool within 24 hours. No matter working day or holidays.
Any questions pls kindly send email to us,thank you.
Shanghai TANKII ALLOY MATERIAL Co., Ltd.
FECRAL AND ALCHROME ALLOY PRODUCER IN China, MOST PROFESSIONAL IN THE WORLD
Shanghai Tankii Alloy Material Co., Ltd. Focus on the production of resistance alloy(nichrome Alloy, FeCrAl Alloy, copper nickel alloy, thermocouple wire, precision alloy and thermal spray alloy in the form of wire, sheet, tape, strip, rod and plate. We've already got ISO9001 quality system certificate and approval of ISO14001 environmental protection system. We own a complete set of advanced production flow of refining, cold reduction, drawing and heat treating etc. We also proudly have independent R&D capacity.
Shanghai Tankii Alloy Material Co., Ltd has accumulated lots of experiences over 35 years in this field. During these years, more than 60 management elites and high science and technology talents were employed. They participated in every walk of the company life, which make our company keep blooming and invincible in the competitive market. Based on the principle of "first quality, sincere service", our managing ideology is pursuing technology innovation and creating the top brand in the alloy field. We persist in Quality - the foundation of the survival. It is our forever ideology to serve you with full heart and soul. We committed to provide customers all over the world with high-quality, competitive products and perfect service.
Our products, such us nichrome alloy, precision alloy, thermocouple wire, fecral alloy, copper nickel alloy, thermal spray alloy have been exported to over 60 countries in the world. We are willing to establish strong and long-time partnership with our customers. Most complete range of products dedicated to Resistance, Thermocouple and Furnace manufacturers Quality with end to end production control Technical support and Customer Service.
