Konstantan Strip

Name: Konstantan Strip
Brand: all-electronics-online.com
SKU: 773497375
Availability: InStock
Rating: 4.5 (150 reviews)

Price:	US $ 20kg
Trade Terms:	FOB,CFR,EXW
Min Order:	30kg
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	Konstantan
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Resistance:	Fixed Resistor
Function For Resistance:	Protective Resistor

Product Description

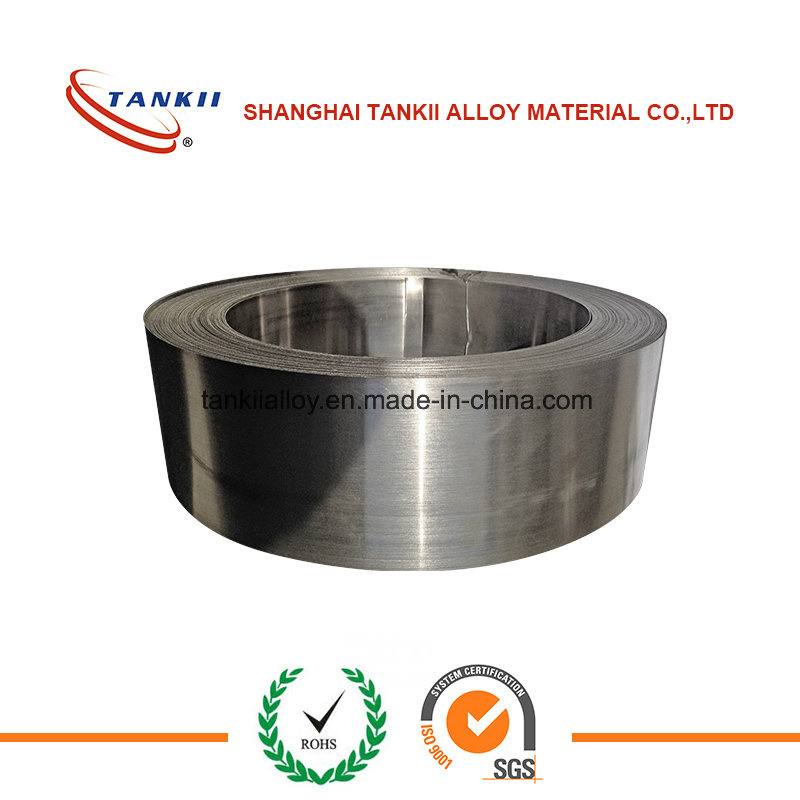

Konstantan Strip

Konstantan is a copper-nickel alloy usually consisting of 55% Copper and 45% Nickel. Its main feature is its resistance which is constant over a wide range of temperatures. It is also called Alloy 294, Nico, MWS-294, Cupron, Copel, Alloy 45, Neutrology, Advance, CuNi 44, CuNi 44, CN49.

Other grade of copper nickel alloy are as follows:

CN5, CuNi2

A60, Alloy 60, 60 Alloy, MWS-60, Lohm, HAI-60, CuNi 6, Alloy 260, Nickel Alloy 60, CN10

CuNi10, CN15

A30, Alloy 30, CuNi23, 30 Alloy, MWS-30, HAI-30, Alloy 230, Nickel Alloy 30, CN 30

CuNi1, CuNi15, CuNi30

Shanghai Tankii Alloy Material Co., Ltd. Is the most professional producer of constantan, copper nickel alloys in wire, strip and rod.

If there is any question or requirement, pls be free to contact with us.

Priperties/Grade	CuNi1	CuNi2	CuNi6	CuNi8	CuNi10
Max Continuous Service Temperature(º C)	200	200	200	250	250
Resisivity at 20º C (Ω mm2/m)	0.03	0.05	0.1	0.12	0.15
Density(g/cm 3 )	8.9	8.9	8.9	8.9	8.9
Thermal Conductivity(α × 10 -6 /º C)	< 100	< 120	< 60	< 57	< 50
Tensile Strength(Mpa)	210	220	250	270	290
EMF vs Cu(μ V/º C)(0~1000º C)	-8	-12	-12	-22	-25
Approximate Melting Point( º C)	1085	1090	1095	1097	1100

Priperties/Grade	CuNi14	CuNi19	CuNi23	CuNi30	CuNi44
Max Continuous Service Temperature(º C)	300	300	300	350	400
Resisivity at 20º C (Ω mm2/m)	0.2	0.25	0.3	0.35	0.5
Density(g/cm 3 )	8.9	8.9	8.9	8.9	8.9
Thermal Conductivity(α × 10 -6 /º C)	< 30	< 25	< 16	< 10	< -6
Tensile Strength(Mpa)	310	340	350	400	420
EMF vs Cu(μ V/º C)(0~1000º C)	-28	-32	-34	-37	-43
Approximate Melting Point( º C)	1115	1135	1150	1170	1200

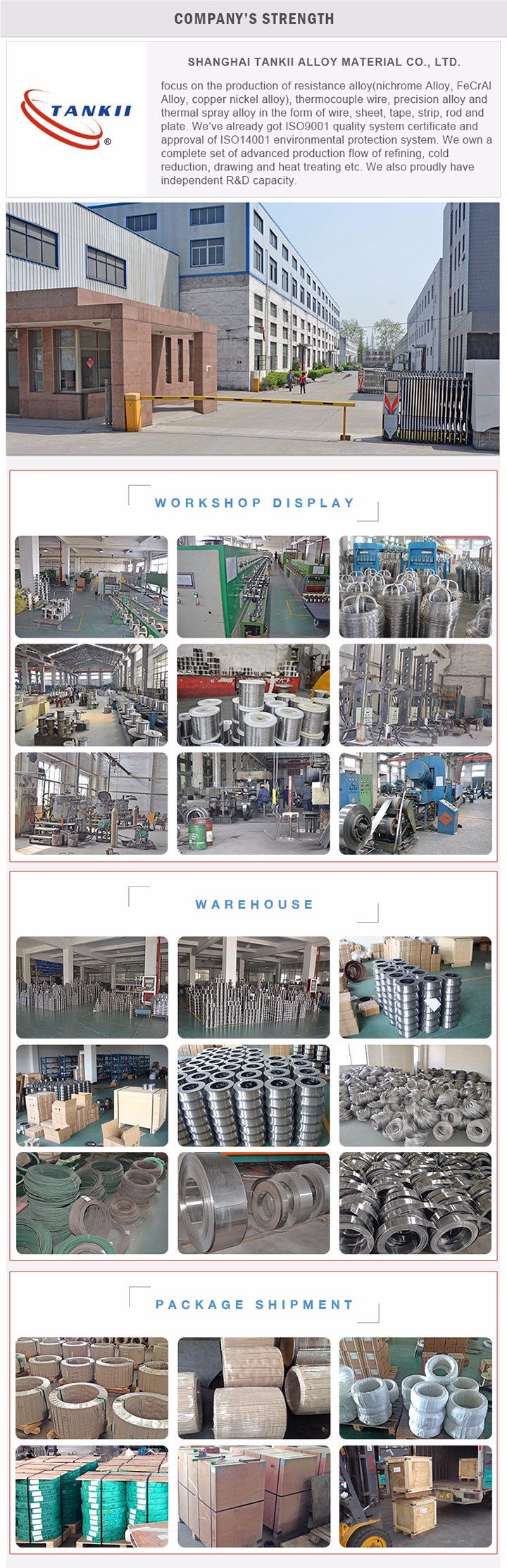

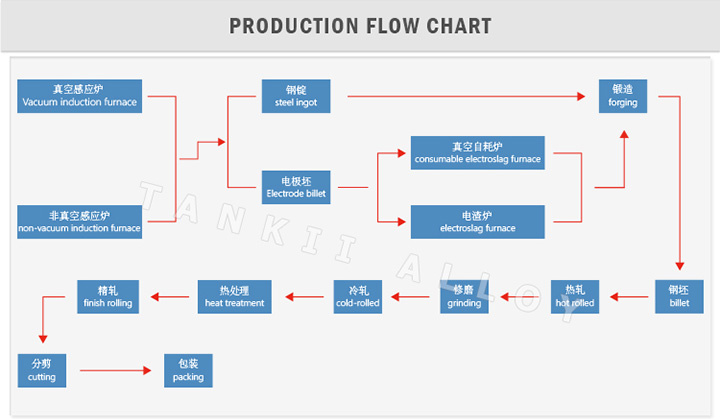

Shanghai Tankii Alloy Material Co., Ltd. Focus on the production of resistance alloy(nichrome Alloy, FeCrAl Alloy, copper nickel alloy, thermocouple wire, precision alloy and thermal spray alloy in the form of wire, sheet, tape, strip, rod and plate. We've already got ISO9001 quality system certificate and approval of ISO14001 environmental protection system. We own a complete set of advanced production flow of refining, cold reduction, drawing and heat treating etc. We also proudly have independent R&D capacity.

Shanghai Tankii Alloy Material Co., Ltd has accumulated lots of experiences over 35 years in this field. During these years, more than 60 management elites and high science and technology talents were employed. They participated in every walk of the company life, which make our company keep blooming and invincible in the competitive market. Based on the principle of "first quality, sincere service", our managing ideology is pursuing technology innovation and creating the top brand in the alloy field. We persist in Quality - the foundation of the survival. It is our forever ideology to serve you with full heart and soul. We committed to provide customers all over the world with high-quality, competitive products and perfect service.

Our products, such us nichrome alloy, precision alloy, thermocouple wire, fecral alloy, copper nickel alloy, thermal spray alloy have been exported to over 60 countries in the world. We are willing to establish strong and long-time partnership with our customers. Most complete range of products dedicated to Resistance, Thermocouple and Furnace manufacturers Quality with end to end production control Technical support and Customer Service.
