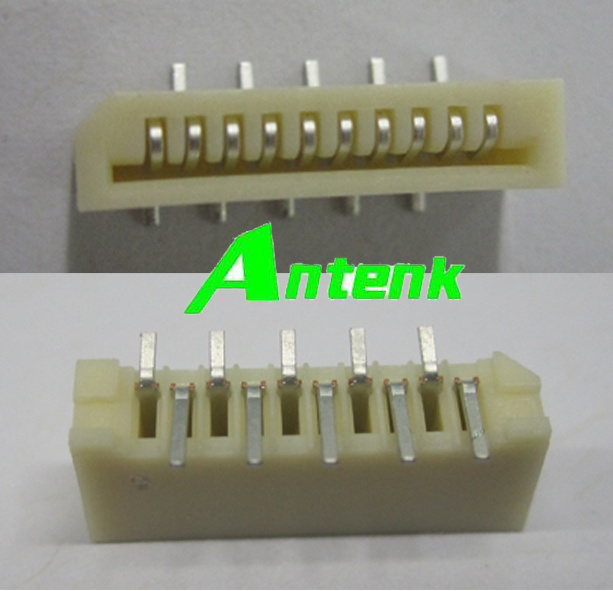

1.0mm FPC Connector, Non-Zif, Vertical SMT Type, Difference Poles

Prod Model:	FPC connector series 003
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material:	Polyester Film
Structure:	Double-Sided FPC
Application:	Mobile Phone
Combination Mode:	Without Adhesive Flexible Plate
Conductive Adhesive:	Conductive Silver Paste

Product Description

1.0MM FPC CONNECTOR, NON-ZIF, VERTICAL SMT TYPE, Difference Poles


Current Rating: 0.5A 50V AC/DC

Dielectric Withstanding Voltage: 150V AC for one minute

Contact Resistance: <50mΩ
Insulation Resistance: >500mΩ
Operating Temperature: -40° C~105° C

Meterial:

Body: Hight termperature plastic UL 94V-0 Color Nature
Cover: Hight termperature plastic UL 94V-0 Color Black
Contact: Phosphor Bronze
Fixed Tab: Btass with Tin plated


We mainly produce high quality board to board connectors, wire to board connectors, wire to wire connectors, modular Jack, terminal block, wire harnesses, cable assemblies and so on. All of our new products are and will always be designed for a various of application and to meet UL and CSA regulations, also EU directive ROHS compliant. More, The factory already acquired ISO9001 and ISO14001 international quality, environment systems certification.

The products are widely used in displays, computer motherboards, stored program control exchangers, digital cameras, cards, routers, wireless telephones, talkback machines, mobile phones, digital family appliances and so on...
