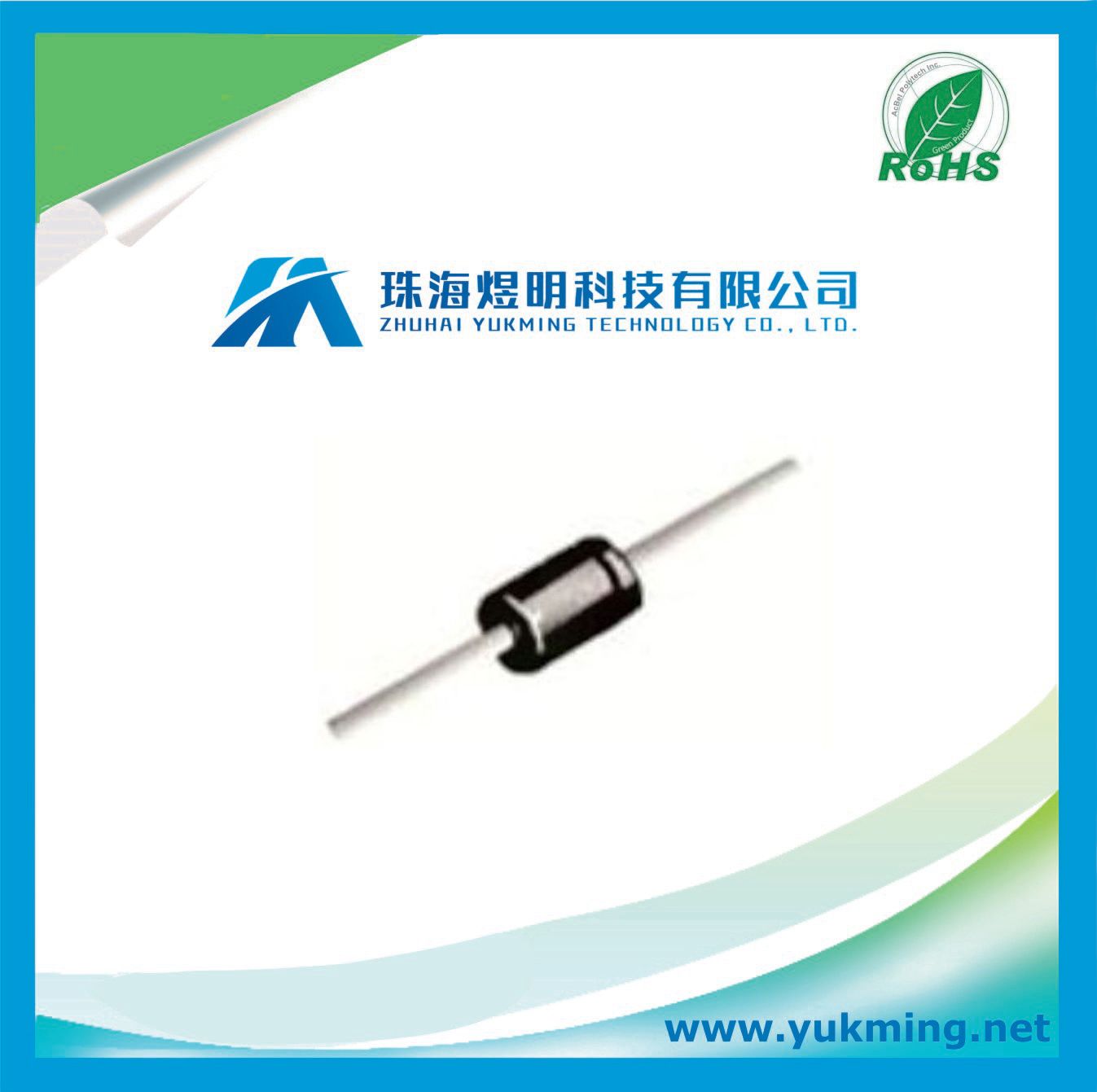

1.0W Zener Diode of Electronic Component for PCB Assembly

Name: 1.0W Zener Diode of Electronic Component for PCB Assembly
Brand: all-electronics-online.com
SKU: 796763805
Availability: InStock
Rating: 4.4 (26 reviews)

Price:	US $ 0.0694/Piece
Min Order:	250/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	1N4749A
Configuration:	Single
Test Current (Ma):	10.5
Shape:	Do-41

Product Description

Lead time	2 to 3 days after receiving the payment.
Remark	100% New and original ; 30 days warranty
Payment	Heng Seng Bank (Hong Kong), Paypal,
Shipment	DHL ,TNT ,FEDEX, UPS or any other express

MANUFACTURER
Fairchild Semiconductor

PRODUCT CATEGORY
Zener

DESCRIPTION
Diode Zener Single 24V 5% 1W 2-Pin DO-41 Bulk

This 1N4749A zener diode from Fairchild Semiconductor is perfect for your circuit requiring a diode to operate in the reverse-breakdown region. Its maximum leakage current is 5 μA. Its test current is 10.5 mA. Its maximum power dissipation is 1000 mW. This product comes packaged in bulk, so the parts will be stored loosely. This zener device has a nominal voltage of 24 V and a voltage tolerance of 5%. This zener diode has a minimum operating temperature of -65 °C and a maximum of 200 °C. It is made in a single configuration.

Specifications
EU RoHS Compliant
Configuration Single
Test Current (mA) 10.5
Nominal Zener Voltage (V) 24
Maximum Zener Impedance (Ohm) 25
Zener Voltage Tolerance 5%
Maximum Reverse Leakage Current (uA) 5
Maximum Power Dissipation (mW) 1000
Minimum Operating Temperature (°C) -65
Maximum Operating Temperature (°C) 200
Packaging Bulk
Package Diameter (mm) 2.72(Max)
Mounting Through Hole
Package Length (mm) 5.21(Max)
PCB changed 2
Standard Package Name DO-204-AL
Supplier Package DO-41
Pin Count 2
Lead Shape Through Hole

Features
• Low profile package
• Built-in strain relief
• Low inductance
• High temperature soldering : 260°C /10 seconds at terminals
• Plastic package has Underwriters Laboratory Flammability
Classification 94V-O
• In compliance with EU RoHS 2002/95/EC directives

Mechanical Data
• Case: Molded plastic DO-41
• Epoxy:UL 94V-O rate flame retardant
• Terminals: Axial leads, solderable per MIL-STD-750, Method 2026
guaranteed
• Polarity: Color band denotes positive end
• Mounting position:Any
• Weight: 0.012 ounce, 0.3 gram
• Packing information
B - 1K per Bulk box
T/R - 5K per 13" paper Reel
T/B - 2.5K per horiz. tape & Ammo box
