1-10kw Single Phase to Three Phase off Grid Tie Inverter

Name: 1-10kw Single Phase to Three Phase off Grid Tie Inverter
Brand: all-electronics-online.com
SKU: 696888865
Availability: InStock
Rating: 4.4 (60 reviews)

Price:	US $ 380-1870/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	T1KW-T10KW
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Power Factor:	0.8
Wave Form:	Pure Sine Wave
Frequency Range:	45 -65Hz
Input Voltage Range:	380V± 20%(3 Phase), Phase Voltage 220V
Rectifier:	3 Phase 6 Pulses, 12 Pulses Is Optional
Crest Factor:	3: 01
Rated Voltage:	380/400/415V Optional
Phase Voltage:	200 - 244VAC
Transient Response:	+/-5%, 10ms
Protection:	Short Circuit

Product Description

1-10KW Single Phase to Three Phase Off grid tie Inverter

Why choose TANFON solar products?

TANFON has sold the system to Nigeria, colombia ,Burkina faso,Egypt,Bolivia,Kenya,Ghana,south africa,Argentina ,philippines,congo , etc.almost 85% of africa countries !
With a professional installation team, Have went to Egypt, chad,Nigeria,Ghana,Doha,pakistan for installation
Already started some inverter factories in some countries.so there is no problem in after sale service. And we are still looking for local factories in other countries, to unfolding depth of cooperation
We insist on using good quality raw material whenever and wherever.
With customer's' praise as an assurance,Tanfon is a guaranteed brand.
Our company's philosophy is: one-stop solar energy service platfo

Our competitive advantage:
1. Use copper transformer, can load pump, lift and industrial load;
2. LCD display;

Feature:
Capacity: 1KW--100KW
(1) Super wide input voltage: 285V-475V
(2) Completely controlled by CPU, LCD automatic page turning display
(3) Protection against output short-circuit; Against overload, and when you throw off its load, it will turn on the unit automatically.
(4) Working for single phase and three phase.
110V/220V single phase; 240V/380V/415V/440V option.
(5) with charger built-in, its charging current is 10A----156A.
(6) Different DC voltage: 24V, 48V, 96V, 384V for optional
(7) Make it with 3 PCS PCB box, it is more stable design.
(8) Can take pump or lift, and other industrial use

Model		T1K	T3K	T5K	T10K	T15K	T20K	T30K	T60K	T100K
Power		1KW	3KW	5KW	10KW	15KW	20KW	30KW	60KW	100KW
Power Factor		0.8
Phase		3 phase 4 wire and ground
Wave form		Pure sine wave
Frequency Range		45 - 65Hz
Input	Voltage Range	380V± 20%(3 phase), phase voltage 220V
	Rectifier	3 phase 6 pulses, 12 pulses is optional
Output	Crest Factor	3: 01
	Rated voltage	380/400/415V optional
	Phase voltage	200 - 244VAC,
	Transient response	+/-5%, 10ms
	Total-harmonic distortion	< 3% linear load, < 5%( nonlinear load)
	Short circuit current	Short current for 0.1s (200% current)
	Overload capacity	Overload 125% for 10 ms, 125%-150% for 1min. automatically resume when load become normal
Bypass	Type	Static state + manual maintenance bypass
	Input Phase	3 phase 4 wire and ground
	Input voltage range	15% - 25% (the front control panel selectable)
	Transfer time	Inverter / bypass transfer switch time(Overload): 0ms inverter / bypass transfer switch time (fault inverter) 1ms
Remote signaling		Dry contact (battery low, battery discharging, bypass/ fault); output 12Vdc/80mA, Optional parts
Communication interface		RS232
Operate condition		0-40 degree Celsius, Less than 95%, without condensing
Noise at 1 M		less than 60 dB
Degree of protection		IP20
Applicable Standards		EN50091-1-EMC EN50091-2liv. A
Product size(mm)		560230570		590470730		9006001380		12009001820
product weight(Kg)		30	40	54	104	125	190	380	690	800

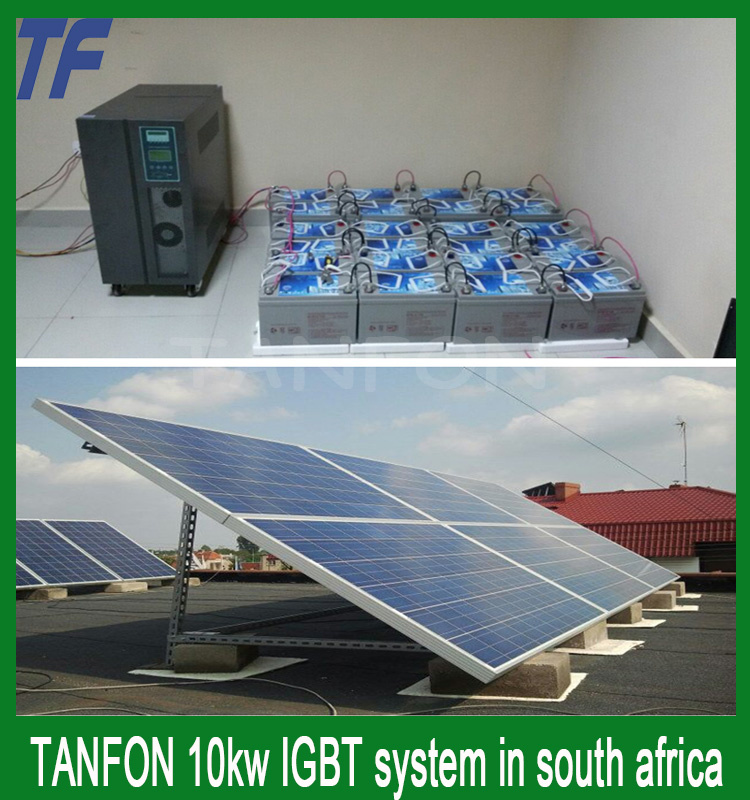

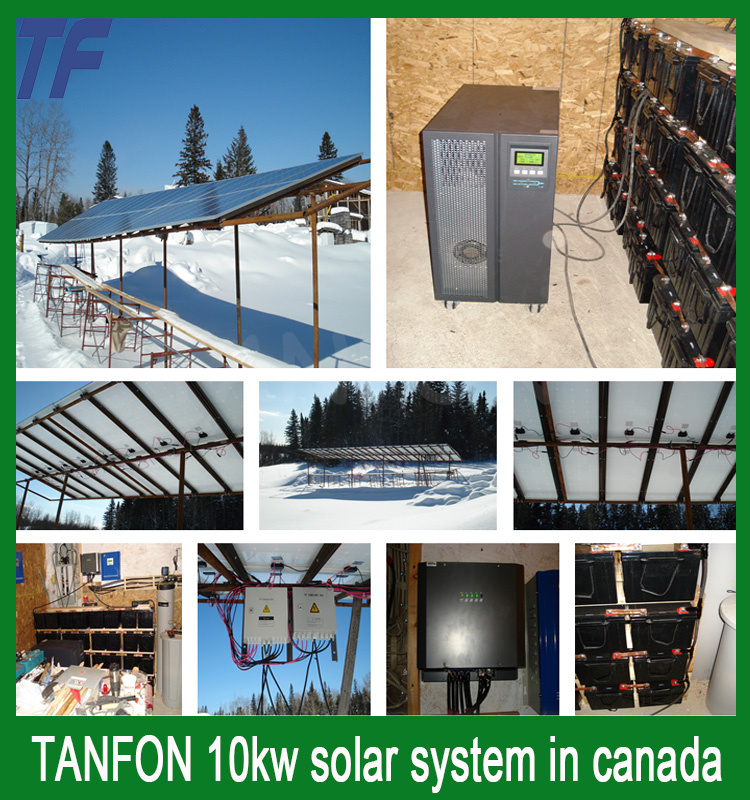

Project pictures from our clients:

Quality is our culture.
With us, your business in safe, your money in safe!

Who we are?

Foshan Tanfon Energy Technology Co., Ltd is a professional manufacturer of green energy products with great commitment, contribution heart and responsibility.

What we do?

We are specialized in the R&D, manufacture and sale of the high quality environmental solar system, wind energy turbine, solar street light, solar pump and pure sine wave inverter, etc.

Now we are having the main series products as below:

1. Solar inverter

2. Solar controller(PWM and MPPT)

3. Portable solar system

4. Solar power system

5. Solar on grid system

6. Solar refrigerator system

7. Wind power system

8. Wind &solar hybrid system

9. Solar street light system

10. Solar air conditioner system

With these items as our weapons, we can fully supply the solutions for our clients' different needs.

We adhere to "quality first, users first" purpose, devoting ourselves everyday into setting up a suitable system for all of our clients.

How we do?

For the production, we have the professional production lines(Automatic series welding machine, EL test machine, Automatic frame machine, Special debug machine). Each step of production is under strict quality control. Our products are qualified with CE, RoHS, ISO certification.

For the service, we promise the quality. All products have the certain warranty and the new part would be shipped freely on time for service during the warranty. Also our company has started opening the factories in some countries, so it is very convenient to service you well at local.

Importantly, with a professional installation team, we have been to many countries(like Egypt, Bangladesh, Chad, Nigeria, Ghana, Doha, Pakistan) for installation service as well as win good feedback from the customers.

Specializing in installing projects from design, detailing, fabrication to erection, having continue cooperation with engineers, exclusive agents and the foreign business partners, we are now sincerely hoping to join hands with you to create a better future together at the principle of win-win cooperation.

Our Vision:

Tanfon create a solar kingdom for you

Our Mission:

Sincere, All-win, Unite, Aggressive.

Our Core Value:

100% Commitment 100% Contribution

100% Possibility 100% Time
