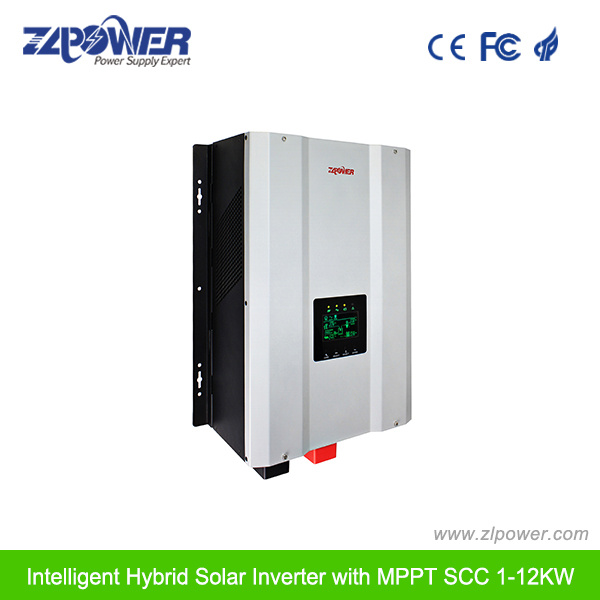

1-12kw Solar Hybrid Inverter PV Power Inverter with MPPT Charger
| Price: |
US $ 273/Piece |
| Min Order: |
2/Piece |
| Pay Type: |
L/C,T/T,Western Union,Money Gram |
| Prod Model: |
GS1-12KW |
| Model: |
1-12kw Solar Hybrid Inverter MPPT Solar Inverter P |
| Charger: |
Solar and Power Inverter Charger |
| Peak Power: |
3 Times of Rating Power |
| Wide AC Input Voltage: |
80-270VAC |
| MPPT Function: |
MPPT Solar Inverter PV Inverter |
| Optional Function: |
DC/AC Priority Function, DC Restart,Bypass,off Cha |
| Wave Form: |
Pure Sine Wave |
| Nominal Voltage: |
110V/120V,220V/230V/240V |
| Remote Switch Panel And LCD Display: |
Yes |
| Warranty: |
2 Years |
Product Description
1-12KW Solar Hybrid Inverter MPPT Solar Inverter PV Inverter Power Inverter Charger
1. GS series 1-12kw solar hybrid inverter MPPT Solar Inverter PV Inverter
2. Built in 12/24/48vdc 40A or 60A MPPT Solar charge controller,MPPT Solar Inverter PV Inverter
3. Wide AC input voltage range 80-270vac
4. Optional Solar or AC priority function
5. Adjustable charge current
7. Large LCD digital display can show solar and inverter parameter
8. Optional Remote LCD display or Switch panel
9. Generator restart signal(Dry contact)
10. Wall-mounted design
11. 2 years warranty with 2% spare boards
Application
GS series 1-12KW Solar Hybrid Inverter MPPT Solar Inverter PV Inverter Power Inverter Charger pure sine wave inverter with MPPT Controller Inside. It's widely used for wind generator, solar power system, house,vehicle, ship, navigation and places where lack of city power, mobile electricity work and telecommunication device,launch station.
Product Parameters
MODEL
(GS Series) | HV/LV Model |
| HV Model(4-10KW) LV Model(4-6KW) |
Line Mode Specifications: |
| Input Voltage | Input Voltage Waveform | Sinusoidal (utility or generator) |
| Nominal Input Voltage | LV 120Vac | HV 230Vac |
| Low Line Disconnect | Normal:85Vac±4% Wide:80Vac±4% | Normal:184Vac±4% Wide:135Vac±4% |
| Low Line Re-connect | Normal:95Vac±4% Wide:85Vac±4% | Normal:194Vac±4% Wide:145Vac±4% |
| High Line Disconnect | Normal:136Vac±4% Wide:140Vac±4% | Normal:263Vac±4% Wide:263Vac±4% |
| High Line Re-connect | Normal:131Vac±4% Wide:135Vac±4% | Normal:253Vac±4% Wide:253Vac±4% |
| Max AC Input Voltage | 150Vrms | 270Vrms |
| Input Frequency | Nominal Input Frequency | 50Hz/ 60Hz (Auto detection) |
| Low Line Frequency Re-connect | 51+0.3Hz for 60Hz;
41+0.3Hz for 50Hz; |
| Low Line Frequency Disconnect | 50+0.3Hz for 60Hz;
40+0.3Hz for 50Hz; |
| High Line Frequency Re-connect | 64+0.3Hz for 60Hz;
54+0.3Hz for 50Hz; |
| High Line Frequency Disconnect | 65+0.3Hz for 60Hz;
55+0.3Hz for 50Hz; |
| main functions | Output Voltage Waveform | As same as Input Waveform |
| Over-Load Protection (SMPS load) | Air switch |
| Output Short Circuit Protection | Air switch |
| Max Bypass Overload Current | 40A/50A/80A |
Battery Invert Mode Specifications: |
| AC output | Output Voltage Waveform | Sine wave |
| Rated Output Power (KW) | LV:4KW/5KW/6KW | HV: 4KW/5KW/
6KW/7KW/8KW/10KW |
| Power Factor | 0.9~1.0 |
| Nominal Output Voltage (V) | LV:120Vac ±10%rms | HV:230Vac ±10%rms |
| Nominal Output Frequency (Hz) | 60Hz ± 0.3Hz
50Hz ± 0.3Hz |
| DC Voltage | Nominal DC Input Voltage | 24VDC/48VDC |
| DC Voltage range | 20-31.0Vdc for 24VDC
40-62.0Vdc for 48VDC |
| Low Battery Alarm | 21.0Vdc ± 0.6Vdc for 24V battery
42.0Vdc ± 1.2Vdc for 48V battery |
| Low DC input Shut-down | 20.0vdc± 0.6Vdc for 24V battery
40.0Vdc ± 1.2Vdc for 48V battery |
| High DC input Alarm & Fault | 32Vdc ± 0.6Vdc for 24V battery
64Vdc ± 1.2Vdc for 48V battery |
| High DC input Recovery | 31.0Vdc ± 0.6Vdc for 24V battery
62.0Vdc ± 1.2Vdc for 48V battery |
| AC Charger | Nominal Charge Current | 35A/50A/70A (5 stages adjustable charging current) |
| Charge Current Regulation | ± 5Adc |
| Over Charge Protection | Bat.V≥31.0VDC for 24V battery
Bat.V≥62.0VDC for 48V battery
beeps 0.5s every 1s & fault after 60s |
| Algorithm | Three stage: Boost CC (constant current stage) → Boost CV (constant voltage stage) → Float (constant voltage stage) |
| Solar charger | Rated Charge Current | 40A | 60A |
| Rated charge battery Voltage type | 24V/48V | 24V |
| Max.PV open circuit array voltage | 24V for 55Vdc
48V for 110Vdc |
| Charger mode | MPPT |
| PV Low Voltage Re-connect | PV≥Bat.V=3V |
| PV Low Voltage Disconnect | PV<=Bat.V |
| Efficiency | ≥97% |
| Efficiency | Efficiency (Battery Mode) | ≥85% |
| Efficiency (Line Mode) | >98% |
| Transfer Time | Ac to Dc | 20ms (Max) |
| Dc to Ac | 15ms (Max) |
| System parameter | Over-Load Protection | 110% 150%, beeps 0.5s every 1s, and Fault after 20s. |
| Output Short Circuit Protection | Current limit (Fault after 10s) |
| Surge rating (10s) | 1:3 (VA) |
| Power saver | Load <=25W (Enabled on "P/S auto" setting of Remote control) |
| Protections | Low battery, over charging, over load , over temp. |
| Indicators | LED+LCD Display |
| General Specifications | Operating Temperature Range | 0°C to 40°C |
| Storage temperature | -15ºC ~60ºC |
| Operation humidity | 5% to 95%(non-condensing) |
| Audible Noise | 60dB max |
| Cooling | Forced air, variable speed fan |
| Dimension(L*W*H) | 4KW | 5KW | 6KW | 7KW | 8KW | 10KW |
| 530*400*190mm | 590*420*195mm |
| Net weight(Kg) | 30.0 | 35.5 | 38.5 | 41.5 | 48.0 | 55.0 |

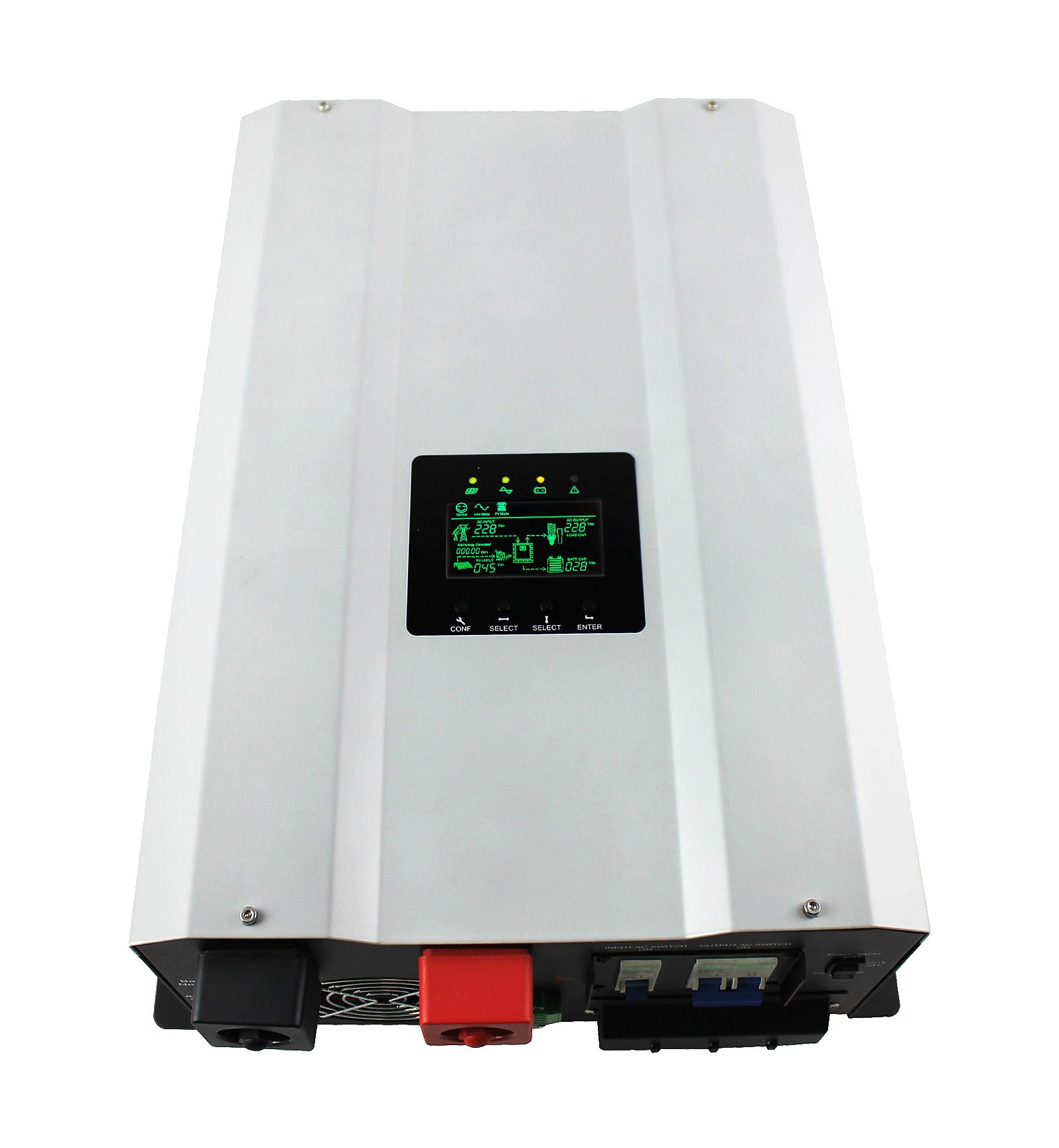

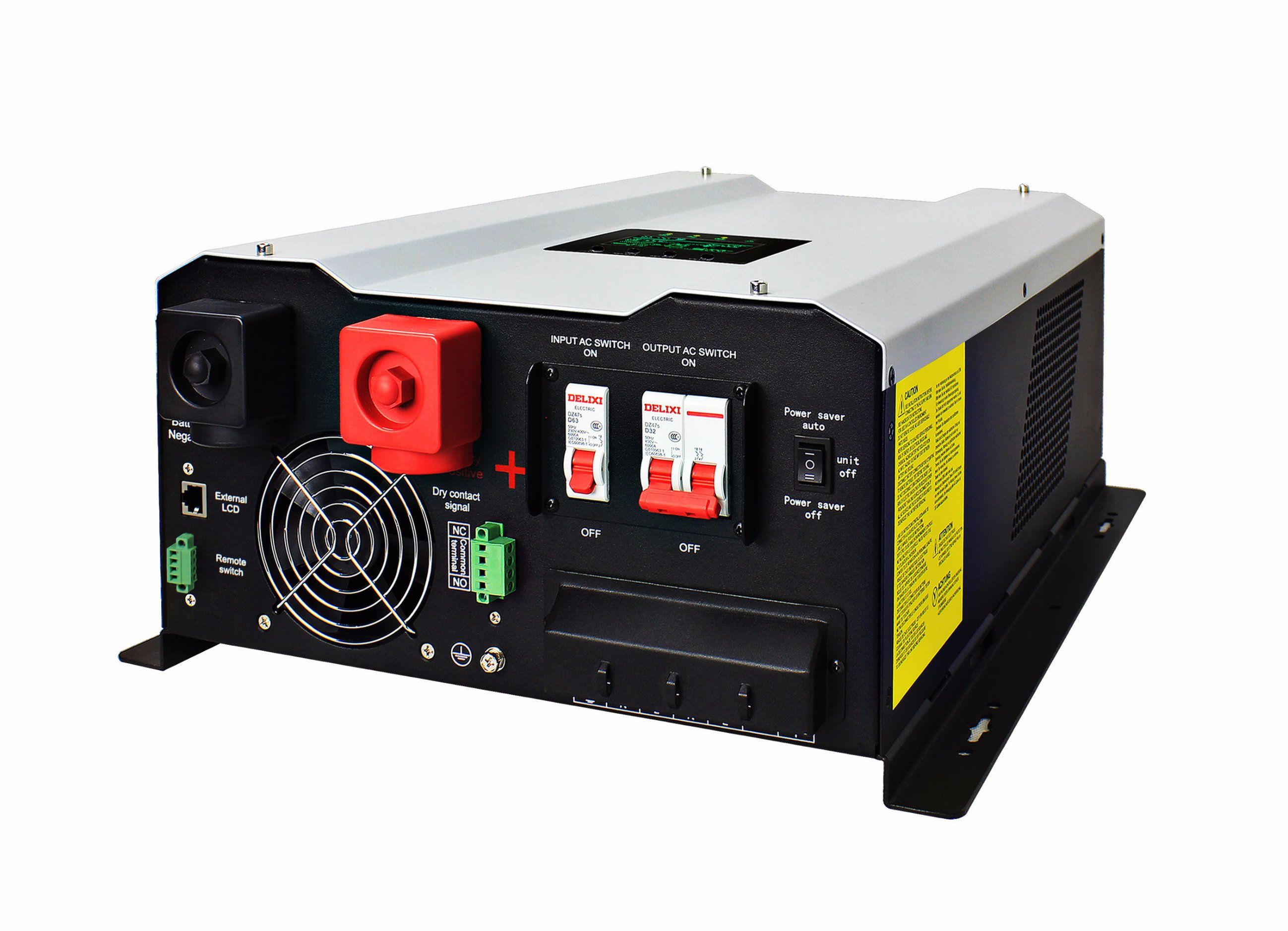

Photos
Why Choose Us1, the company professional to do Inverter, UPS and Battery products
2, the quality of ZLPower products are the top level
3, stable product quality , supply, the good faith management
About ZLPOWER
Founded in 2007, Shenzhen ZLPOWER Electronics Co., Ltd. (ZLPOWER for short) is a key hi-tech enterprise in state "Torch Plan, " integrating science, industry, trade, and investment into a whole. It has registered capital of RMB 10million, covering a floor area of 2000sq. M, and owning assets of RMB 30 million.
As a large-scale enterprise group with total assets exceeding RMB 30 million, it currently employs more than 300 staff, operates R & D institutions, 10 products lines, and 8 overseas branches and offices for sales and service.
Also as a professional uninterruptible power supply manufacturer in Shenzhen, China, ZLPOWER mainly produce high frequency online UPS, computer PC UPS, rack mount online UPS, low frequency Industry three phase UPS, UPS Inverter, solar inverter, solar charger controller, Solar/UPS Battery and other related products.
In ZLPOWER, we are strictly on quality inspections. We implement strict IOC, IPQC, FQC, OQC, QA, and other quality control measures in every process according to ISO9001, including to raw materials selection, production, package, and shipment.
Thus, we are ISO9001: 2008 and SGS certificated, and all our UPS, Inverter power supply products have been approved by CE (LVD/EMC), UL tests. As a result, they are popular among our customers from Italy, Germany, South Africa, Egypt, Mozambique, Nigeria, UAE, Ukraine, Russia, Uzbekistan, Philippines, Chili, Peru, Brazil, Mexico and more.
ZLPOWER is looking for agent worldwide to distribute our quality UPS system, Inverter power and solar products to their local markets. Any interests please welcome to contact us today and look for best power solution.
