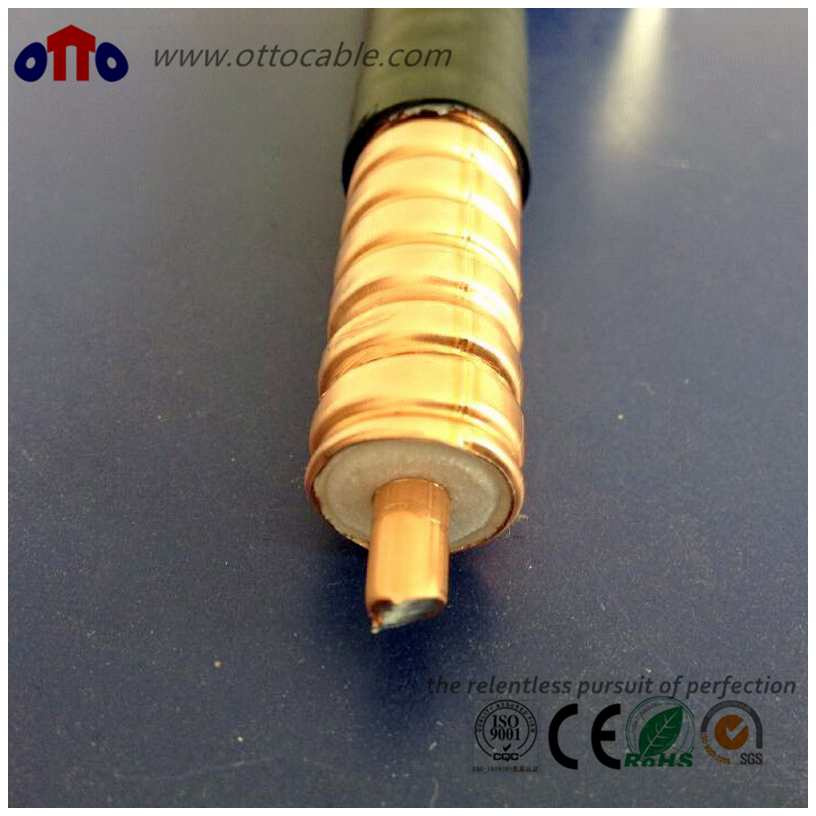

1/2" Corrugated RF Leaky Feeder Coaxial Cable

Price:	Negotiable/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	5000/Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	1/2" Corrugated Leaky Feeder Coaxial Cable
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Ottocable:	1/2" Corrugated Coaxial Cable
Inner Conductor:	4.8 Copper Clad Aluminum
Dielectric:	12.0 Foam PE
Shield:	13.9 Corrguated Copper Tube/ Al Tube
Jacket:	15.7 PVC
Application:	RF Cable
Cover Material:	PVC
Certification:	RoHS
Conductor Material:	Corrguated Copper Tube/ Al Tube
Type:	Corrugated Coaxial Cable
Wire Core Material:	Copper Clad Aluminum
Model:	1/2" Corrugated Coaxial Cable
Brand:	Ottocable

Product Description

1/2" RF Feeder Cable / Corrugated Cable/ Andrew Heliax Cable
1/2" RF feeder cable, 50Ohm, also be named as half inch coaxial cable, has pretty good performances, wish loss, great attenuation and PIM. Its assemblies usually fixed with N type connectors.
This 1/2" RF feeder cable and its assemblies are largely used on various antennas, cellphone/mobile phone signal boosters, repeaters. It's also suitable for GSM,CDMA ,PHS ,TD-SCDMA ,CDMA2000 and WCDMA and etc.

RF Feeder Cable 1/2"
Construction
Item	Material		Diameter(mm)
Inner Conductor	Copper Clad Aluminum		4.8
Dielectric	Foam PE		12.0
Shield	Corrguated Copper Tube/ Aluminum Tube		13.9
Jacket	PVC		15.7

Electrical Characteristics		Attenuation @20ºC (dB/100M)
Impedance(Ω)	50	@150MHz	2.7
Velocity of Propagation(%)	88	@200MHz	3.1
Return Loss(dB)	≥20	@300MHz	3.83
Capacitance	76	@450MHz	4.75
Shielding Effectiveness(dB)	≥90	@800MHz	6.46
Operating Temperature(ºC)	-30 to +70	@1000MHz	7.28

Company Link: http://ottoding.en.made-in-china.com/

Otto Cable Technology Co., Ltd. is a Hi-Tech enterprise specializes in researching, manufacturing and selling 50 Ohm & 75 Ohm coaxial cables, cable assemblies and other related products.

After decades of practical experience and technical skills, we have been very professional on these products, which covers:

1). Wireless RF Transmission coaxial cable, 50 Ohms RG MIL-C-17 and JIS Spec coaxial cables, mainly applying to 4G, 3G, GSM, and CDMA telecommunication system, digital microwave communication system, DAS, GPS and other car antenna system.

50 Ohm coaxial cable assemblies/pigtails/jumper cables/pre-made coax cables usually fixed with various connectors, such as N, SMA, SMB, MCX, MMCX, TNC, BNC, UHF...

2). 75 Ohms RG MIL-C-17 Spec coaxial cables, CCTV, CATV-MATV coaxial cable, satellite coaxial cable, video coaxial cable, which are serving for existing and next generation TV network and security monitoring and control systems.

Besides of the standard coaxial cables, customer required cables and value-added services are also available in our company.
