1.2 Degree NEMA24 DC Stepper Motor

Name: 1.2 Degree NEMA24 DC Stepper Motor
Brand: all-electronics-online.com
SKU: 678489232
Availability: InStock
Rating: 4.6 (114 reviews)

Price:	US $ 11.9-20/Piece
Trade Terms:	FOB,CFR,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	24HT
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Step Angle:	1.2
Hold Torque:	up to 160 N.Cm
Phase:	3 Phase
Current:	3-4.6A
Motor Body Length:	41mm, 51mm, 56mm, 64mm, 76mm, 90mm
Shaft:	6.35mm Dia, 21mm Length, Can Customized
Connectors:	Can with Connectors, 4 or 6 Lead Wires
Step Angle Accuracy:	±5% Full Step
Resistrance Accurancy:	±10
Ambient Temperature:	: -20° - +50°
Number Of Stator:	Three-Phase
Excitation Mode:	HB-Hybrid
Type:	Magnetic-Electric
Brand:	Leison Motor

Product Description

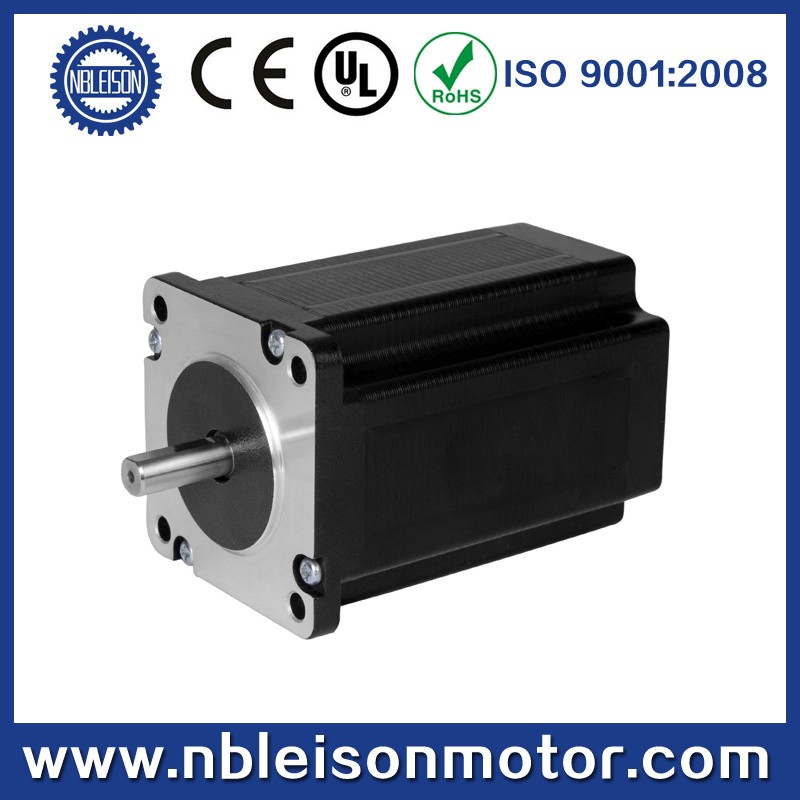

NEMA 24 Stepper Motor:

1. Professional manfacuturer for stepper motor, We have different type NEMA8, NEMA11. NEMA14, NEMA16 NEMA17, NEMA23, NEMA34, NEMA42.
2.1.8 degree, 0.9 degree. 3.6 degree, 1.2 degree, Single shaft or double shaft, D-cut or round shaft
3. Customized lead wires length and connectors are also acceptable

Model	Step Angle (° )	Motor Length (mm)	Rated Current (A)	Phase Resistance (Ω )	Phase Inductance (mH)	Holding Torque (N. cm Min)	Detent Torque (N. cmMax)	Rotor Inertia (g. cm 2 )	Lead Wire (No. )	Motor Weight (g)
24HT6335	1.2	54	3.5	0.8	1.8	80	3.5	280	3	580
24HT6346	1.2	54	4.6	0.5	0.8	80	3.5	280	3	580
24HT7335	1.2	64	3.5	1.0	2.5	110	5.0	380	3	850
24HT7346	1.2	64	4.6	0.7	1.2	110	5.0	380	3	850
24HT8335	1.2	76	3.5	1.2	3.2	130	6.5	440	3	1150
24HT8346	1.2	76	4.6	0.8	1.5	130	6.5	440	3	1150
24HT1335	1.2	90	3.5	1.5	4.5	160	8	580	3	1400
24HT1346	1.2	90	4.6	1.0	2.5	160	8	580	3	1400

Note: The datesheet is only for reference, We can produce the customized motors according to your requiremnt, Fell free to conact with me if you want specifiations or have any questions.
More information about our company:

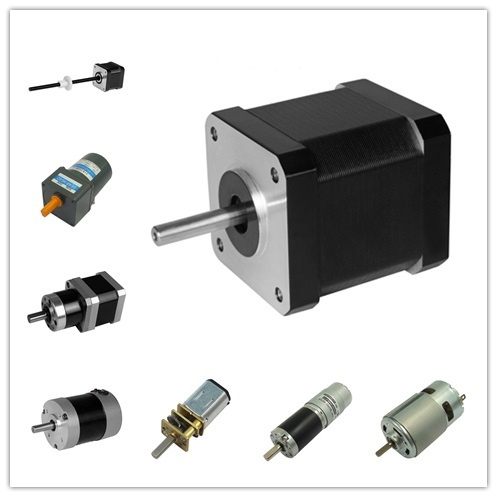

1. Motor photo

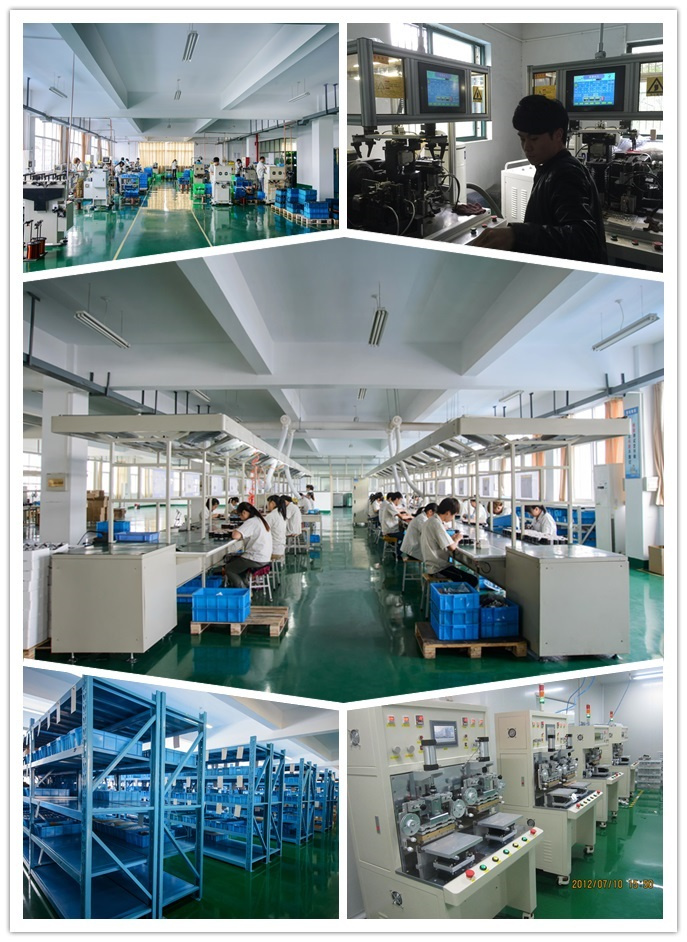

2. Production line and Equipment

3 Certificates

4 Customer vist and Exhibitions

5 Packing:

Ningbo Leison Motor Co. Ltd is a manufacturer and exporter of virious of motors,

Our Product range are:

DC Brush motor: 6-130mm diameter, 0.01-1500W output power.

DC Spur Gear Motor: 12-110mm diameter, 0.1-300W output power

DC Planeary Gear Motor: 10-82mm diameter, 0.1-1000W output power

Brushless DC Motor: 28-110mm, 5-1000W output power

Stepper Motor: NEMA 08 to NEMA 43, Can with gearox and lead screw

AC Gear Motor: 49 to 100mm diameter, 6-140 output power

Compare with other competitors, Our advantages are:

1) High Quality Guarantee: 10 years experiences in this field makes us have mature manufacturing process, Most of motors have CE, RoHS marks.

2) Competitive Price: We have a very high competitive ability of the list prices based on low cost labour force in China.

3) Good Service: LEISON MOTOR sales are professional and with good attitude, We will response with our customer within 24 hours(Holiday excepted), So you don' T need way about can' T not find the person when have agent things.

4) On Time Delivery: The delay delivery always are a headache problem for most of buyers, Our technical team and sales team make us can promise about 95% delivery on time.

5) Customized requirement: Beside normal products, We also design the motors according to customer requirement. Meanwhlile our MOQ is very low, (Even 1PC for some motors).

Still need more reasons? Now begin business with LEISON MOTOR, You will find we are a reliable and trustworthy in China.
