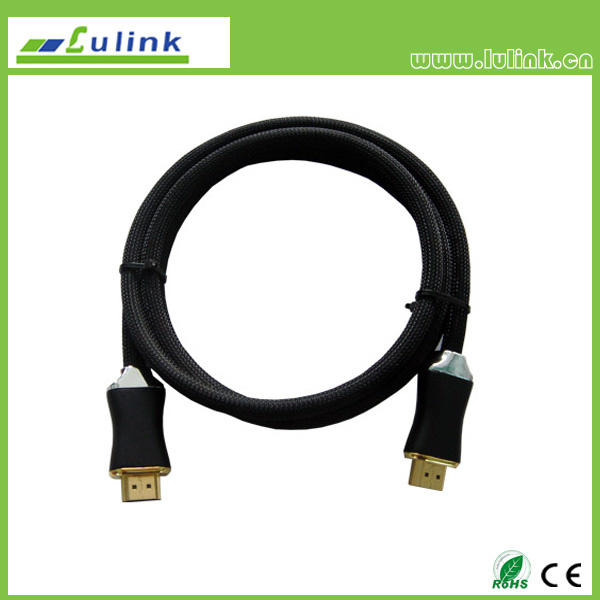

1.3 Ver 1.4 Ver HDMI Cable M/M

Prod Model:	LK-HDCB015-2
Connector:	Gold Plated or Nickel
Conductor:	Copper
Shell Material:	Aluminum Alloy
Shell Color:	Blue, Red, Gold, Silver
Test:	100% Open and Short Test

Product Description

LK-HDCB001
HDMI M to M Cable
Specifications:
Solid Color HDMI cable, 19PIN M/M
24K gold plated or nickel plated connectors
PE inner mold, gold-plated copper shell
PVC injection molding the outer mold
bare copper conductor, braided aluminum-magnesium wire
Cable specification :
1.3 Ver.
UL20276 30(28/26/24)#(1P+D+A+MY)*4P+1P+5C+AB+Jacket
or UL20276 30#(1P+A+MY)* 4P+1P+5C+AD+Jacket   OD:6.0MM or 7.3MM
1.4 Ver.
UL20276 30#
(0.254BC*1P+0.23BC+A+MY)*5P+0.23BC*1P+0.23BC*2C+ADB+Jacket  OD6.0MM 112B
UL20276 30#
(0.23BC*1P+0.23BC+A+MY)*5P+0.23BC*1P+0.23BC*2C+ADB+Jacket  OD7.3MM 112B
UL20276 28#
(0.32*1P+0.32*D+A+MY)*5P+0.32*1P+0.32*2C+ADB+Jacket,OD7.3MM, 128B
UL20276 28#
(0.32*1P+0.254*D+A+MY)*5P+0.254*1P+0.254*2C+ADB+Jacket,OD7.3MM, 128B
Support: 1.3c/1.4 version, 1080P/1440P,10.2GGbps/15.2Gbps, 3DTV,Ethernet
Features:
High Speed with Ethernet,Audio Ruturn Channel,Supports 3D,4K x 2K Video and more color spare
A premium quality version 1.3c/1.4 HDMI to HDMI cable is suitable for use in 3D HDTV,home theater,DVD player,PS3,Xbox360,Setbox and other HDMI devices
High density triple shielding for maximum rejection of EMI and RFI
Compatible with multiple audio formats from stereo to multichannel sound
Transfer digital audio and video signals at warp speed of 15.2GB per second
Electrical:
100% open and short test
Voltage: 300V DC, 5MΩ/10ms
Insulation resistance: 10MΩ minimum
Contact resistance: 2Ω maximum
Working temperature: -25 to 80 degree Celsius
Package:
Polybag,Bubble blister


LK-HDCB001-AD
Micro type HDMI M to M Cable
Specifications:
Solid Color Micro type A TO D HDMI M to M Cable, 19PIN M/M
24K gold plated or nickel plated connectors
PE inner mold, gold-plated copper shell
PVC injection molding the outer mold , color black
bare copper conductor, braided aluminum-magnesium wire
Cable specification :
1.4 Ver.
32AWG(7/0.067TC*1P+D+A+MY)*5P+7/0.08TC*1P+7/0.08TC*2C+AL/MY+7/0.08TC+16/5*0.08TC PVC Jacket OD4.2MM
Support: 1.3c/1.4 version, 1080P/1440P,10.2GGbps/15.2Gbps, 3DTV,Ethernet
Features:
Where we use HDMI type D:
Mobile phones, portable media players, digital cameras, or any portable device where space is at a premium and HDMI quality is desired
What is HDMI type D:
Type D connector designed for cell phones, pocket cameras, and other portable devices where space is at a premium
Roughly the size of a micro USB connector, it packs all the power and functionality of an HDMI link into a tiny form factor
Featuring a full nineteen-pin array like other HDMI connectors, the HDMI micro connector can handle video signals up to 1,080p, bringing state-of-the-art HD resolutions to the realm of handheld devices This new connector is approximately 50% smaller than the size of the existing HDMI mini connector
Electrical:
100% open and short test
Voltage: 300V DC, 5MΩ/10ms
Insulation resistance: 10MΩ minimum
Contact resistance: 2Ω maximum
Working temperature: -25 to 80 degree Celsius
Package:
Polybag ,Bubble blister


HDMI cable
LK-CB001-CC
Mini type HDMI M to M Cable
Specifications:
Dual Color Mini type C TO C HDMI M to M Cable, 19PIN M/M
24K gold plated or nickel plated connectors
PE inner mold, gold-plated copper shell
PVC injection molding the outer mold , color have red & black and orange& black and yellow& black
bare copper conductor, braided aluminum-magnesium wire
Cable specification :
1.3 Ver.
UL20276 30#(1P+D+A+MY)*4P+1P+5C+AB+Jacket   OD6.0MM
1.4 Ver.
UL20276 AWG (1P +D +AL +MY) x 5 +4C +AEB OD6.0MM
Support: 1.3c/1.4 version, 1080P/1440P,10.2GGbps/15.2Gbps, 3DTV,Ethernet
Features:
High Speed with Ethernet,Audio Ruturn Channel,Supports 3D,4K x 2K Video and more color spare
A premium quality version 1.3c/1.4 HDMI to HDMI cable is suitable for use in 3D HDTV,home theater,DVD player,PS3,Xbox360,Setbox and other HDMI devices
With nylon protection layer protect cable from abrasion
High density triple shielding for maximum rejection of EMI and RFI
Compatible with multiple audio formats from stereo to multichannel sound
Transfer digital audio and video signals at warp speed of 15.2GB per second
Electrical:
100% open and short test
Voltage: 300V DC, 5MΩ/10ms
Insulation resistance: 10MΩ minimum
Contact resistance: 2Ω maximum
Working temperature: -25 to 80 degree Celsius
Package:
Polybag,Bubble blister


LK-HDCB002
HDMI M to M Cable
Specifications:
Metal casing type HDMI cable, 19PIN M/M
24K gold plated or nickel plated connectors
PE inner mold, gold-plated copper shell
Aluminum alloy outer mold , shell color have blue,red,gold,silver
bare copper conductor, braided aluminum-magnesium wire
Cable specification :
1.3 Ver.
UL20276 30(28/26)#(1P+D+A+MY)*4P+1P+5C+AB+Jacket
or UL20276 30#(1P+A+MY)* 4P+1P+5C+AD+Jacket   OD:6.0MM or 7.3MM
1.4 Ver.
UL20276 30#
(0.254BC*1P+0.23BC+A+MY)*5P+0.23BC*1P+0.23BC*2C+ADB+Jacket  OD6.0MM 112B
UL20276 30#
(0.23BC*1P+0.23BC+A+MY)*5P+0.23BC*1P+0.23BC*2C+ADB+Jacket  OD7.3MM 112B
UL20276 28#
(0.32*1P+0.32*D+A+MY)*5P+0.32*1P+0.32*2C+ADB+Jacket,OD7.3MM, 128B
UL20276 28#
(0.32*1P+0.254*D+A+MY)*5P+0.254*1P+0.254*2C+ADB+Jacket,OD7.3MM, 128B
Support: 1.3c/1.4 version, 1080P/1440P,10.2GGbps/15.2Gbps, 3DTV,Ethernet
Features:
High Speed with Ethernet, Audio Ruturn Channel,Supports 3D,4K x 2K Video and more color spare
A premium quality version 1.3c/1.4 HDMI to HDMI cable is suitable for use in 3D HDTV,home theater,DVD player,PS3,Xbox360,Setbox and other HDMI devices
High density triple shielding for maximum rejection of EMI and RFI
Compatible with multiple audio formats from stereo to multichannel sound
Transfer digital audio and video signals at warp speed of 15.2GB per second
Electrical:
100% open and short test
Voltage: 300V DC, 5MΩ/10ms
Insulation resistance: 10MΩ minimum
Contact resistance: 2Ω maximum
Working temperature: -25 to 80 degree Celsius
Package:
Polybag,Bubble blister


LK-HDCB002-AD
Micro type HDMI M to M Cable
Specifications:
Metal casing type Micro type A TO D HDMI M to M Cable, 19PIN M/M
24K gold plated or nickel plated connectors
PE inner mold, gold-plated copper shell
Aluminum alloy outer mold , shell color have blue,red,gold,silver
bare copper conductor, braided aluminum-magnesium wire
Cable specification :
1.4 Ver.
32AWG(7/0.067TC*1P+D+A+MY)*5P+7/0.08TC*1P+7/0.08TC*2C+AL/MY+7/0.08TC+16/5*0.08TC PVC Jacket OD4.2MM
Support: 1.3c/1.4 version, 1080P/1440P,10.2GGbps/15.2Gbps, 3DTV,Ethernet
Features:
Where we use HDMI type D:
Mobile phones, portable media players, digital cameras, or any portable device where space is at a premium and HDMI quality is desired
What is HDMI type D:
Type D connector designed for cell phones, pocket cameras, and other portable devices where space is at a premium
Roughly the size of a micro USB connector, it packs all the power and functionality of an HDMI link into a tiny form factor
Featuring a full nineteen-pin array like other HDMI connectors, the HDMI micro connector can handle video signals up to 1,080p, bringing state-of-the-art HD resolutions to the realm of handheld devices This new connector is approximately 50% smaller than the size of the existing HDMI mini connector
Electrical:
100% open and short test
Voltage: 300V DC, 5MΩ/10ms
Insulation resistance: 10MΩ minimum
Contact resistance: 2Ω maximum
Working temperature: -25 to 80 degree Celsius
Package:
Polybag ,Bubble blister


LK-HDCB002-AD
1.4 Ver.
HDMI  M to micro HDMI M  Cable
PE inner mold, gold-plated copper shell
PVC injection tail mold +silver Aluminum alloy shell
Conductor: tinned copper/ braided tinned copper
HDMI1.4
3 layers shield standard wire gauge:
UL20276 HDMI black wire of the half light and half fog,OD4.2mm,(7/0.067TC*1P+D+A+MY)*5P+7/0.08TC*1P+7/0.08TC*2C+AL/MY+7/0.08TC+16/5*0.08TC PVC Jacket


LK-HDCB003
Specifications:
Dual Color molding type HDMI cable, 19PIN M/M
24K gold plated or nickel plated connectors
PE inner mold, gold-plated copper shell
PVC injection molding the outer mold
bare copper conductor, braided aluminum-magnesium wire
Cable specification: UL20276 28/26/24
#(1P+D+A+MY)*5P+1P+3C+AB+Jacket,
Support: 1.3c/1.4 version, 1080P/1440P,10.2GGbps/15.2Gbps, 3DTV, Ethernet
Features:
High Speed with Ethernet, Audio Return Channel, Supports 3D, 4K x 2K Video and more color spare
A premium quality version 1.3c/1.4 HDMI to HDMI cable is suitable for use in 3D HDTV, home theater, DVD player, PS3, Xbox360, Set box and other HDMI devices
High density triple shielding for maximum rejection of EMI and RFI
Compatible with multiple audio formats from stereo to multichannel sound
Transfer digital audio and video signals at warp speed of 15.2GB per second
Electrical:
100% open and short test
Voltage: 300V DC, 5MΩ/10ms
Insulation resistance: 10MΩ minimum
Contact resistance: 2Ω maximum
Working temperature: -25 to 80 degree Celsius
Package:
Poly bag, Bubble blister


LK-HDCB003-AD
1.4 Ver.
1.4V ,HDMI TYPE A TO TYPE D/
OD=5.5MM/
black moulding/
PE bag packing
0.23Copper,96AL Braid
standard (1/0.23BC*1P+0.23BC+AL)*5P+1/0.23BC*1P+1/0.23BC*2C+ADB+JACKET


LK-HDCB004
HDMI M to M Cable
Specifications:
Metal casing type HDMI cable, 19PIN M/M
24K gold plated or nickel plated connectors
PE inner mold, gold-plated copper shell
Chromium metal casing outer mold, shell color gold
bare copper conductor, braided aluminum-magnesium wire
Cable specification :
1.3 Ver.
UL20276 30(28/26)#(1P+D+A+MY)*4P+1P+5C+AB+Jacket
or UL20276 30#(1P+A+MY)* 4P+1P+5C+AD+Jacket   OD:6.0MM or 7.3MM
1.4 Ver.
UL20276 30#
(0.254BC*1P+0.23BC+A+MY)*5P+0.23BC*1P+0.23BC*2C+ADB+Jacket  OD6.0MM 112B
UL20276 30#
(0.23BC*1P+0.23BC+A+MY)*5P+0.23BC*1P+0.23BC*2C+ADB+Jacket  OD7.3MM 112B
UL20276 28#
(0.32*1P+0.32*D+A+MY)*5P+0.32*1P+0.32*2C+ADB+Jacket,OD7.3MM, 128B
UL20276 28#
(0.32*1P+0.254*D+A+MY)*5P+0.254*1P+0.254*2C+ADB+Jacket,OD7.3MM, 128B
Support: 1.3c/1.4 version, 1080P/1440P,10.2GGbps/15.2Gbps, 3DTV,Ethernet
Features:
High Speed with Ethernet,Audio Ruturn Channel,Supports 3D,4K x 2K Video and more color spare
A premium quality version 1.3c/1.4 HDMI to HDMI cable is suitable for use in 3D HDTV,home theater,DVD player,PS3,Xbox360,Setbox and other HDMI devices
High density triple shielding for maximum rejection of EMI and RFI
Compatible with multiple audio formats from stereo to multichannel sound
Transfer digital audio and video signals at warp speed of 15.2GB per second
Electrical:
100% open and short test
Voltage: 300V DC, 5MΩ/10ms
Insulation resistance: 10MΩ minimum
Contact resistance: 2Ω maximum
Working temperature: -25 to 80 degree Celsius
Package:
Polybag,Bubble blister


LK-HDCB005
HDMI M to M Cable
Specifications:
Metal casing type HDMI cable, 19PIN M/M
24K gold plated or nickel plated connectors
PE inner mold, gold-plated copper shell
V-type Chromium metal casing outer mold, shell color Silver,Gold,Nickel
bare copper conductor, braided aluminum-magnesium wire
Cable specification :
1.3 Ver.
UL20276 30(28/26)#(1P+D+A+MY)*4P+1P+5C+AB+Jacket
or UL20276 30# (1P+A+MY)*4P+1P+7C+AD+Jacket
1.4 Ver.
UL20276 30/28#(1P+D+A+MY)*5P+4C+AEB+Jacket
Support: 1.3c/1.4 version, 1080P/1440P,10.2GGbps/15.2Gbps, 3DTV,Ethernet
OD:7.2mm or 8.2mm
Features:
High Speed with Ethernet,Audio Ruturn Channel,Supports 3D,4K x 2K Video and more color spare
A premium quality version 1.3c/1.4 HDMI to HDMI cable is suitable for use in 3D HDTV,home theater,DVD player,PS3,Xbox360,Setbox and other HDMI devices
High density triple shielding for maximum rejection of EMI and RFI
Compatible with multiple audio formats from stereo to multichannel sound
Transfer digital audio and video signals at warp speed of 15.2GB per second
Electrical:
100% open and short test
Voltage: 300V DC, 5MΩ/10ms
Insulation resistance: 10MΩ minimum
Contact resistance: 2Ω maximum
Working temperature: -25 to 80 degree Celsius
Package:
Polybag,Bubble blister


LK-HDCB005
1.3 Ver.
HDMI cable M/M
PE inner mold, gold-plated copper shell
connector end with PVC injection
V-type zinc-alloy pearl chrome assembly
bare copper conductor, AL+MA braid
HDMI1.3version1080P
3 layers shield standard wire gauge:
UL20276 30(2/,26)#(1P+D+A+MY)*4P+1P+5C+AB+Jacket
2 layers shield non-standard wire gauge:
UL20276 30# (1P+A+MY)*4P+1P+7C+AD+Jacket
1.4 Ver.
HDMI cable M/M
PE inner mold, gold-plated copper shell
connector end with PVC injection
V-type zinc-alloy pearl chrome assembly
bare copper conductor, AL+MA braid
HDMI1.3version1080P
HDMI1.4version
3 layers shield standard wire gauge:
UL20276 30/28#(1P+D+A+MY)*5P+4C+AEB+Jacket


LK-HDCB006
HDMI M to M Cable
Specifications:
Metal casing type HDMI cable, 19PIN M/M
24K gold plated or nickel plated connectors
PE inner mold, gold-plated copper shell
With HDMI LOGO
Chromium metal casing outer mold, shell color Silver,Gold,Nickel
bare copper conductor, braided aluminum-magnesium wire
Cable specification :
1.3 Ver.
UL20276 30(28/26)#(1P+D+A+MY)*4P+1P+5C+AB+Jacket
or UL20276 30#(1P+A+MY)* 4P+1P+5C+AD+Jacket   OD:6.0MM or 7.3MM
1.4 Ver.
UL20276 30#
(0.254BC*1P+0.23BC+A+MY)*5P+0.23BC*1P+0.23BC*2C+ADB+Jacket  OD6.0MM 112B
UL20276 30#
(0.23BC*1P+0.23BC+A+MY)*5P+0.23BC*1P+0.23BC*2C+ADB+Jacket  OD7.3MM 112B
UL20276 28#
(0.32*1P+0.32*D+A+MY)*5P+0.32*1P+0.32*2C+ADB+Jacket,OD7.3MM, 128B
UL20276 28#
(0.32*1P+0.254*D+A+MY)*5P+0.254*1P+0.254*2C+ADB+Jacket,OD7.3MM, 128B
Support: 1.3c/1.4 version, 1080P/1440P,10.2GGbps/15.2Gbps,
Features:
High Speed with Ethernet,Audio Ruturn Channel,Supports 3D,4K x 2K Video and more color spare
A premium quality version 1.3c/1.4 HDMI to HDMI cable is suitable for use in 3D HDTV,home theater,DVD player,PS3,Xbox360,Setbox and other HDMI devices
High density triple shielding for maximum rejection of EMI and RFI
Compatible with multiple audio formats from stereo to multichannel sound
Transfer digital audio and video signals at warp speed of 15.2GB per second
Electrical:
100% open and short test
Voltage: 300V DC, 5MΩ/10ms
Insulation resistance: 10MΩ minimum
Contact resistance: 2Ω maximum
Working temperature: -25 to 80 degree Celsius
Package:
Polybag,Bubble blister


LK-HDCB006-2
1.3 Ver.
HDMI cable M/M
PE inner mold, gold-plated copper shell
connector end with PVC injection
Elliptic zinc alloys black chrome assembly
bare copper conductor, AL+MA braid
HDMI1.3version1080P
3 layers shield standard wire gauge:
  UL20276 30(28/26)#(1P+D+A+MY)*4P+1P+5C+AB+Jacket
2 layers shield non-standard wire gauge:UL20276 30#(1P+A+MY)*
  4P+1P+6C+AD+Jacket
1.4Ver.
HDMI cable M/M      Cotton net is available
PE inner mold, gold-plated copper shell   Cotton net is available
PVC outer mold injection +Zinc Alloy
HDMI LOGO changeable
bare copper conductor, AL+MA braid
HDMI1.4
3 layers shield standard wire gauge:
1.UL20276 30#
(0.254BC*1P+0.23BC+A+MY)*5P+0.23BC*1P+0.23BC*2C+ADB+Jacket  OD6.0MM 112B
2. UL20276 30#
(0.23BC*1P+0.23BC+A+MY)*5P+0.23BC*1P+0.23BC*2C+ADB+Jacket  OD7.3MM 112B
3. UL20276 (28#)
 (0.32*1P+0.32*D+A+MY)*5P+0.32*1P+0.32*2C+ADB+Jacket,        OD7.3MM, 128B
4. UL20276 (28#)
(0.32*1P+0.254*D+A+MY)*5P+0.254*1P+0.254*2C+ADB+Jacket,
OD7.3MM, 128B


LK-HDCB007
HDMI M to M Cable
Specifications:
Solid Color HDMI cable, 19PIN M/M
24K gold plated or nickel plated connectors
PE inner mold, gold-plated copper shell
PVC injection molding the outer mold
With HDMI LOGO
bare copper conductor, braided aluminum-magnesium wire
Cable specification :
1.3 Ver.
UL20276 30(28/26)#(1P+D+A+MY)*4P+1P+5C+AB+Jacket
or UL20276 30#(1P+A+MY)* 4P+1P+5C+AD+Jacket   OD:6.0MM or 7.3MM
1.4 Ver.
UL20276 30/28#(1P+D+A+MY)*5P+4C+AEB+Jacket
OD: 7.3mm or 8.2mm
Support: 1.3c/1.4 version, 1080P/1440P,10.2GGbps/15.2Gbps, 3DTV,Ethernet
Features:
High Speed with Ethernet,Audio Ruturn Channel,Supports 3D,4K x 2K Video and more color spare
A premium quality version 1.3c/1.4 HDMI to HDMI cable is suitable for use in 3D HDTV,home theater,DVD player,PS3,Xbox360,Setbox and other HDMI devices
High density triple shielding for maximum rejection of EMI and RFI
Compatible with multiple audio formats from stereo to multichannel sound
Transfer digital audio and video signals at warp speed of 15.2GB per second
Electrical:
100% open and short test
Voltage: 300V DC, 5MΩ/10ms
Insulation resistance: 10MΩ minimum
Contact resistance: 2Ω maximum
Working temperature: -25 to 80 degree Celsius
Package:
Polybag,Bubble blister


LK-HDCB008
HDMI M to M Cable
Specifications:
Metal casing type HDMI cable, 19PIN M/M
24K gold plated or nickel plated connectors
PE inner mold, gold-plated copper shell
With HDMI LOGO
V-type Chromium metal casing outer mold, shell color Silver,Gold,Nickel
bare copper conductor, braided aluminum-magnesium wire
Cable specification :
1.3 Ver.
UL20276 30(28/26)#(1P+D+A+MY)*4P+1P+5C+AB+Jacket
or UL20276 30# (1P+A+MY)*4P+1P+7C+AD+Jacket
1.4 Ver.
UL20276 30/28#(1P+D+A+MY)*5P+4C+AEB+Jacket
Support: 1.3c/1.4 version, 1080P/1440P,10.2GGbps/15.2Gbps, 3DTV,Ethernet
OD:7.3mm
Features:
High Speed with Ethernet,Audio Ruturn Channel,Supports 3D,4K x 2K Video and more color spare
A premium quality version 1.3c/1.4 HDMI to HDMI cable is suitable for use in 3D HDTV,home theater,DVD player,PS3,Xbox360,Setbox and other HDMI devices
High density triple shielding for maximum rejection of EMI and RFI
Compatible with multiple audio formats from stereo to multichannel sound
Transfer digital audio and video signals at warp speed of 15.2GB per second
Electrical:
100% open and short test
Voltage: 300V DC, 5MΩ/10ms
Insulation resistance: 10MΩ minimum
Contact resistance: 2Ω maximum
Working temperature: -25 to 80 degree Celsius
Package:
Polybag,Bubble blister


LK-HDCB009
HDMI M to M Cable
Specifications:
Metal casing type HDMI cable, 19PIN M/M
24K gold plated or nickel plated connectors
PE inner mold, gold-plated copper shell
Chromium metal casing outer mold, shell color silver
bare copper conductor, braided aluminum-magnesium wire
Cable specification :
1.3 Ver.
UL20276 30(28/26)#(1P+D+A+MY)*4P+1P+5C+AB+Jacket
or UL20276 30#(1P+A+MY)* 4P+1P+5C+AD+Jacket   OD:6.0MM or 7.3MM
1.4 Ver.
UL20276 30/28#(1P+D+A+MY)*5P+4C+AEB+Jacket
Support: 1.3c/1.4 version, 1080P/1440P,10.2GGbps/15.2Gbps, 3DTV,Ethernet
Features:
High Speed with Ethernet,Audio Ruturn Channel,Supports 3D,4K x 2K Video and more color spare
A premium quality version 1.3c/1.4 HDMI to HDMI cable is suitable for use in 3D HDTV,home theater,DVD player,PS3,Xbox360,Setbox and other HDMI devices
High density triple shielding for maximum rejection of EMI and RFI
Compatible with multiple audio formats from stereo to multichannel sound
Transfer digital audio and video signals at warp speed of 15.2GB per second
Electrical:
100% open and short test
Voltage: 300V DC, 5MΩ/10ms
Insulation resistance: 10MΩ minimum
Contact resistance: 2Ω maximum
Working temperature: -25 to 80 degree Celsius
Package:
 Polybag,Bubble blister


HDCB009
1.3Ver.
HDMI cable M/M
PE inner mold, gold-plated copper shell
Pearl chrome nut assembly of Zinc Alloy
bare copper conductor, AL+MA braid
HDMI1.3version1080P
3 layers shield standard wire gauge:
UL20276 30(28/26)#
(1P+D+A+MY)*4P+1P+5C+AB+Jacket
2 layers shield non-standard wire gauge:
UL20276 30#(1P+A+MY)*4P+1P+10C+AD+Jacket
1.4 Ver.
HDMI cable M/M
PE inner mold, gold-plated copper shell
Zinc Alloy assembly, a small oval of black chrome / full-metal-plated pearl chrome shell assembly
bare copper conductor, AL+MA braid
HDMI1.4version
3 layers shield standard wire gauge:
UL20276 30/28#
(1P+D+A+MY)*5P+4C+AEB+Jacket


LK-HDCB010
HDMI M to M Cable
Specifications:
Metal casing type HDMI cable, 19PIN M/M
24K gold plated or nickel plated connectors
PE inner mold, gold-plated copper shell
Black Chromium metal casing outer mold
bare copper conductor, braided aluminum-magnesium wire
Cable specification :
1.3 Ver.
UL20276 30(28/26)#(1P+D+A+MY)*4P+1P+5C+AB+Jacket
or UL20276 30#(1P+A+MY)* 4P+1P+5C+AD+Jacket   OD:6.0MM or 7.3MM
1.4 Ver.
UL20276 30/28#(1P+D+A+MY)*5P+4C+AEB+Jacket
Support: 1.3c/1.4 version, 1080P/1440P,10.2GGbps/15.2Gbps, 3DTV,Ethernet
Features:
High Speed with Ethernet,Audio Ruturn Channel,Supports 3D,4K x 2K Video and more color spare
A premium quality version 1.3c/1.4 HDMI to HDMI cable is suitable for use in 3D HDTV,home theater,DVD player,PS3,Xbox360,Setbox and other HDMI devices
High density triple shielding for maximum rejection of EMI and RFI
Compatible with multiple audio formats from stereo to multichannel sound
Transfer digital audio and video signals at warp speed of 15.2GB per second
Electrical:
100% open and short test
Voltage: 300V DC, 5MΩ/10ms
Insulation resistance: 10MΩ minimum
Contact resistance: 2Ω maximum
Working temperature: -25 to 80 degree Celsius
Package:
Polybag, Bubble blister


LK-HDCB011
HDMI M to M Cable
Specifications:
Dual Color molding type HDMI cable, 19PIN M/M
24K gold plated or nickel plated connectors
PE inner mold, gold-plated copper shell
PVC injection molding the outer mold, color have white &  purple,white & red,white & orange,white & yellow
With HDMI LOGO
bare copper conductor, braided aluminum-magnesium wire
Cable specification:
UL20276 30(28/26)#(1P+D+A+MY)*4P+1P+5C+AB+Jacket
Or UL20276 30#(1P+A+MY)*4P+1P+5C+AD+Jacket
Support: 1.3c/1.4 version, 1080P/1440P,10.2GGbps/15.2Gbps, 3DTV,Ethernet
Features:
High Speed with Ethernet,Audio Ruturn Channel,Supports 3D,4K x 2K Video and more color spare
A premium quality version 1.3c/1.4 HDMI to HDMI cable is suitable for use in 3D HDTV,home theater,DVD player,PS3,Xbox360,Setbox and other HDMI devices
High density triple shielding for maximum rejection of EMI and RFI
Compatible with multiple audio formats from stereo to multichannel sound
Transfer digital audio and video signals at warp speed of 15.2GB per second
Electrical:
100% open and short test
Voltage: 300V DC, 5MΩ/10ms
Insulation resistance: 10MΩ minimum
Contact resistance: 2Ω maximum
Working temperature: -25 to 80 degree Celsius
Package:
Polybag,Bubble blister


LK-HDCB012
HDMI M to M Cable
Specifications:
Dual Color molding type HDMI cable, 19PIN M/M
24K gold plated or nickel plated connectors
PE inner mold, gold-plated copper shell
PVC injection molding the outer mold, color have white &  purple and different color
bare copper conductor, braided aluminum-magnesium wire
Cable specification:
1.3 Ver.
UL20276 30(28/26)#(1P+D+A+MY)*4P+1P+5C+AB+Jacket
or UL20276 30#(1P+A+MY)* 4P+1P+5C+AD+Jacket   OD:6.0MM or 7.3MM
1.4 Ver.
UL20276 30#
(0.254BC*1P+0.23BC+A+MY)*5P+0.23BC*1P+0.23BC*2C+ADB+Jacket  OD6.0MM 112B
UL20276 30#
(0.23BC*1P+0.23BC+A+MY)*5P+0.23BC*1P+0.23BC*2C+ADB+Jacket  OD7.3MM 112B
UL20276 28#
(0.32*1P+0.32*D+A+MY)*5P+0.32*1P+0.32*2C+ADB+Jacket,OD7.3MM, 128B
UL20276 28#
(0.32*1P+0.254*D+A+MY)*5P+0.254*1P+0.254*2C+ADB+Jacket,OD7.3MM, 128B
Support: 1.3c/1.4 version, 1080P/1440P,10.2GGbps/15.2Gbps, 3DTV,Ethernet
Features:
High Speed with Ethernet,Audio Ruturn Channel,Supports 3D,4K x 2K Video and more color spare
A premium quality version 1.3c/1.4 HDMI to HDMI cable is suitable for use in 3D HDTV,home theater,DVD player,PS3,Xbox360,Setbox and other HDMI devices
High density triple shielding for maximum rejection of EMI and RFI
Compatible with multiple audio formats from stereo to multichannel sound
Transfer digital audio and video signals at warp speed of 15.2GB per second
Electrical:
100% open and short test
Voltage: 300V DC, 5MΩ/10ms
Insulation resistance: 10MΩ minimum
Contact resistance: 2Ω maximum
Working temperature: -25 to 80 degree Celsius
Package:
Polybag,Bubble blister


LK-HDCB013
HDMI M to M Cable
Specifications:
Metal casing type HDMI cable, 19PIN M/M
24K gold plated or nickel plated connectors
PE inner mold, gold-plated copper shell
With HDMI LOGO
Oval type Chromium metal casing outer mold, shell color Silver,Brown,Gold for choice
bare copper conductor, braided aluminum-magnesium wire
Cable specification :
1.3 Ver.
UL20276 30(28/26/24)#(1P+D+A+MY)*4P+1P+5C+AB+Jacket
or UL20276 30#(1P+A+MY)* 4P+1P+5C+AD+Jacket   OD:6.0MM or 7.3MM or 8.2MM
1.4 Ver.
UL20276 30#
(0.254BC*1P+0.23BC+A+MY)*5P+0.23BC*1P+0.23BC*2C+ADB+Jacket  OD6.0MM 112B
UL20276 30#
(0.23BC*1P+0.23BC+A+MY)*5P+0.23BC*1P+0.23BC*2C+ADB+Jacket  OD7.3MM 112B
UL20276 28#
(0.32*1P+0.32*D+A+MY)*5P+0.32*1P+0.32*2C+ADB+Jacket,OD7.3MM, 128B
UL20276 28#
(0.32*1P+0.254*D+A+MY)*5P+0.254*1P+0.254*2C+ADB+Jacket,OD7.3MM, 128B
Support: 1.3c/1.4 version, 1080P/1440P,10.2GGbps/15.2Gbps,
Features:
High Speed with Ethernet,Audio Ruturn Channel,Supports 3D,4K x 2K Video and more color spare
A premium quality version 1.3c/1.4 HDMI to HDMI cable is suitable for use in 3D HDTV,home theater,DVD player,PS3,Xbox360,Setbox and other HDMI devices
High density triple shielding for maximum rejection of EMI and RFI
Compatible with multiple audio formats from stereo to multichannel sound
Transfer digital audio and video signals at warp speed of 15.2GB per second
Electrical:
100% open and short test
Voltage: 300V DC, 5MΩ/10ms
Insulation resistance: 10MΩ minimum
Contact resistance: 2Ω maximum
Working temperature: -25 to 80 degree Celsius
Package:
Polybag,Bubble blister


LK-HDCB013-2
1.3 Ver.
HDMI cable M/M
PE inner mold, gold-plated copper shell
Zinc Alloy assembly, a small oval of black chrome / full-metal-plated pearl chrome shell assembly
bare copper conductor, AL+MA braid
HDMI1.3version1080P
3 layers shield standard wire gauge:
  UL20276 30(28/26)#
(1P+D+A+MY)*4P+1P+5C+AB+Jacket
2 layers shield non-standard wire gauge:
UL20276 30#
(1P+A+MY)*4P+1P+9C+AD+Jacket
1.4 Ver.
HDMI cable M/M
PE inner mold, gold-plated copper shell
black chrome Zinc Alloy assembling
HDMI LOGO changeable
bare copper conductor, AL+MA braid
HDMI1.4
3 layers shield standard wire gauge:
1.UL20276 30#
(0.254BC*1P+0.23BC+A+MY)*5P+0.23BC*1P+0.23BC*2C+ADB+Jacket  OD6.0MM 112B
2. UL20276 30#
(0.23BC*1P+0.23BC+A+MY)*5P+0.23BC*1P+0.23BC*2C+ADB+Jacket  OD7.3MM 112B
3. UL20276 28#
(0.32*1P+0.32*D+A+MY)*5P+0.32*1P+0.32*2C+ADB+Jacket,
OD: 7.3MM, 128B
4. UL20276 28#
(0.32*1P+0.254*D+A+MY)*5P+0.254*1P+0.254*2C+ADB+Jacket,
OD: 7.3MM, 128B


LK-HDCB014
HDMI M to M Cable
Specifications:
Metal casing type HDMI cable, 19PIN M/M
24K gold plated or nickel plated connectors
PE inner mold, gold-plated copper shell
Chromium metal casing outer mold, shell color have Silver & red,Silver & black for choice
bare copper conductor, braided aluminum-magnesium wire
Cable specification :
1.3 Ver.
UL20276 30(28/26/24)#(1P+D+A+MY)*4P+1P+5C+AB+Jacket   OD: 9.0MM
1.4 Ver.
UL20276 28(/26/24)#(1P +D +AL +MY) x 5 +4C +AEB  OD: 9.0MM
Support: 1.3c/1.4 version, 1080P/1440P,10.2GGbps/15.2Gbps,
Features:
High Speed with Ethernet,Audio Ruturn Channel,Supports 3D,4K x 2K Video and more color spare
A premium quality version 1.3c/1.4 HDMI to HDMI cable is suitable for use in 3D HDTV,home theater,DVD player,PS3,Xbox360,Setbox and other HDMI devices
High density triple shielding for maximum rejection of EMI and RFI
Compatible with multiple audio formats from stereo to multichannel sound
Transfer digital audio and video signals at warp speed of 15.2GB per second
Electrical:
100% open and short test
Voltage: 300V DC, 5MΩ/10ms
Insulation resistance: 10MΩ minimum
Contact resistance: 2Ω maximum
Working temperature: -25 to 80 degree Celsius
Package:
 Polybag,Bubble blister


LK-HDCB014
1.3 Ver.
HDMI cable M/M
PE inner mold, gold-plated copper shell
black chrome Zinc Alloy assembling
bare copper conductor, AL+MA braid
HDMI1.3version1080P
3 layers shield standard wire gauge:
 UL20276 28(26)#
(1P+D+A+MY)*4P+1P+5C+AB+Jacket


LK-HDCB015
HDMI M to M Cable
Specifications:
Metal casing type HDMI cable, 19PIN M/M
24K gold plated or nickel plated connectors
PE inner mold, gold-plated copper shell
metal casing outer mold, shell color have Silver or black for choice
bare copper conductor, braided aluminum-magnesium wire
Cable specification :
1.3 Ver.
UL20276 30(28/26)#(1P+D+A+MY)*4P+1P+5C+AB+Jacket   OD: 7.3MM or 8.2MM
1.4 Ver.
UL20276 28(/26)#(1P +D +AL +MY) x 5 +4C +AEB OD: 7.3MM or 8.2MM
Support: 1.3c/1.4 version, 1080P/1440P,10.2GGbps/15.2Gbps,
Features:
High Speed with Ethernet,Audio Ruturn Channel,Supports 3D,4K x 2K Video and more color spare
A premium quality version 1.3c/1.4 HDMI to HDMI cable is suitable for use in 3D HDTV,home theater,DVD player,PS3,Xbox360,Setbox and other HDMI devices
High density triple shielding for maximum rejection of EMI and RFI
Compatible with multiple audio formats from stereo to multichannel sound
Transfer digital audio and video signals at warp speed of 15.2GB per second
Electrical:
100% open and short test
Voltage: 300V DC, 5MΩ/10ms
Insulation resistance: 10MΩ minimum
Contact resistance: 2Ω maximum
Working temperature: -25 to 80 degree Celsius
Package:
 Polybag,Bubble blister


LK-HDCB015-2
1.3 Ver.
HDMI cable M/M
PE inner mold, gold-plated copper shell
Paint Zinc Alloy assembly / all-metal pearl chrome-plated shell
bare copper conductor, AL+MA braid
HDMI1.3version1080P
3 layers shield standard wire gauge:
UL20276 30(28/26)#
(1P+D+A+MY)*4P+1P+5C+AB+Jacket
2 layers shield non-standard wire gauge:
UL20276 30#
(1P+A+MY)*4P+1P+7C+AD+Jacket
1.4 Ver.
HDMI cable M/M
PE inner mold, gold-plated copper shell
Paint Zinc Alloy assembly / all-metal pearl chrome-plated shell
bare copper conductor, AL+MA braid
HDMI1.4version
3 layers shield standard wire gauge:
UL20276 30/28#
(1P+D+A+MY)*5P+4C+AEB+Jacket


LK-HDCB017
HDMI M to M Cable
Specifications:
Dual Color molding type HDMI cable, 19PIN M/M
24K gold plated or nickel plated connectors
PE inner mold, gold-plated copper shell
PVC injection molding the outer mold, color have blue & black ,red & black and different color
bare copper conductor, braided aluminum-magnesium wire
Cable specification:
1.3 Ver.
UL20276 30(28/26)#(1P+D+A+MY)*4P+1P+5C+AB+Jacket
or UL20276 30#(1P+A+MY)* 4P+1P+5C+AD+Jacket   OD:6.0MM or 7.3MM
1.4 Ver.
UL20276 30/28#(1P+D+A+MY)*5P+4C+AEB+Jacket
Support: 1.3c/1.4 version, 1080P/1440P,10.2GGbps/15.2Gbps, 3DTV,Ethernet
Features:
High Speed with Ethernet,Audio Ruturn Channel,Supports 3D,4K x 2K Video and more color spare
A premium quality version 1.3c/1.4 HDMI to HDMI cable is suitable for use in 3D HDTV,home theater,DVD player,PS3,Xbox360,Setbox and other HDMI devices
High density triple shielding for maximum rejection of EMI and RFI
Compatible with multiple audio formats from stereo to multichannel sound
Transfer digital audio and video signals at warp speed of 15.2GB per second
Electrical:
100% open and short test
Voltage: 300V DC, 5MΩ/10ms
Insulation resistance: 10MΩ minimum
Contact resistance: 2Ω maximum
Working temperature: -25 to 80 degree Celsius
Package:
Polybag,Bubble blister


LK-HDCB017-2
1.3 Ver.
HDMI cable M/M
PE inner mold, gold-plated copper shell
outer mold: PVC double color injection
bare copper conductor, AL+MA braid
HDMI1.3version1080P
3 layers shield standard wire gauge:
UL20276 30(28/26)#
(1P+D+A+MY)*4P+1P+5C+AB+Jacket
2 layers shield non-standard wire gauge:
UL20276 30#
(1P+A+MY)*4P+1P+5C+AD+Jacket
1.4 Ver.
HDMI cable M/M
PE inner mold, gold-plated copper shell
outer mold: PVC double color injection
bare copper conductor, AL+MA braid
HDMI1.4version
3 layers shield standard wire gauge:
UL20276 30/28#
(1P+D+A+MY)*5P+4C+AEB+Jacket


LK-HDCB018
HDMI M to M Cable
Specifications:
Metal casing type HDMI cable, 19PIN M/M
24K gold plated or nickel plated connectors
PE inner mold, gold-plated copper shell
Aluminum alloy outer mold , shell color have blue,red,gold,silver
bare copper conductor, braided aluminum-magnesium wire
Cable specification :
1.3 Ver.
UL20276 30(28/26)#(1P+D+A+MY)*4P+1P+5C+AB+Jacket
or UL20276 30#(1P+A+MY)* 4P+1P+5C+AD+Jacket   OD:6.0MM or 7.3MM
1.4 Ver.
UL20276 30/28#(1P+D+A+MY)*5P+4C+AEB+Jacket
Support: 1.3c/1.4 version, 1080P/1440P,10.2GGbps/15.2Gbps, 3DTV,Ethernet
Features:
High Speed with Ethernet,Audio Ruturn Channel,Supports 3D,4K x 2K Video and more color spare
A premium quality version 1.3c/1.4 HDMI to HDMI cable is suitable for use in 3D HDTV,home theater,DVD player,PS3,Xbox360,Setbox and other HDMI devices
High density triple shielding for maximum rejection of EMI and RFI
Compatible with multiple audio formats from stereo to multichannel sound
Transfer digital audio and video signals at warp speed of 15.2GB per second
Electrical:
100% open and short test
Voltage: 300V DC, 5MΩ/10ms
Insulation resistance: 10MΩ minimum
Contact resistance: 2Ω maximum
Working temperature: -25 to 80 degree Celsius
Package:
Polybag,Bubble blister


LK-HDCB018-2
1.3 Ver.
HDMI cable M/M
PE inner mold, gold-plated copper shell
connector end with PVC injection
Aluminum alloy Silver chrome assembly
bare copper conductor, AL+MA braid
HDMI1.3version1080P
3 layers shield standard wire gauge:
UL20276 30(28/26)#
(1P+D+A+MY)*4P+1P+5C+AB+Jacket
2 layers shield non-standard wire gauge:
UL20276 30#
(1P+A+MY)*4P+1P+5C+AD+Jacket
1.4 Ver.
HDMI cable M/M
PE inner mold, gold-plated copper shell
connector end with PVC injection
Aluminum alloy Silver chrome assembly
bare copper conductor, AL+MA braid
HDMI1.4version
3 layers shield standard wire gauge:
UL20276 30/28#
(1P+D+A+MY)*5P+4C+AEB+Jacket


LK-HDCB019
HDMI M to M Cable
Specifications:
Metal casing type HDMI cable, 19PIN M/M
24K gold plated or nickel plated connectors
PE inner mold, gold-plated copper shell
Aluminum alloy outer mold , shell color have blue,red
bare copper conductor, braided aluminum-magnesium wire
Cable specification :
1.3 Ver.
CABLE:UL20276[30AWG(7/0.10TC)*1P+1+AL+MYLAR]*4+30AWG(7/0.10TC)*1P+30AWG(7/0.10TC)*3C+AL+1+ B(16*6/0.12AM)  OD:6.0MM
Features:
High Speed with Ethernet,Audio Ruturn Channel,Supports 3D,4K x 2K Video and more color spare
A premium quality version 1.3c/1.4 HDMI to HDMI cable is suitable for use in 3D HDTV,home theater,DVD player,PS3,Xbox360,Setbox and other HDMI devices
High density triple shielding for maximum rejection of EMI and RFI
Compatible with multiple audio formats from stereo to multichannel sound
Transfer digital audio and video signals at warp speed of 15.2GB per second
Electrical:
100% open and short test
Voltage: 300V DC, 5MΩ/10ms
Insulation resistance: 10MΩ minimum
Contact resistance: 2Ω maximum
Working temperature: -25 to 80 degree Celsius
Package:
Polybag,Bubble blister


LK-HDCB019-2
Connector - blue
1.3 Ver.
CABLE: UL20276
30AWG (7/0.10TC)*1P+1+AL+MYLAR]*4+30AWG (7/0.10TC)*1P+30AWG (7/0.10TC)*3C+AL+1+ B (16*6/0.12AM)
OD: 6.0
COLOR: BLACK
SPC: HDMI 19pin (M) to (M) metal hood cable
PIN: G/F gold connector.
Plus black and white nylon mesh and dust cover,
Connector aluminum shell color: red/ blue,
Printing: HDMI
1.3 version wire gauge,meet 1080P.
Sample is available for the quantity confirmation.


LK-HDCB201A-AC
Mini type HDMI M to M Cable
Specifications:
Dual Color Mini type A TO C HDMI M to M Cable, 19PIN M/M
24K gold plated or nickel plated connectors
PE inner mold, gold-plated copper shell
PVC injection molding the outer mold , color have red & black and orange& black and yellow& black
bare copper conductor, braided aluminum-magnesium wire
Cable specification :
1.3 Ver.
UL20276 30#(1P+D+A+MY)*4P+1P+5C+AB+Jacket   OD6.0MM
1.4 Ver.
UL20276 AWG (1P +D +AL +MY) x 5 +4C +AEB OD6.0MM
Support: 1.3c/1.4 version, 1080P/1440P,10.2GGbps/15.2Gbps, 3DTV,Ethernet
Features:
High Speed with Ethernet,Audio Ruturn Channel,Supports 3D,4K x 2K Video and more color spare
A premium quality version 1.3c/1.4 HDMI to HDMI cable is suitable for use in 3D HDTV,home theater,DVD player,PS3,Xbox360,Setbox and other HDMI devices
With nylon protection layer protect cable from abrasion
High density triple shielding for maximum rejection of EMI and RFI
Compatible with multiple audio formats from stereo to multichannel sound
Transfer digital audio and video signals at warp speed of 15.2GB per second
Electrical:
100% open and short test
Voltage: 300V DC, 5MΩ/10ms
Insulation resistance: 10MΩ minimum
Contact resistance: 2Ω maximum
Working temperature: -25 to 80 degree Celsius
Package:
Polybag,Bubble blister


LK-HDCB201B-AC
Mini type HDMI M to M Cable
Specifications:
Solid Color Mini type A TO C HDMI M to M Cable, 19PIN M/M
24K gold plated or nickel plated connectors
PE inner mold, gold-plated copper shell
PVC injection molding the outer mold , color black
bare copper conductor, braided aluminum-magnesium wire
Cable specification :
1.3 Ver.
UL20276 30#(1P+D+A+MY)*4P+1P+5C+AB+Jacket   OD6.0MM
1.4 Ver.
UL20276 AWG (1P +D +AL +MY) x 5 +4C +AEB OD6.0MM
Support: 1.3c/1.4 version, 1080P/1440P,10.2GGbps/15.2Gbps, 3DTV,Ethernet
Features:
High Speed with Ethernet,Audio Ruturn Channel,Supports 3D,4K x 2K Video and more color spare
A premium quality version 1.3c/1.4 HDMI to HDMI cable is suitable for use in 3D HDTV,home theater,DVD player,PS3,Xbox360,Setbox and other HDMI devices
With nylon protection layer protect cable from abrasion
High density triple shielding for maximum rejection of EMI and RFI
Compatible with multiple audio formats from stereo to multichannel sound
Transfer digital audio and video signals at warp speed of 15.2GB per second
Electrical:
100% open and short test
Voltage: 300V DC, 5MΩ/10ms
Insulation resistance: 10MΩ minimum
Contact resistance: 2Ω maximum
Working temperature: -25 to 80 degree Celsius
Package:
Polybag,Bubble blister


LK-HDCBF001
Flat type HDMI M to M Cable
Specifications:
Metal casing Flat type HDMI cable, 19PIN M/M
24K gold plated or nickel plated connectors
PE inner mold, gold-plated copper shell
With HDMI LOGO
Aluminum alloy outer mold, color have red,black,orange,yellow
bare copper conductor, braided aluminum-magnesium wire
Cable specification :
1.3 Ver.
UL20276 30(28)#(1P+D+A+MY)*4P+1P+5C+AD+Jacket   OD3.8*13MM
1.4 Ver.
UL20276 30(28)#(1P+D+A+MY)*5P+4C+AEB+Jacket
Support: 1.3c/1.4 version, 1080P/1440P,10.2GGbps/15.2Gbps, 3DTV,Ethernet
Features:
High Speed with Ethernet,Audio Ruturn Channel,Supports 3D,4K x 2K Video and more color spare
A premium quality version 1.3c/1.4 HDMI to HDMI cable is suitable for use in 3D HDTV,home theater,DVD player,PS3,Xbox360,Setbox and other HDMI devices
With nylon protection layer protect cable from abrasion
High density triple shielding for maximum rejection of EMI and RFI
Compatible with multiple audio formats from stereo to multichannel sound
Transfer digital audio and video signals at warp speed of 15.2GB per second
Electrical:
100% open and short test
Voltage: 300V DC, 5MΩ/10ms
Insulation resistance: 10MΩ minimum
Contact resistance: 2Ω maximum
Working temperature: -25 to 80 degree Celsius
Package:
Polybag,Bubble blister


LK-HDCBF002
Flat type HDMI M to M Cable
Specifications:
Solid Color Flat type HDMI cable, 19PIN M/M
24K gold plated or nickel plated connectors
PE inner mold, gold-plated copper shell
PVC injection molding the outer mold , color have red,black,orange,yellow
With HDMI LOGO
bare copper conductor, braided aluminum-magnesium wire
Cable specification :
1.3 Ver.
UL20276 30(28)#(1P+D+A+MY)*4P+1P+5C+AD+Jacket   OD3.8*13MM
1.4 Ver.
UL20276 30(28)#(1P+D+A+MY)*5P+4C+AEB+Jacket
Support: 1.3c/1.4 version, 1080P/1440P,10.2GGbps/15.2Gbps, 3DTV,Ethernet
Features:
High Speed with Ethernet,Audio Ruturn Channel,Supports 3D,4K x 2K Video and more color spare
A premium quality version 1.3c/1.4 HDMI to HDMI cable is suitable for use in 3D HDTV,home theater,DVD player,PS3,Xbox360,Setbox and other HDMI devices
With nylon protection layer protect cable from abrasion
High density triple shielding for maximum rejection of EMI and RFI
Compatible with multiple audio formats from stereo to multichannel sound
Transfer digital audio and video signals at warp speed of 15.2GB per second
Electrical:
100% open and short test
Voltage: 300V DC, 5MΩ/10ms
Insulation resistance: 10MΩ minimum
Contact resistance: 2Ω maximum
Working temperature: -25 to 80 degree Celsius
Package:
Polybag,Bubble blister


LK-HDCBF003
Flat type HDMI M to M Cable
Specifications:
Metal casing Flat type HDMI cable, 19PIN M/M
24K gold plated or nickel plated connectors
PE inner mold, gold-plated copper shell
Aluminum alloy outer mold, shell color gold
With HDMI LOGO
bare copper conductor, braided aluminum-magnesium wire
Cable specification :
1.4 Ver.
UL20276:26#(0.404BC*1P+0.32BC+MY)*5P+0.32BC*1P+0.32BC*2C+AD+Jacket  OD3.8*16.5MM
Support:1.3c/1.4 version, 1080P/1440P,10.2GGbps/15.2Gbps,3DTV,Ethernet
Features:
High Speed with Ethernet,Audio Ruturn Channel,Supports 3D,4K x 2K Video and more color spare
A premium quality version 1.3c/1.4 HDMI to HDMI cable is suitable for use in 3D HDTV,home theater,DVD player,PS3,Xbox360,Setbox and other HDMI devices
With nylon protection layer protect cable from abrasion
High density triple shielding for maximum rejection of EMI and RFI
Compatible with multiple audio formats from stereo to multichannel sound
Transfer digital audio and video signals at warp speed of 15.2GB per second
Electrical:
100% open and short test
Voltage: 300V DC, 5MΩ/10ms
Insulation resistance: 10MΩ minimum
Contact resistance: 2Ω maximum
Working temperature: -25 to 80 degree Celsius
Package:
Polybag ,Bubble blister
