Name: 1-48 Cores Multi-Purpose Distribution Cable 4 Core Multimode Fiber Optic Cable
Brand: all-electronics-online.com
SKU: 809804785
Availability: InStock
Rating: 4.8 (147 reviews)

Price:	US $ 0.4/Meter
Min Order:	2000/Meter
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	Fiber Optic Distribution Cable
Installation:	Indoor Use
Sheath:	UV and Flame Resistant LSZH
Cable Structure:	Tight Buffer
Strengthen Member:	Kevlar Aramid Yarn
Certification:	ISO9001
Application:	Telecommunication
Sheath Material:	PVC/LSZH

Product Description

G652D Aramid yarn PVC distribution cable 8 12 core fiber optic cable meter price

Offer CE,ROHS,FCC,ISO9001 ,TLC certificates

1,2,4,6,8,12 cores optional

Lenght can be negotiation

Both OEM and ODM are availables

1.RoHS compliant fibre cable
2.prompt delivery
3. Building fiber cabling
4.Lan optical cables

Multi Cores G652D G657A OM2 OM3 Indoor Optic Fiber Cable Spec. :

Fiber count	Cable Diameter (mm)	Cable Weight (kg/km)	Tensile (N) Long/ Short term	Crush (N/100mm) Long/ Short term	Min. Bend Radius (mm) Dynamic/ Static
4	5.0	19.0	130/440	200/1000	20D/10D
6	5.2	23.0	130/440	200/1000
8	5.5	26.0	130/440	200/1000
12	6.5	36.5	200/660	200/1000
16	7.5	44.5	200/660	200/1000
24	8.2	54.5	200/660	200/1000
Note: 1. The min. bend radius (static) is 5D when G657 fiber is used. 2. Range of temperature: -40~+70°C 3. D is outer diameter of the round cable 4. Tight-buffered fiber is 0.9mm

Order Optional Information

Jacket material: PVC (Environmental lame-retardant polyvinylchloride), LSZH (Environmental low smoke zero halogen flame retardant polyolefin), or other customerized material.

Jacket color: blue, orange, green, brown, gray, red, black, yellow, and violet, pink, aqua.

Fiber type: B1-G.652, B1.3-G.652.D, B4-G655, A1-50/125μm, A1b-62.5/125μm, M1-Maxband 150, M3-Maxband 300, M5-Maxband 550, E1- EasyBad G.657, E1.1- EasyBad Plus G.657, etc.

Cable Dimension: the nominal cable dimension, or other constomerized dimension;

Fiber Count: total number of fibers in the cable

MOQ: 1km~2km, other customerized

Discription

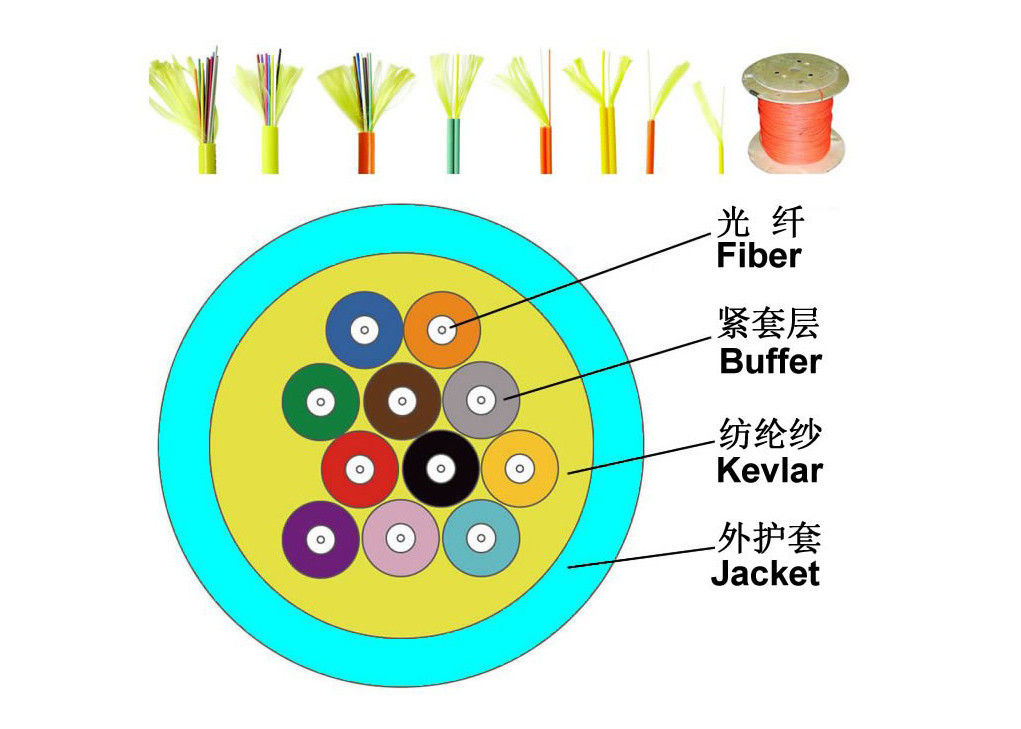

12 diameter 900μm or 600μm flame-retardant tight buffer fibers + a layer of aramid yarn + PVC jacket.

Features
1. Tight buffer fiber ease of stripping.
2. The jacket anti-corrosion, anti-water, anti-alltraviolet ratardation, flame retardant and harmless to environment etc;
3. Excellent flame retardart jacke and anti-torsion;
4. Soft, flexible, easy to splice, and with big capacity data transmission;
5. Excellent performance of anti-torsion;
6. All dielectric structure protect it from electromagnetic influence;

Application:
1. Multi optical fiber jumper, patch cord, pigtail cable;
2. Indoor any purpose cable distribution
3. Backbone building distribution cabling.

4. Installation: wall, interlayer, pipe, trough, duct.
