| Prod Model: |
1-5/8' RF Cable |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Inner Conductor: |
17.3mm Annular Copper |
| Dielectric: |
42.5mm Foam PE |
| Shielding: |
46.5mm Copper Tube |
| Jacket: |
49.5mm PE (R/Ohs) |
| 1-5/8' RF Cable: |
15 Inch Cable |
| Impedance: |
50 Ohms |
| Application: |
RF Cable |
| Conductor Material: |
Copper |
| Cover Material: |
PE |
| Certification: |
ETL |
| Type: |
Coaxial |
Product Description

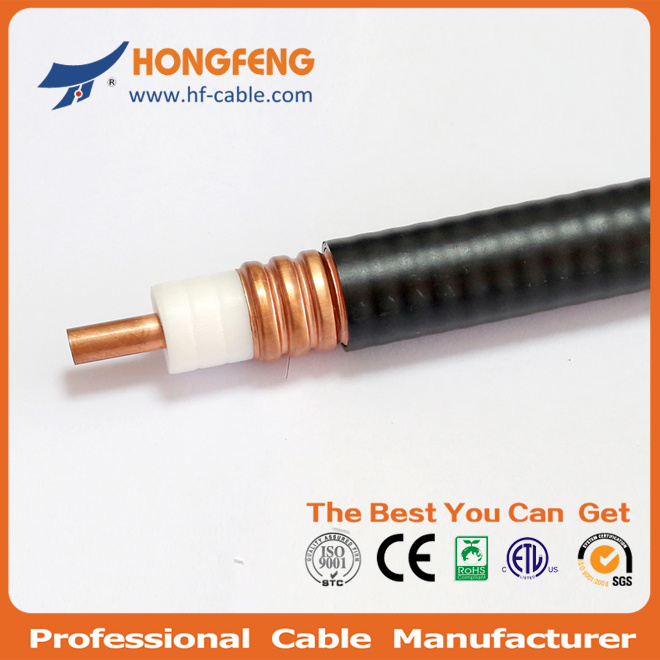

RF Feeder Corrugated Leaky series 50 Ohm coaxial cable Applications:Jumper assemblies in wireless communications systems
Short antenna feeder runs
Signal transmission/communications
CONSTRUCTION
| Item | Diameter(mm) | Material |
Inner conductor | 17.3 | helical corrugated copper tube |
Insulation | 42.5 | Foamed polyethylene |
Outer conductor | 46.5 | Annular corrugated copper tube |
Jacket | 49.5 | Polyethylene |
ELECTRICAL CHARACTERISTICS
| Item | Specification | Remarks |
Characteristic impedance | 50±1Ω | |
Velocity | 88% | |
Minimum Insulation resistance | 5000MΩ.km | DC 500V |
Capacitance | 76 pF/m | |
Dielectric strength | 15000V | DC (continuance 1 minute) |
Peak power rating | 310kW | |
RF peak voltage | 5600 V | |
VSWR typical value | 1.15 | 10M-3000MHz |
| 1.10 | 800M-1000MHz |
| 1.10 | 1700M-2000MHz |
| 1.10 | 2100M-2400MHz |
ATTENUATION & AVERAGE POWER RATING
| Frequency Mhz | Attenuation(dB/100m) | Average power(kw) |
10 | 0.20 | 58 |
100 | 0.69 | 17 |
150 | 0.86 | 13 |
200 | 1.01 | 11 |
300 | 1.26 | 8.89 |
450 | 1.59 | 6.97 |
500 | 1.69 | 6.57 |
700 | 2.04 | 4.99 |
800 | 2.21 | 4.89 |
900 | 2.36 | 4.53 |
1000 | 2.51 | 4.24 |
1500 | 3.20 | 3.25 |
1700 | 3.45 | 2.99 |
1800 | 3.56 | 2.88 |
1900 | 3.70 | 2.73 |
2000 | 3.82 | 2.69 |
2100 | 3.93 | 2.51 |
2200 | 4.05 | 2.47 |
2400 | 4.32 | 2.35 |
2500 | 4.38 | 2.32 |
2700 | 4.60 | 2.22 |
HALICAL CHARACTERISTICS
Item | Specification | Remarks |
Dynamic minimum bending radius | 510 mm | Repeated 15 times |
Static iminimum Bending radius | 250 mm | Single bend |
Tensile strength | 3000 N | |
Cable weight | 1500 kg/km | |
Main products:1) 75 Ohm Coaxial Cable:
RG59, RG6, RG7, RG11, etc.
2) 50 Ohm Coaxial Cable:
RG58, RG142, RG174, RG178, RG213, RG214, RG316, etc.
3) MIL-C-17 Military Standard Cable:
RG59 A/U, RG59 B/U, RG6 A/U, RG11 A/U, RG58 A/U, RG58 B/U, RG58 C/U, RG213, RG214, etc.
4) Trunk Distribution Cable:
P3.412 JCA/JCAM, P3.500 JCA/JCAM, P3.565JCA/JCAM, QR320 JCA/JCAM, QR540 JCA/JCAM.
5) RF Coaxial Cable:
1/2', 1/4', 1/8', 7/8', 1-1/4',1-5/8', 1-7/8', LMR195, LMR200, LMR300, LMR400, LMR500, LMR600, 3D-FB,4C-FB,5D-FB, 7D-FB, 8D-FB, 10D-FB, etc.
6) Network Cables & LAN Cable:
CAT3, UTP/FTP CAT5, UTP/FTP/SFTP CAT5e, UTP/FTP CAT6, UTP/FTP CAT6a, UTP/FTP CAT7, etc.
7) Composite Cable:
RG59+2C Siamese Cable, RG6+2C Siamese Cable, 2RG59+2RG6, 2RG6+2CAT5e, etc.
8) British Standard Coaxial Cable:
BT3002, CT100, CT125, CT165, URM57, URM67, URM70, etc.
9) Japanese Standard Coaxial Cable:
1.5C-2V, 2.5C-2V, 3C-2V, 3C-2VR, 4C-2V, 5C-2V, 7C-2V, 10C-2V, 3D-2V, 5D-2V, 8D-2V, 10D-2V, etc.
10) French Standard Coaxial Cable:
11VATC/PATC, 17VATC/PATC, 19VATC/PATC, 21VATC/PATC, 25VATC/PATC, KX6/A, KX8, etc.
11) Alarm Cable, Control Cable:
Unscreened PVC Jacketed Alarm Cable, Screened PVC Jacketed Alarm Cable.
12) Optic Fiber Cable
GYXTW, GYXTC8S, GYTC8A, GYTA, GYFTY, GYTA53, GYXTC8S, GYXTS, Indoor Fiber Cable, etc.
