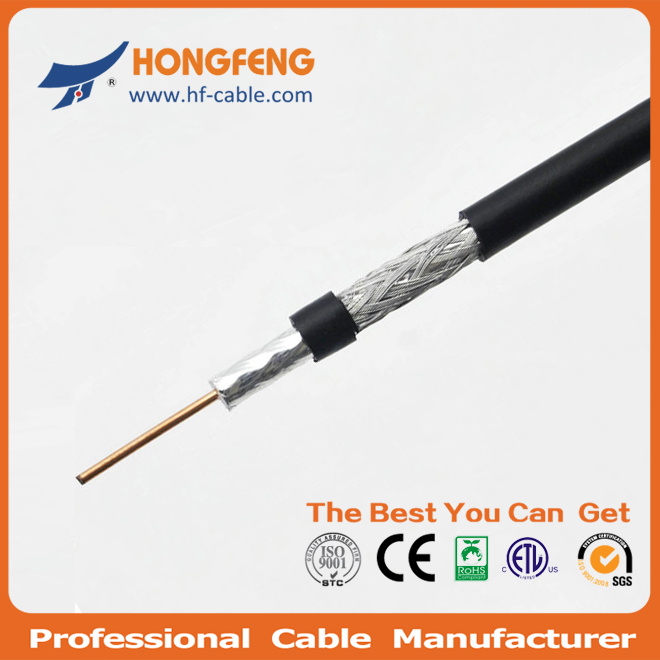

High Quality Low Db Loss 75 Ohm 3c-2V Coaxial Cable

Prod Model:	3C-2V 2.5C-2V 5C-2V cable
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Jacket:	PVC
Jacket Color:	Black/White/Color
Jacket Diameter:	5.0mm
Impedance:	75 Ohm
Inner Conductor:	CCS, CCA, Cu
Inner Conductor Diameter:	0.50mm
Dielectric:	3.0mm
Certificate:	ISO9001, Cl2/CATV/Cm UL, CE, RoHS
Braid Shied Material:	Bc, Tc, CCA, CCS, Al-Mg(60%-95%)
Insulation Material:	Bonded/Non Bonded
Application:	TV, Satellite Cable
Color:	Black
Type:	Coaxial
Certification:	ETL
Connector:	F

Product Description

1. RG6 Specifications:
1) Inner Conductor: CCS, CCA, CU
2) Dielectric: Foam PE or Solid PE
3) Al Foil: Bonded, Non-bonded, Single, Double
4) Braiding Wire Material: Cu, Al-Mg, TC
5) Braiding Wire Diameter: 0.12mm, 0.15mm, 0.16mm
6) Braiding Net: 48, 64, 72, 80, 96, 128 and more
7) Coverage: 40%, 50%, 60%, 80%, 90% and more
8) PVC Degree: 60, 65, 68, 70, 75
9) Jacket: PE or PVC
10) OEM and Customer's designation are welcome

Such as: 1.02mm B. C Conductor; Foamed PE Dielectric; Bonded Al Foil& 64/0.12mm Al braid; 6.91 PVC jacket white

2. Package:
1) Packing Lengths: 100m/roll, 200m/roll, 305m/roll, 100yard/roll, 200yard/roll, 300yard/roll Other lengths available according to client's request;
2) Inner packing: Wooden reel, plastic reel, and paper reel available.
3) Outer packing: Carton box, pull out box, pallet available.
4) Other packing available according to client's request

Mainly products:
1) RG series Coaxial Cable: Rg59, RG6, rg7, rg8, rg11, RG58, rg142, rg174, rg178, rg179, rg213, rg214, rg316, rg393, rg402, etc.;
2) JIS series Coaxial Cable: 1.5C-2V, 2.5C-2V, 3C-2V, 3C-2VR, 4C-2V, 5C-2V, 7C-2V, 10C-2V, 3D-2V, 5D-2V, 8D-2V, 10D-2V, 3D-FB, 5D-FB, 8D-FB, 10D-FB, etc.;
3) Vatc series Coaxial Cable: 17vatc, 19vatc, 21vatc, 25vatc, kx6a, kx8;
4) TRUNK Cable: P3 412, 500, 540, 625, 750, 850;
5) LMR SERIES: LMR200, LMR400, LMR600;
6) Network Cables: LAN Cable CAT3, LAN Cable CAT5, LAN Cable CAT5e, LAN Cable CAT6, LAN Cable CAT7;
7) Combined Cable: Siamese Cables: RG59+2C, RG6+LAN cable, RGB5CRG59, BT3002.


RG6 Coaxial Cable Introduce and Parameter: 75 Ohm
		SHIELD SHIELD	TRI-SHIELD	QUAD-SHIELD
CONDUCTOR	MATERIAL	BC/CCS	BC/CCX	BC/CCX
	Nom. Dia	18AWG	18AWG	18AWG
DIELECTRIC	MATERIAL	Foamed PE	Foamed PE	Foamed PE
	Nom. Dia	4.57mm	4.57mm	4.57mm
SHIELD	MATERIAL	AL Foil+AL Braiding	AL-Foil+Braiding of AL +AL-Foil	(AL-Foil+Braiding of AL)*2
	COVERAGE	40%-90%	40%-90%	40%/60%
	METERIAL	PVC/PE	PVC/PE	PVC/PE
JACKET	Nom. Thick.	0.80mm	0.80mm	0.86mm
	Nom. Dia	6.91mm	6.91mm	6.91mm
