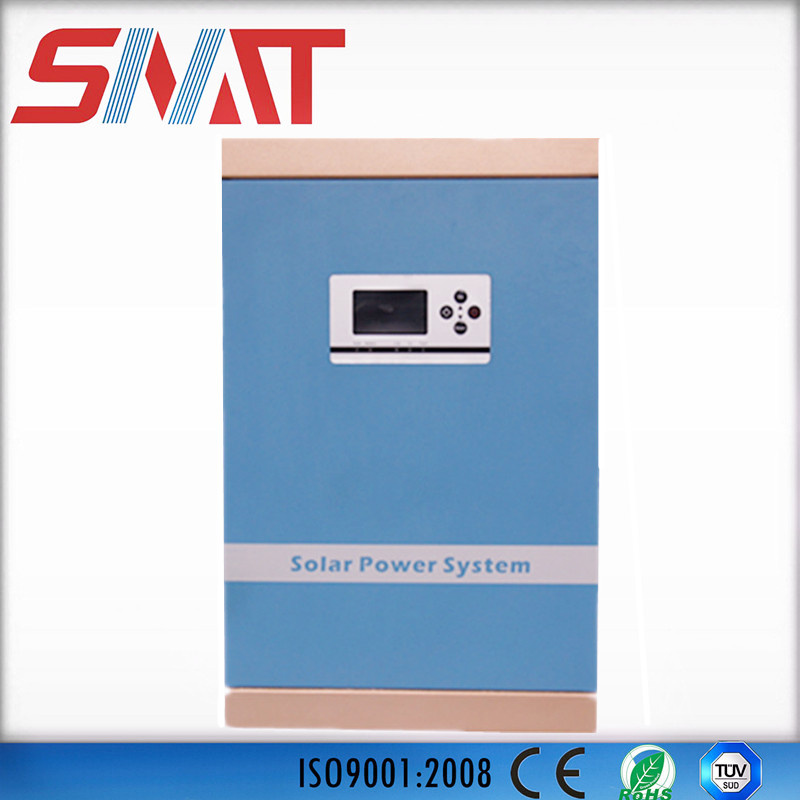

1.5kw Inverter & Controller Integrated Machine

Name: 1.5kw Inverter & Controller Integrated Machine
Brand: all-electronics-online.com
SKU: 781792515
Availability: InStock
Rating: 4.6 (92 reviews)

Price:	US $ 285-300/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	NKP1.5
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Mode:	Inverter with Built-in Controller
Controller Type:	PWM Controller
Inverter Type:	Pure Sine Wave Inverter
Special Size:	Accept
OEM/ODM:	Offer
Company:	Manufacturer&Trading
Display:	LCD Display
Sample Order:	Accept
Warranty:	1/2years
MOQ:	1 Unit
Application:	Commercial
Specification:	Normal

Product Description

1.5kw Built-in Controller Inverter for Solar Power Supply

Product overview

The product is an integrated intelligent inverter with built-in charge controller system designed for large photovoltaic.Its mains supply preferred mode,saving mode and battery preferred mode are all settable,thus making it easy to meet the different application needs of users.

Specification

Mode: NKP-1KW - 5KW

Rated power:1000W - 5000W

Rated voltage: 12VDC/ 24VDC /48VDC

Output voltage :110VAC/220VAC

Input voltage:85-138VAC/170-275VAC

Overload:110-120%/30S;>160%/300ms;

Advantage

--Double MCU intelligent control technology.

--pure sine wave AC output

--Mains supply preferred mode

--independent three-stage photovoltaic charge management

--LCD display

Application

*Families,

*Schools,

*Streets,

*Frontier defense,

*Pasturing areas,

*Industrial and mining enterprises,

*Satellite communications equipment,

etc.

ProtectionFunctions

--Overcharge protection,

--Overdischarge protection,

--Overload protection,

--Overtemperature protection

--Short circuit protection

Index

Mode:NKP-		1.5KW
Rated power		1500W
Battery	Rated voltage	12VDC/24VDC/48VDC
Controller	solar input voltage	<25V;×2/24V;×4/48V;×8/96V;
	Charge current	20-60A
	Voltage of boosting charge	14.2V;×2/24V;×4/48V;×8/96V;
	Voltage of direct charge	14V;×2/24V;×4/48V;×8/96V;
	Voltage of floating charge	13.8V;×2/24V;×4/48V;×8/96V;
Inverter	Input voltage	85-138VAC/170-275VAC
	Input frequency	45-65Hz
	Charge current	30A(default) -C0-C6
	Battery type	U0-U7 (settable)
	Output voltage	110VAC/220VAC;±5%( inversion mode)
	Output frequency	50/60Hz±1%( inversion mode)
	Output waveform	Pure sine wave
	Switching time	<10ms( typical load)
	Efficiency	>85%(80% resistive load)
	Overload	110-120%/30S;>160%/300ms;
	Protection function	Battery overvoltage protection,battery undervoltage protection, overload protection,short circuit protection, overtemperature protection,etc.
Ambient temperature for operation		0-40ºC
Ambient temperature for storage		-15 - +50ºC
Relative humidity for operation/storage		0-90%(no condensation)
External dimension(mm)		175350550mm
