Name: 6kw Hybrid off Grid Solar Power Inverter for Charge
Brand: all-electronics-online.com
SKU: 838250785
Availability: InStock
Rating: 4.8 (92 reviews)

Price:	US $ 685-700/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	NKW--6KW
Battery Voltage:	48VDC
Control Mode:	PWM
AC Output Voltage:	220VAC
Rated Current:	60A
Output Waveform:	Pure Sine Wave
Frequency:	50/60Hz
Rated Power:	6kw
Product Name:	6kw Hybrid off Grid Solar Power Inverter for Charg

Product Description

6KW hybrid off grid solar power inverter for charge

Product overview

The product is an integrated intelligent inverter with built-in charge controller system designed for large photovoltaic.Its mains supply preferred mode,saving mode and battery preferred mode are all settable,thus making it easy to meet the different application needs of users.

Specification

Mode: NKW-6KW
Rated power:6000W
Rated voltage: 48VDC
Output voltage :220VAC
Input voltage:220VAC
Overload:110-120%/30S;>160%/300ms;

Advantage

--Double MCU intelligent control technology.
--pure sine wave AC output
--Mains supply preferred mode
--independent three-stage photovoltaic charge management
--LCD display

Application

*Families,
*Schools,
*Streets,
*Frontier defense,
*Pasturing areas,
*Industrial and mining enterprises,
*Satellite communications equipment,
etc.

ProtectionFunctions
--Overcharge protection,
--Overdischarge protection,
--Overload protection,
--Overtemperature protection
--Short circuit protection

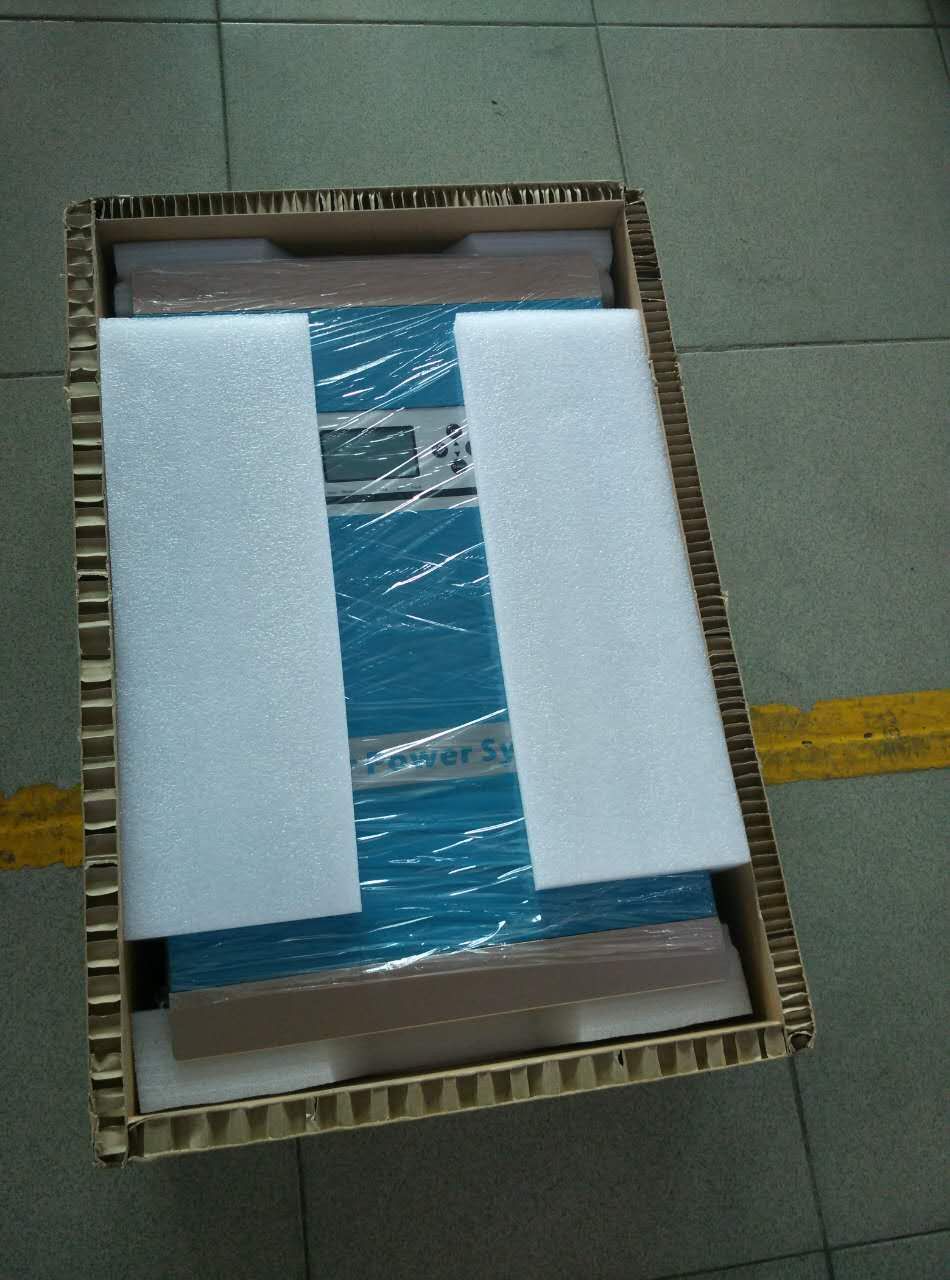

Package.

Index

Mode:NKP-		6KW
Rated power		6000W
Battery	Rated voltage	48VDC
Controller	solar input voltage	4/48V
	Charge current	60A
	Voltage of boosting charge	×4/48V
	Voltage of direct charge	×4/48V
	Voltage of floating charge	×4/48V
Inverter	Input voltage	85-138VAC/170-275VAC
	Input frequency	45-65Hz
	Charge current	30A(default) -C0-C6
	Battery type	U0-U7 (settable)
	Output voltage	110VAC/220VAC;±5%( inversion mode)
	Output frequency	50/60Hz±1%( inversion mode)
	Output waveform	Pure sine wave
	Switching time	<10ms( typical load)
	Efficiency	>85%(80% resistive load)
	Overload	110-120%/30S;>160%/300ms;
	Protection function	Battery overvoltage protection, battery undervoltage protection,overload protection, short circuit protection,overtemperature protection,etc.
Ambient temperature for operation		0-40ºC
Ambient temperature for storage		-15 - +50ºC
Relative humidity for operation/storage		0-90%(no condensation)
External dimension(mm)		175350550mm
