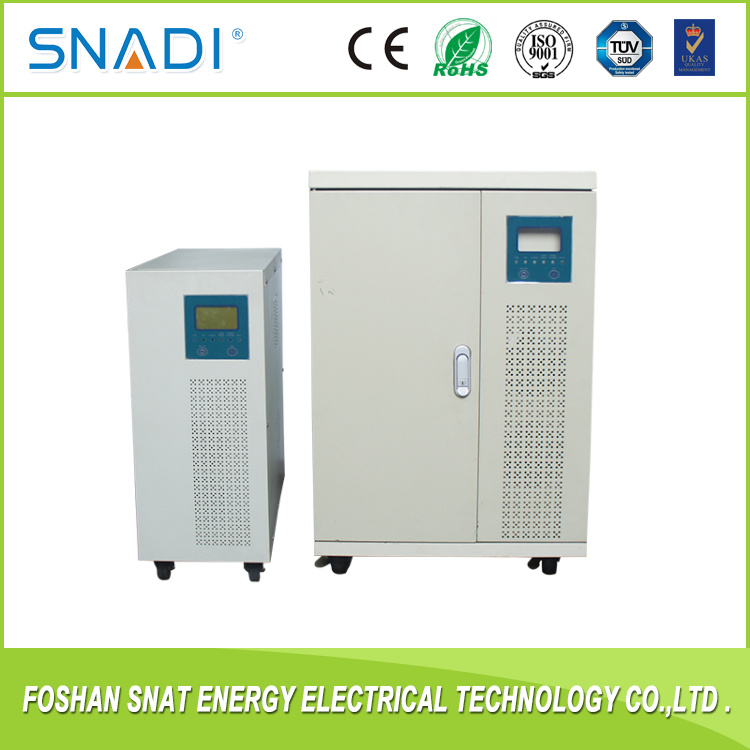

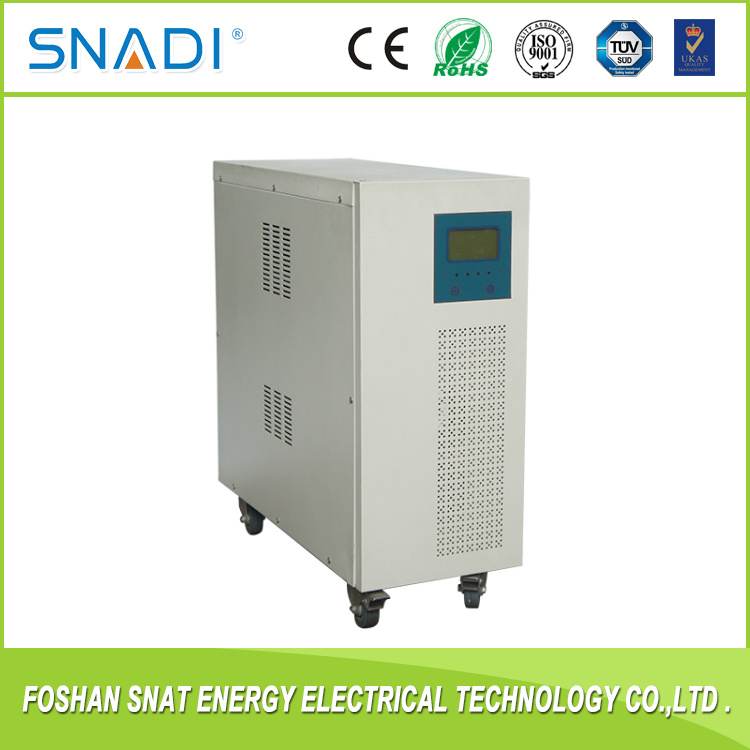

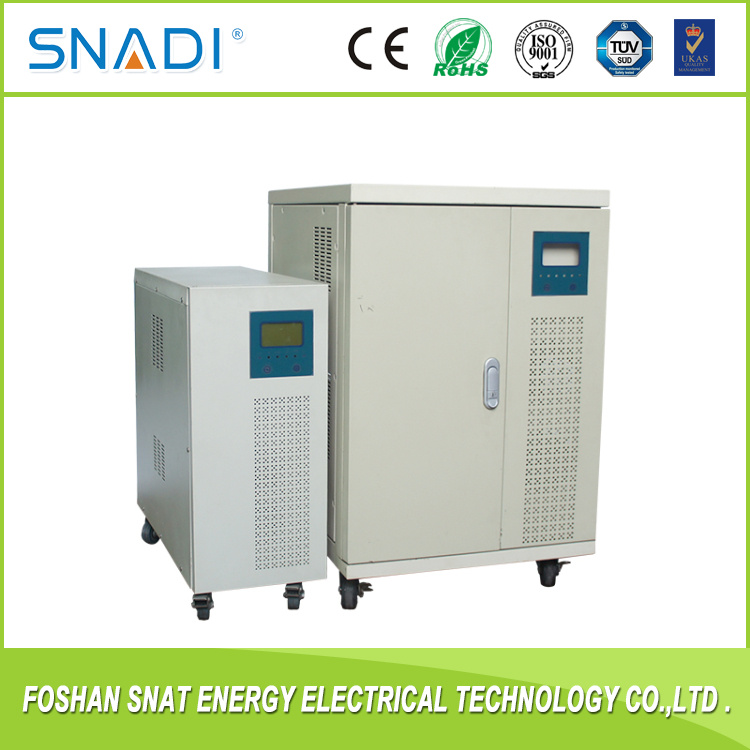

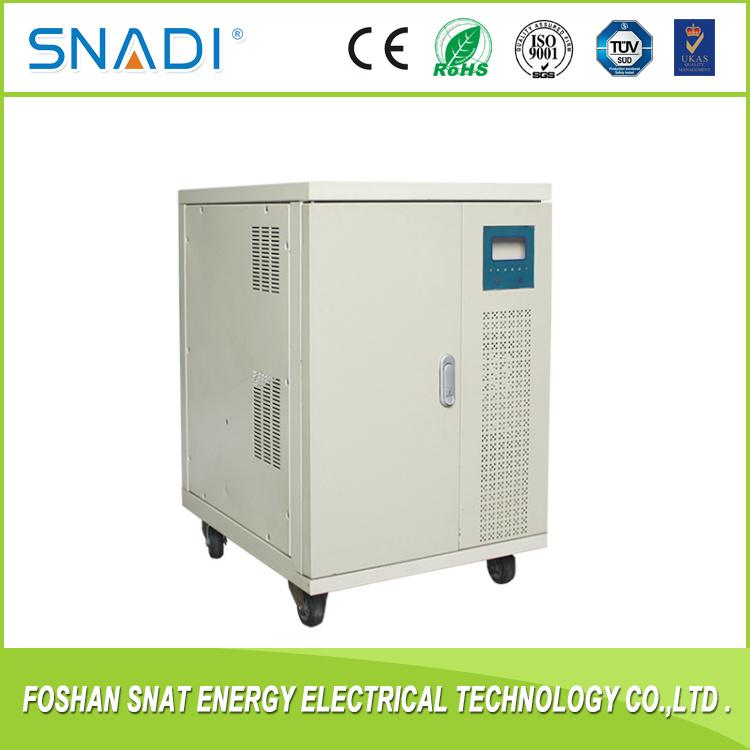

Three-Phase Frequency Solar Inverter 50Hz/60Hz

Name: Three-Phase Frequency Solar Inverter 50Hz/60Hz
Brand: all-electronics-online.com
SKU: 837228415
Availability: InStock
Rating: 4.8 (131 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	TM Series

Product Description

Three-phase power frequency solar inverter for power supply

This pure sine wave inverter applies to different types of loads because of its full digital design and real pure sine wave output. With power-frequency design and highly stable output voltage and frequency, it can operate continuously for a long time, thus, it avoids the disadvantage of direct use of the mains supply, such as interruption of power supply, voltage instability, noise, and the lightning attacks, and the disadvantage of the short power supply time of small inverter supplies guaranteeing continuous and reliable operation for electrical equipment, sine wave inverter supplies are best guarantee for the safe and reliable operation of systems.

Pure sine wave inverter is now widely used in china telecom, China mobile, china Unicom, aerospace railways financial management, office automation industrial automatic control, medical health, military scientific research.

Product Description

*Excellent performance because of an MCU intelligent control technology.

*A wide range of applicable loads because of power-frequency transformer design and pure sine wave AC output.

*A wide range, high accuracy and full automatic voltage stabilization

* Overall protection functions (overload protection, short circuit protection, over-voltage protection, under voltage protection and over temperature protection)

*Simple LEDs and a LCD for visualization of operation status of the equipment

Model TM-	1kW	2kW	3kW	4kW	5kW	7kW	8kW	10kW	12kW	15kW
Rated power	1kW	2kW	3kW	4kW	5kW	7kW	8kW	10kW	12kW	15kW
DC voltage	48V DC				48V DC/96V DC/192V DC				192V DC/240V DC
Input voltage	three-phase four-wire system =ground wire 380V±20%
Input frequency	45-65Hz
output voltage	110VAC/220VAC/230VAC(three-phase four-wire system)
output frequency	50Hz/60Hz
Switching time	switching from the main supply mode to the battery mode: 50ms; switching from the battery mode to the mains supply mode: 25ms
charge current	max 8A
inverter output protection	input overvoltage/undervoltage protection, DC under voltage protection, peak surge protection, overload protection 100-120%, 30s; >120%,100ms;
noise	<45dB
ambient temperature for operation	0-40ºC
ambient temperature for storage	-15-+15ºC
relative humidity for operation/storage	0-90% (no condensation)
altitude for operation	0-3000m
attitude for storage	0-15000m
net weight/gross weight	29.7/30.7		38/46.5		40.7/50.4		49.7/55.3

A. More than 10 years technical experience and advanced equipment
Our solar products are selling to all over the world, such as North America, south America,Eastern Europe, Southest Asia ,Africa and Mid-East,etc…
B. Quality Certification
80% electronic components are imported,to make sure the products with high quality and reliable excellent performance.
All of our products have CE certification, ISO9001:2008.
C. OEM & ODM
OEM & ODM are available which can meet your any request with our professional engineering team.
D. Quality Service
Any inquiry replied within 12 hours
Any problem resolved within 24 hours
With 12 months warranty
E. As a leading manufacturer,the price of our products is competitive.

A Professional Manufacturer Specialized in field of Solar power system

Foshan SNAT Energy Electrical Technology Co. Ltd is a professional manufacturer specialized in the field of solar inverters, solar inverters with controllers built-in, solar controllers, UPS which are used for household, telecom, electricity, infrastructure and industrial markets.

At the same time, our company is concurrently engaged in solar panels, batteries for solar power system. All products purchased by our company have our wanrranty commitment, parts will be shipped for free during wanrranty period.

Company information

Foshan SNAT Energy Electrical Technology Co. Ltd is established in 2004. Our company's predecessor is a trading company and engaged in UPS since 1998 and develop solar inverter since 2004. We are haveing professional technical team and focus on customers' demands, continuous innovation, and establish good cooperation with more and more clients. The leading-edge technology has become a competitive advantage for our customers and business.

Corporate development prospect

Foshan SNAT Energy Electrical Technology Co. Ltd is becoming a strong brand step by step depending on high quality and strict self-demanding. We have won a good reputation among clients. Nowadays, we have prepared well to develop much more wide international market. We sincerely wish to corporate with more and more international traders to vreat a better future!
