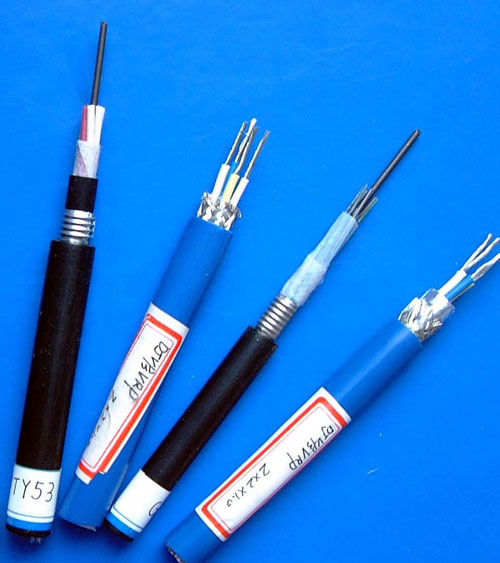

1.5mm Control Cable From Direct Factory
| Price: |
US $ 0.3/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1000/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union |
| Prod Model: |
0.6/1KV electric control cable |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Application: |
Underground |
| Conductor Material: |
Copper Clad Steel |
| Insulation Material: |
PVC |
| Certification: |
IEC |
| Brand: |
Rneda |
Product Description

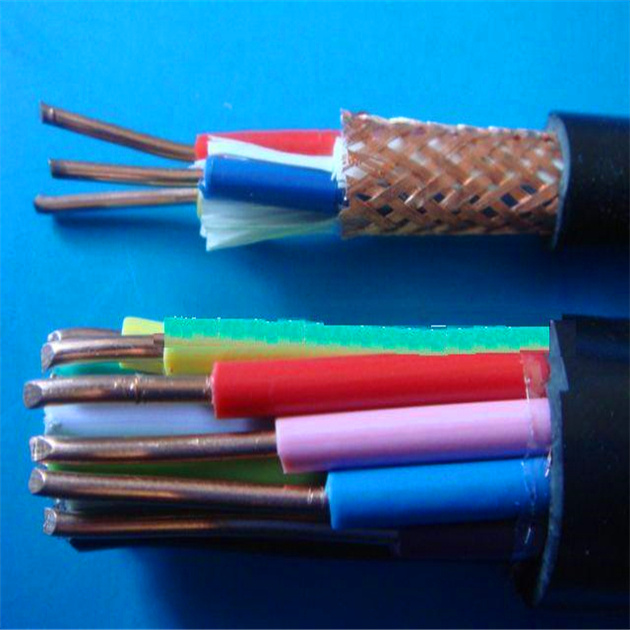

Control cable
1 Product Standard
This product is manufactured according to GB/T9330, IEC60227 and IEC60502 etc.
2 Application
The product is suitable for connection in control, signal, protection circuit and measuring system with rated power-frequency voltage 450/750V or 0.6/1KV.
3 Operating characteristics
1). Rated power-frequency voltage Uo/U: 450/750V or 0.6/1KV.
2). Max. permissible continuous operating temperature of conductor: 70ºC
3). Max. short-circuit temperature of the conductor shall not exceed: (5S maximum duration) 160ºC
4). The ambient temperature under installation should not below 0ºC. Otherwise, the cable shall be preheated.
5). The recommended bending radius of a cable should be:
Non-armored cable, not less than 6 times of the cable diameter.
Armored cable or copper tape screened cable, not less than 12 times of the cable diameter.
Shielded flexible cabel, not less than 6 times of the cable diameter.
4 Type and Name
| Type | Designation |
| KVV | Copper conductor,PVC insulated,PVC sheathed control cable |
| KVVP | Copper conductor,PVC insulated,PVC sheathed,Braided shield control cable |
| KVVP2 | Copper conductor,PVC insulated,PVC sheathed,copper tape shield control cable |
| KVV22 | Copper conductor,PVC insulated, PVC sheathed,steel tape armored control cable |
| KVV32 | Copper conductor,PVC insulated, PVC sheathed,steel wire armored control cable |
| KVVR | Copper conductor,PVC insulated,PVC sheathed flexible control cable |
| KVVRP | Copper conductor,PVC insulated,PVC sheathed,Braided shield flexible control cable |
| KVVP-22 | Copper conductor,PVC insulated,PVC sheathed,Braided shield, steel tape armored control cable |
| KVVP2-22 | Copper conductor,PVC insulated,PVC sheathed,copper tape shield,steel tape armored control cable |
5 Production range of cable
| Type | Rated volgage | Cross-sectoion of conductor
mm2 |
| 0.5 | 0.75 | 1.0 | 1.5 | 2.5 | 4 | 6 | 10 |
| Cores |
| KVV | 450/750V
or
0.6/1kV | - | 2~61 | 2~14 | 2~10 |
| KVVP | - | 2~61 | 2~14 | 2~10 |
| KVVP2 | | - | 2~61 | 2~14 | 2~10 |
| KVV22 | - | 7~61 | 2~61 | 2~14 | 2~10 |
| KVV32 | - | 19~61 | 7~61 | 2~14 | 2~10 |
| KVVR | 2~61 | - |
| KVVRP | 2~61 | 2~48 | - |
| KVVP-22 | - | 2~61 | 2~14 | 2~10 |
| KVVP2-22 | - | 2~61 | 2~14 | 2~10 |
Established in 1993, Hebei Huatong Wires and Cables Group Co., Ltd covers an area more than 220, 000 square meters, owning more than 420 sets manufacturing equipment and more than 250 sets of testing equipment or apparatus. Our annual production capacity is 3 billion Chinese Yuan. Now there are more than 800 employers in our company, among which more than 150 are technicians. With the continuous efforts from all the employers, Hebei Huatong Wires and Cables Group Co., Ltd has realized great development to become a modern enterprise and one of the comprehensive, large-scale enterprises in domestic wire and cable industry. Our products are widely used in the field of electric power, coal, metallurgy, petrochemical industry, railway, national defense, construction, aviation and other national key projects. We are JV with Furukawa(Japanese company) for rubber serial cable (minding cables, welding cables. Submersible oil pump cables, . )and also JV with Riken(Japanese company) for elevator cables. Our products have extensive influence and good reputation in both domestic and worldwide market, such as the United States, Holland, Italy, Russia, Britain, Australia, New Zealand, Ethiopia, Ghana, Algeria, South Africa, Congo, Middle East and Southeast Asia countries and so on.
Products: Power Cable, Rubber Cable, UL standard building wire cable
Certificates:
Certificate of UL. CE, KEMA, TUV, Bureau Veritas, Lloyd, IEC, GL, SA, NK, KR and "National Industrial Production License", "Certificate of Recommended Enterprises and Products for National Grid", "Adopting International Standard Certificate", and "High-Tech Enterprise Certificate", "Certificate of High Quality Products", "Certificate of Scientific and Technological Achievements", "Qualified Supplier Certificate", "China Classification Society Certificate of Works Approval", "Det Norske Veritas Type Approval Certificate", "Railway Product Certificate", "Safety Certificate of Approval for Mining Products", "National Mandatory Product Certification", "Certificate for China Compulsary Products Certification" and "Practical New-Type Patent Certificate
