1.5mm2 2.5mm 4mm 6mm 10mm 16mm Price Types Cable Wire Electrical

Name: 1.5mm2 2.5mm 4mm 6mm 10mm 16mm Price Types Cable Wire Electrical
Brand: all-electronics-online.com
SKU: 691253601
Availability: InStock
Rating: 4.3 (43 reviews)

Price:	US $ 0.1-1/Meter
Min Order:	100/Meter
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	cable wire electrical
Product Nane:	Cable Wire Electrical
Rated Voltage:	300/500V 450/750V 600/1000V
Insulation:	PVC / XLPE
Certificates:	ISO CCC Ce RoHS
Origine:	Shandong China
Color:	Red, Yellow, Blue, Green, Yellow/Green, Black etc
MOQ:	100 Meter
Packaging:	According to Different Cable Size
Shipping:	by Sea, by Train, by Air
Catalog:	Low Voltage Cable and Wire
Type:	Insulated
Conductor Material:	Copper
Certification:	GB/T Standard
Conductor Type:	Solid / Stranded
Application:	Fixed Wiring / Construction / Underground
Sheath Material:	PVC / PE
Insulation Material:	PVC / XLPE
Range Of Application:	Lsoh / Flame -Retardant
Brand:	Chanong Qing Teng

Product Description

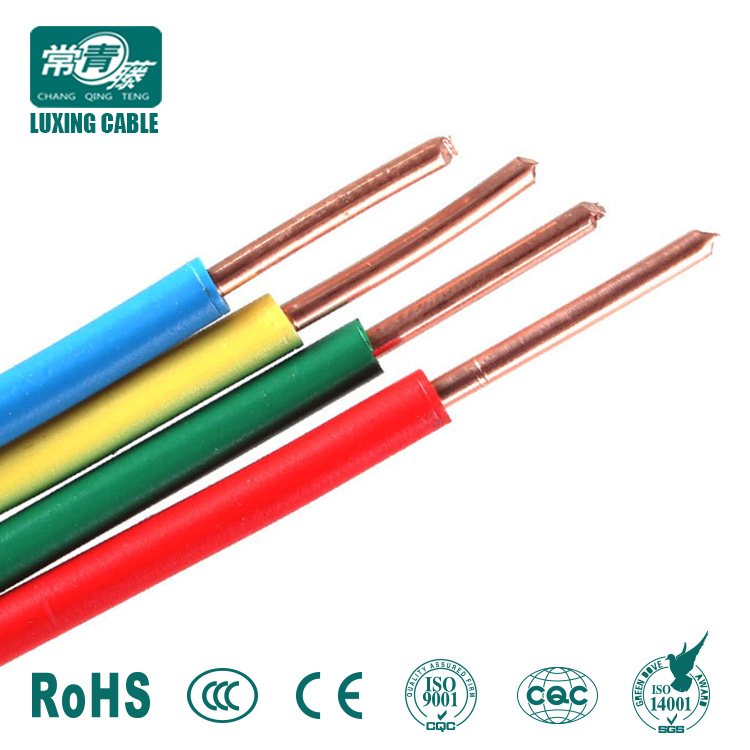

ITEM NAME :1.5mm2 2.5mm 4mm 6mm 10mm 16mm Price Types Cable Wire Electrical

Standard
BS 6004

Voltage Rating
450/750V
When installed in an earthed metal enclosure, cables are suitable for voltages up to 1000V a.c. or up to 750V
to earth d.c.

Application
Industrial wiring
These cables are intended for drawing into trunking and fixed, protected conduit. They may also be used inside installations
such as lighting fittings, appliances, switchgear and controlgear, which are to be used in normal temperature zones.

Construction
Single core cable. Solid or stranded plain copper conductor, PVC insulated only.

Insulation Colour
Black, Brown, Yellow, Blue, Red, Green/Yellow, Grey, Orange, White is also available.

Maximum conductor temperature:70°C
Maximum conductor temperature during short Circuit:160°c

Cable 20°C water into 1h,infliction 2500V volage 5min,insulated to do not roke throuth.

Product Code	Nominal cross-sectional area of conductor	Class of conductor	Thickness of insulation Specified value	Mean overall diameter
	Nominal cross-sectional area of conductor		Thickness of insulation Specified value	Lower limit	Upper limit
	mm²		mm	mm	mm
BV-1C1.5	1X1.5	1	0.7	2.6	3.2
BV-1C1.5-b	1X1.5	2	0.7	2.7	3.3
BV-1C2.5	1X2.5	1	0.8	3.2	3.9
BV-1C2.5-b	1X2.5	2	0.8	3.3	4.0
BV-1C4.0	1X4.0	1	0.8	3.6	4.4
BV-1C4.0-b	1X4.0	2	0.8	3.8	4.6
BV-1C6.0	1X6.0	1	0.8	4.1	5.0
BV-1C6.0-b	1X6.0	2	0.8	4.3	5.2
BV-1C10.0	1X10	1	1.0	5.3	6.4
BV-1C10.0-b	1X10	2	1.0	5.6	6.7
BV-1C16	1X16	2	1.0	6.4	7.8
BV-1C25	1X25	2	1.2	8.1	9.7
BV-1C35	1X35	2	1.2	9.0	10.9
BV-1C50	1X50	2	1.4	10.6	12.8
BV-1C70	1X70	2	1.4	12.1	14.6
BV-1C95	1X95	2	1.6	14.1	17.1
BV-1C120	1X120	2	1.6	15.6	18.8
BV-1C150	1X150	2	1.8	17.3	20.9
BV-1C185	1X185	2	2.0	19.3	23.3
BV-1C240	1X240	2	2.2	22.0	26.6
BV-1C300	1X300	2	2.4	24.5	29.6
BV-1C400	1X400	2	2.6	27.5	33.2

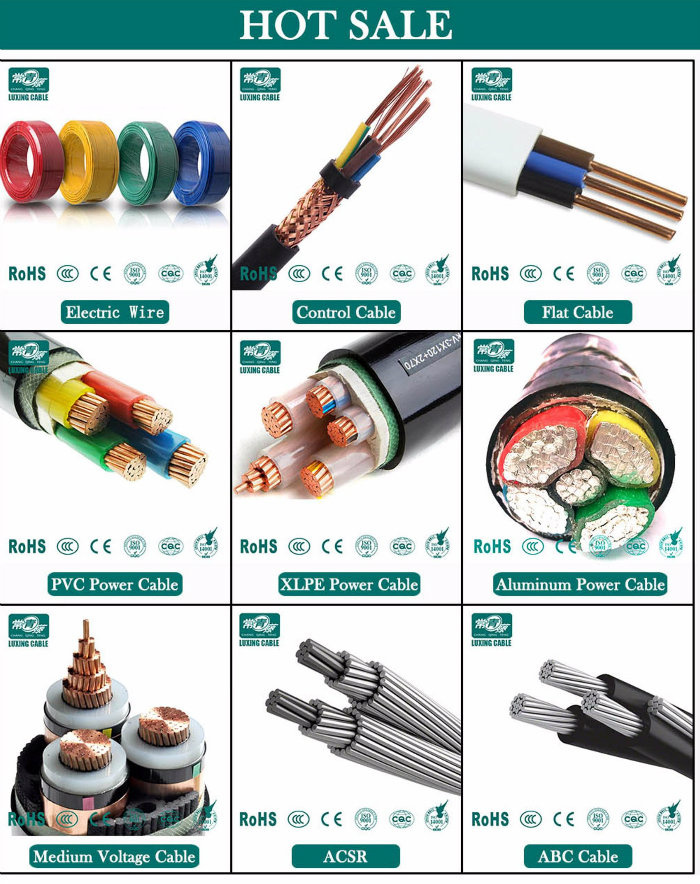

Luxing Cable Factory Mainly Produce

300/500V 450/750V electrical wire	AAC conductor
600/1000V PVC insulated cable	AAAC conductor
600/1000V XLPE insulated cable	ACSR conductor
1.8/3KV to 26/35KV power cable	OPGW
Armored underground cable	ABC cable
Control cable and instrumentation cables	Rubber cable

Factory Production Base

Hot sale products

Why choose us?

1. Advanced process equipment

2. Competitive price and high quality

3. Excellent after-sale service

4. Attractive design and various styles

5. Powerful technology R&D team

6. Strict quality assurance system and perfect testing means

7. Advanced process equipment

8. Delivery on time

9. Have a good reputation in the domestic and overseas.

Contact us

1) About Luxing Cable Factory:

-Shandong New Luxing Cable Co., Ltd established in the year of 1999.

-The headquarter is located in Jinan City, the capital of Shandong province, China.

-Registered capital of USD16.5 million, Legal representative Wang Xiuzhen.

-Luxing Cable Factory is located in Linyi Economic Development ZoneCovering an area of more than 60 acres.

-Shandong New Luxing Cable Co., Ltd has more than 150 employees, which college degree more than 50 people.

2)Why Choose Luxing Cable Factory?

-Luxing cable, the designated supplier of China's national grid construction.

-We provid high-quality cables for our clients for more than 18 years.

-The professional, safe and reliable of Luxing factory gained great trust and praise from our customers.

-Serve you any time.

3)The Product of Luxing Cable Factory

-300/500V 450/750V electrical wire

-600/1000V PVC insulated cable

-600/1000V XLPE insulated cable

-1.8/3KV to 26/35KV power cable

-Armored underground cable

-Control cable and instrumentation cables

-ABC cable

-AAC conductor

-AAAC conductor

-ACSR conductor

-OPGW

-Rubber cable

4)Product application

-Used for open air installation, for direct burrial underground, in water, in cable ducts, power stations, for industry and distribution boards and so on.

-Power transmission and distribution project bids we can work, cable retail and wholesale, regional agent we can cooperate.

5)Production Market

-Supply power cables & electrical wire to

South America(Brazil...),

East Asia(Korea...),

Africa(Uganda, South Africa, Zimbabwe...),

Southeast Asia(Myanmar, Thailand, Indonesia, Philippines, Malaysia, Cambodia...),

Europe(Czech Republic...) to global market.

-Had fixed partnership with SGCC&STATE GRID CORPORATION OF China (China largest power enterprise) and many other our country State-owned big enterprise.

6)Our service

-We guarantee that we will comply with the requirements of warranty period specified in the contract, that the Goods supplied under the purchase order For Procurement of self-carrying distribution network's cable and wire.

-We will be manufactured under this specification and that the Goods will be new, unused, of the most recent or current models. Once we are selected, we will supply the Goods strictly according to the requirements of the Contract.

-The warranty shall remain valid for twelve (12) months after the Goods, or any portion thereof as the case maybe, have been delivered to and accepted at the final destination indicated in the SCC, or for eighteen (18) months after the date of shipment from the port or place of loading in the country of origin, whichever period concludes earlier.

-During the warranty period purchaser may proclaim directly to the manufacturer in the written form or by the agent if there is any problem in Goods quality. The manufacturer will do the repair or replacement in reasonable time, and will bear all the expenses relating to this.
