1.65mm 12 Core Single Mode FTTH Air Blown Fiber Unit

Name: 1.65mm 12 Core Single Mode FTTH Air Blown Fiber Unit
Brand: all-electronics-online.com
SKU: 812850335
Availability: InStock
Rating: 4.5 (129 reviews)

Price:	US $ 0.5-0.7/Meter
Min Order:	5000/Meter
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	FU-12B1.3
Fiber Counts:	12 Core
Laying Method:	Air Blown in Microduct
Application:	Communication
Type:	Single-mode Fiber
Certification:	CCC
Sheath Material:	HDPE

Product Description

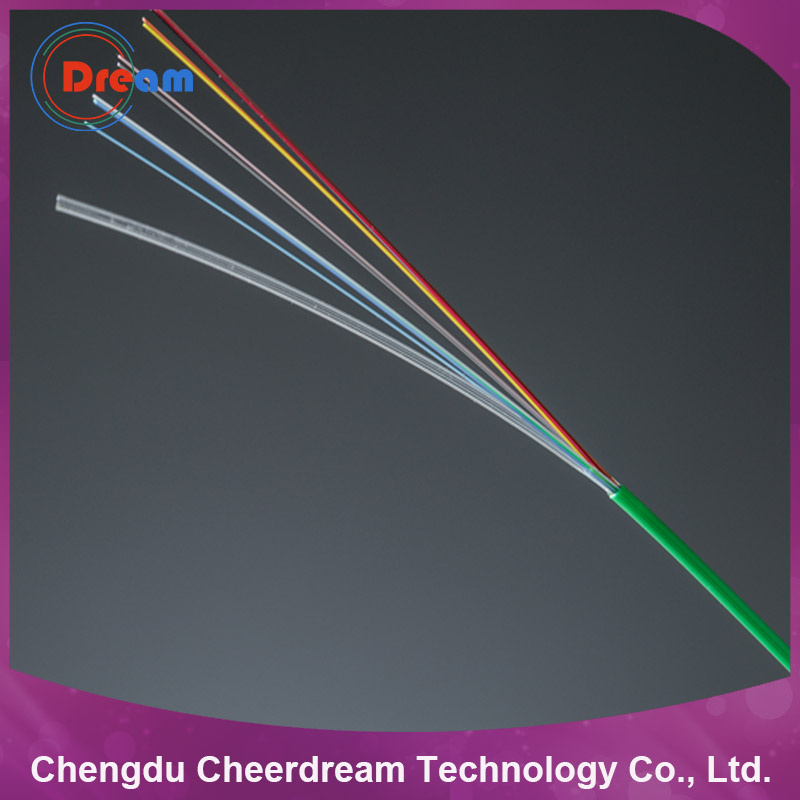

1.65mm 12 core single mode FTTH air blown fiber unit

A. Product Description
Enhanced Performance Fiber Unit (EPFU) is small size, light weight, enhanced surface outer sheath fiber unit designed for blowing into micro tube bundles by air flow. The outer thermoplastic layer provides a high level of protection and excellent installation properties.

B. Features and Benefits
1. 2, 4, 6, 8 and 12 fibers options
2. Smaller diameter
3. Stable structure, good mechanical and temperature performance
4. Better costs advantage compared to traditional product
5. Frees up capital to expand network and client base
6. Network design flexibility
7. 5/3.5mm microduct suitable
8. Easy to install and upgrade
9. Greater blowing distance
10. Fiber: G.G652D, G.657A1, G.657A2

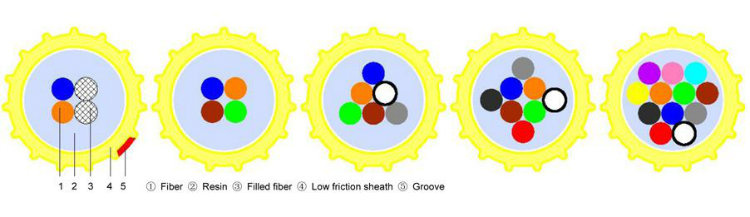

C. Fiber Unit Structure

D. Parameter

Fiber Count	2 Fibers	4 Fibers	6 Fibers	8 Fibers	12 Fibers
Outer Diameter(mm)	1.15±0.05	1.15±0.05	1.35±0.05	1.50±0.05	1.65±0.05
Weight (kg/km)	1	1	1.3	1.8	2.2
Min Bend Radius(mm)	50	50	60	80	80
Temperature	Storage:-30ºC ~ +60ºC Operation:-20ºC ~ +60ºC Installation:-5ºC ~ +50ºC

E. Blowing Performance

Fiber Count	2 Fibers	4 Fibers	6 Fibers	8 Fibers	12 Fibers
Blowing Machine	PLUMETTAZ: UM25, ERICSSON: F, CATWAY: FBT-1.1
Microduct	3/2.1mm or 5/3.5 mm
Blowing Pressure	7bar / 10bar
Blowing Distance	500m / 1000 m	500m / 1000m	500m / 1000m	500m / 1000m	500m / 800m
Blowing Time	10 min / 18 min	10 min / 18 min	12 min / 18 min	13 min / 18 min	15 min / 20 min

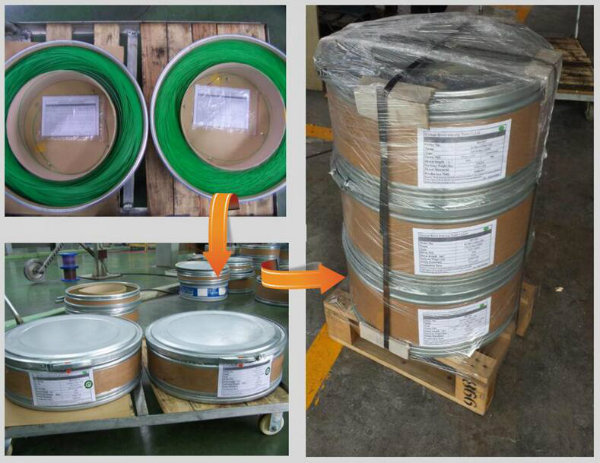

F. Packing
Free coiling in the pan

Fiber Count	Length (m)	Pan Size Φ×H (mm)	Weight (Gross) (Kg)
2~4 Fibers	2000m	Φ560×120	8
2~4 Fibers	4000m	Φ560×180	10
6 Fibers	2000m	Φ560×180	9
6 Fibers	4000m	Φ560×240	12
8 Fibers	2000m	Φ560×180	10
8 Fibers	4000m	Φ560×240	14
12 Fibers	1000m	Φ560×120	8
	2000m	Φ560×180	10.5
	4000m	Φ560×240	15
