432 Core Air Blown Micro Fiber Optic Cable

Name: 432 Core Air Blown Micro Fiber Optic Cable
Brand: all-electronics-online.com
SKU: 820343755
Availability: InStock
Rating: 4.5 (28 reviews)

Price:	US $ 0.1-4.9/Meter
Min Order:	5000/Meter
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	Micro-432B1.3-PA
Installation Way:	Air Blown in Microduct
Fiber Count:	432 Core
Fiber Type:	Sm/mm
Weight:	75kg/Km
Drum Length:	2km, 4km, 6km
Application:	Communication
Certification:	CCC
Sheath Material:	HDPE

Product Description

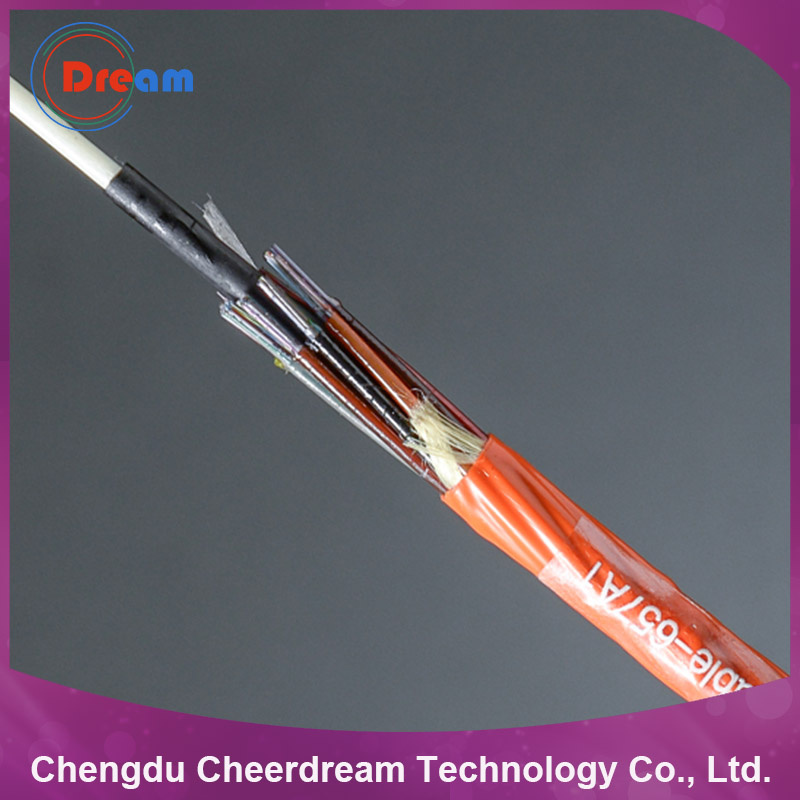

432 Core Air Blown Micro Fiber Optic Cable

A. Product Description
Air Blown Micro Cables are ultra lightweight with and small diameter and designed for metro feeder or access network to be blown into a micro duct by air-blown installation. As the cable allows the deployment of currently required fiber count, the micro cable provides a lower initial investment and the flexibility to install and upgrade to the latest fiber technologies after the initial installation.

B. Features and Benefits
1. 24~432 cores fiber optic cable
2. Perfect cable structure with high fiber density
3. Accurate fiber length balance to ensure stable performance
4. No gel in cable core for water blocking
5. Sheath structure innovation to enhance blowing performance
6. Greater blowing distance
7. Fiber: G.652D, G.657A1, G.657A2

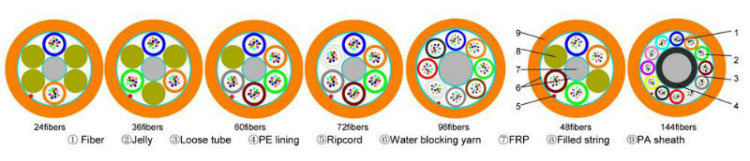

C. Cable Structure

D. Parameter

Fiber Count (F)	Outer Diameter(mm)	Weight (kg/km)	Max tensile strength (N)	Temperature
24	4.4±0.2	19	200	-40ºC ~ +70ºC
36	4.4±0.2	19	200
48	4.4±0.2	19	200
60	4.4±0.2	19	200
72	4.4±0.2	19	200
96	5.3±0.2	28	500
144	6.0±0.2	33	500
192	6.9±0.2	52	1000
240	7.9±0.2	60	1000
288	7.9±0.2	60	800
432	9.3±0.2	75	800

E. Blowing Performance

Fiber Count	24~144 Fibers	192~288 Fibers	432 Fibers
Microduct	10/8mm	12/10mm	14/12mm
Blowing Machine	PLUMETTAZ PR-140; MiniJet-400
Blowing Pressure	10 to 15bar
Blowing Distance	1500m	1500m	1500m

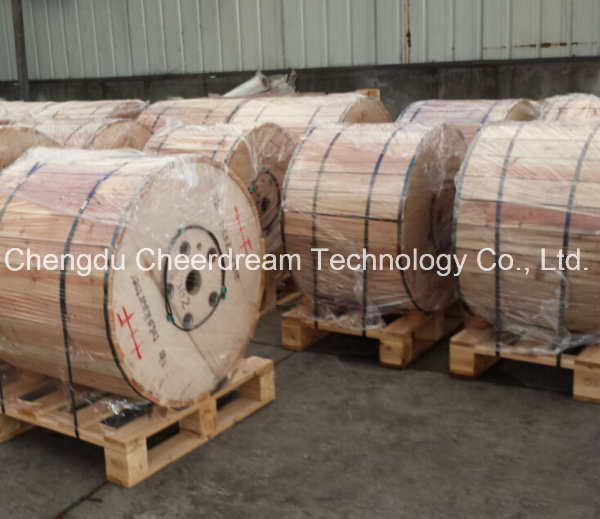

F. Packing:

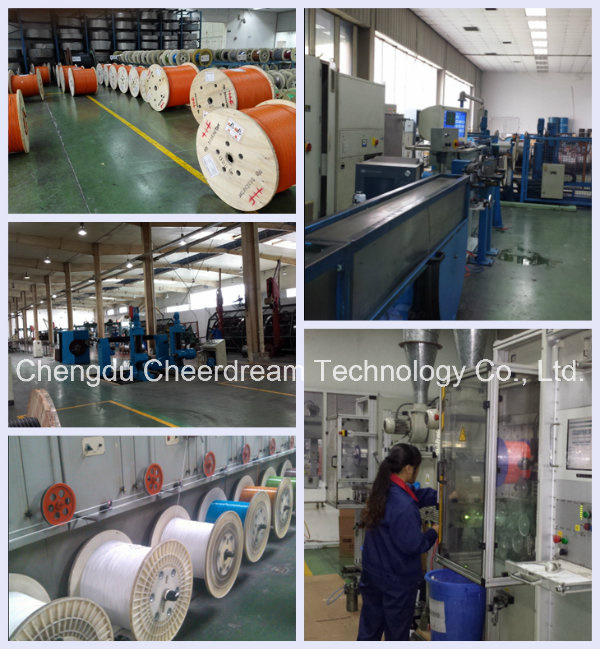

G. Factory:

H. FAQ:

1. Where is your company?

Our company lacated in Chengdu City, Sichuan Province. Welcome to visit our company.

2. Is the fiber optic cable sample available?

Yes, we can provide free samples of the fiber optic cable for you to check the quanlity.

3. Can you provide OEM service?

Yes, we can provide OEM service.

I. Our Services:

1. Your inquiry related to our products or prices will be replied in 6 hours

2. Well-trained and experienced staffs to answer all your enquires in fluent English

3. Best after-service

4. Supply full accessories related to our main products

Chengdu Cheerdream Technology Co., Ltd. Was established in 2008, specialized in fiber optic area. Our company has established cooperation relationship with more than 20 countries for years.

We are specialized in air blown project for FTTH, including air blown fiber optic cable, microducts and accessories. And we supply plastic fiber optic, EL wire and glass fiber optic for years.

Our company has provided full types of fiber optic products and accessories for our clients from more than 20 countries, such as Thailand, Indonesia, U. S. A., Saudi Arabia, Zambia, Colombia, Philippine, Bulgaria, and so on.

Cheerdream Company has passed ISO9001 Quality Management System Certification. From the raw materials selection to manufacturing, from industrial design to brand management, we always focus on every detail. Our principles are "Quality-cored", "Customer-obligated". We have full desire for the future and unremitting efforts, willing to work with you to create brilliant.
