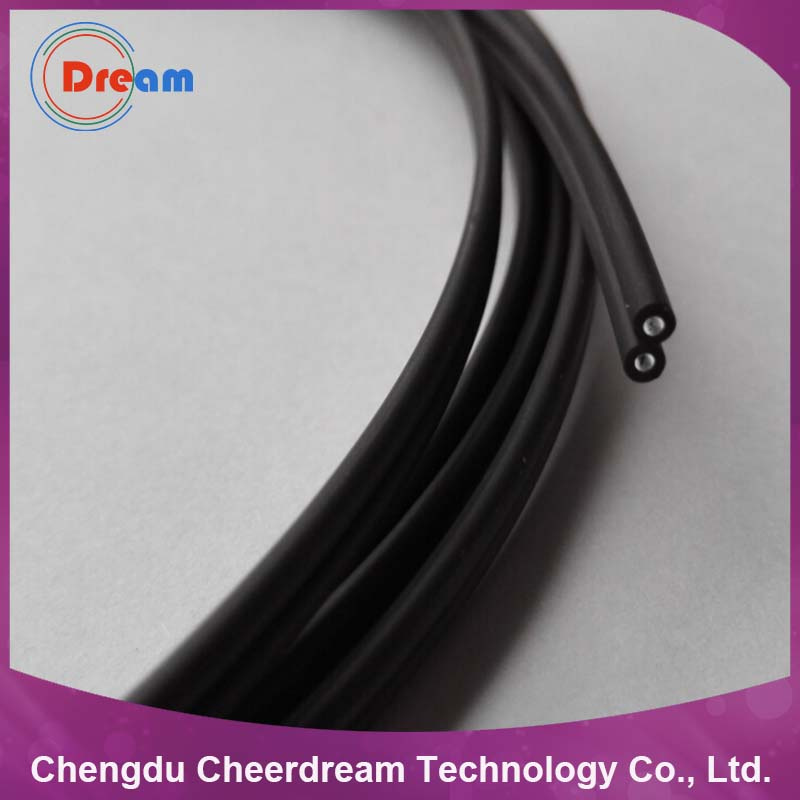

PMMA Duplex Plastic Fiber Optic Cable for Communication

Name: PMMA Duplex Plastic Fiber Optic Cable for Communication
Brand: all-electronics-online.com
SKU: 833052955
Availability: InStock
Rating: 4.8 (26 reviews)

Price:	US $ 0.3-0.4/Meter
Min Order:	500/Meter
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	DC2-1000
Fiber Diameter:	1.0mm
Cable Diameter:	2.2X4.4mm
Fiber Material:	PMMA
Jacket Material:	PE
Attenuation:	Less Than 0.2dB/M
Numerical Aperture:	0.5
Wavelength:	650nm
Bend Radius:	More Than 10 Times of Fiber Diameter (Temporary)
Refractive Index:	Step Index
Application:	Communication
Certification:	ISO9001
Sheath Material:	PE

Product Description

PMMA Duplex Plastic Fiber Optic Cable for Communication

A. Applications:
1) Sensor signal transmission
2) Industrial control signal transmission
3) Audio signal transmission
4) Power system signal transmission
5) ITN and LAN
6) Auto multimedia signals or control signal transmission
7) Consumer electronics signal transmission

B. Features:
It is made of 2 pieces of parallel POF cable, of "8"structure. Have all features of CC series plastic optical fiber cable. Providing easy construction work, saving cable-occupied space and delivering smoother look. Comply with the YD/T 1447-2006 and YD/T 1258.6-2006, the state communications industry standard.

C. Specifications:

Model	Fiber diameter(mm)	Cable diameter(mm)	Coil length (m)	Fiber Number
DC2-1000	1.0±0.06	2.2×2±0.2	500/1000	2
DCW2-1000	Black PE with white stripe
DC2-1000W	White PE sheath

D. Technical Parameters:

Parameters	Unit	Numerical value
Fiber material	---	PMMA/ Fluororesin
Jacket material	---	PE
Jacket color	---	black, white
Attenuation	dB/m	≤ 0.2
NA	---	0.5
Wavelength	nm	650
Incident angle	---	≤ 60 °
Bandwidth	MHz 100m	≥ 10
Bend radius	---	≥ 10 times of fiber diameter
Operating temperature	ºC	-55~85
Storage temperature	ºC	-40~70
Refractive index	---	Step index

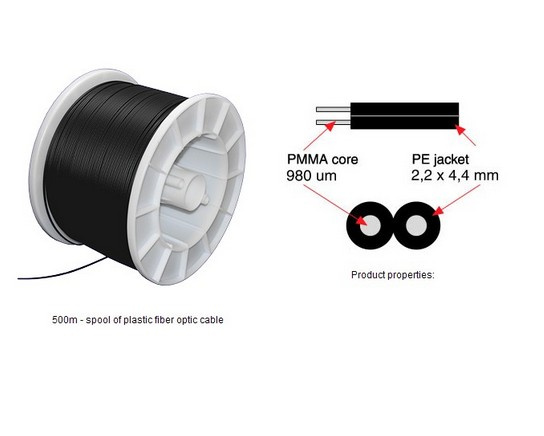

E. Cable Structure:

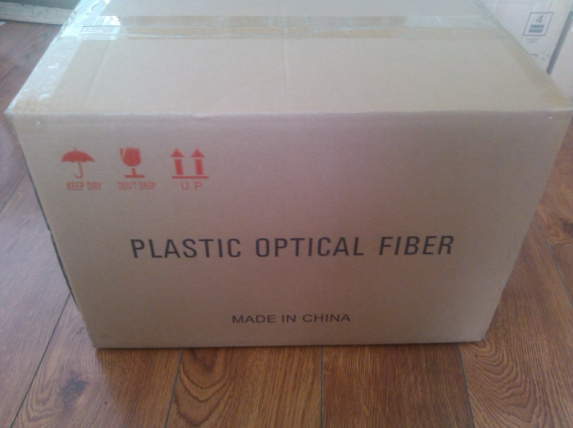

F. Packing:

G. FAQ:
1. Where is your company?
Our company lacated in Chengdu City, Sichuan Province. Welcome to visit our company.
2. Is the PMMA fiber optic cable sample available?
Yes, we can provide free samples of the fiber optic cable for you to check the quanlity.
3. Can you provide OEM service?
Yes, we can provide OEM service.

H. Our Services:
1. Your inquiry related to our products or prices will be replied in 6 hours
2. Well-trained and experienced staffs to answer all your enquires in fluent English
3. Best after-service
4. Supply full accessories related to our main products

Chengdu Cheerdream Technology Co., Ltd. Was established in 2008, specialized in fiber optic area. Our company has established cooperation relationship with more than 20 countries for years.

We are specialized in air blown project for FTTH, including air blown fiber optic cable, microducts and accessories. And we supply plastic fiber optic, EL wire and glass fiber optic for years.

Our company has provided full types of fiber optic products and accessories for our clients from more than 20 countries, such as Thailand, Indonesia, U. S. A., Saudi Arabia, Zambia, Colombia, Philippine, Bulgaria, and so on.

Cheerdream Company has passed ISO9001 Quality Management System Certification. From the raw materials selection to manufacturing, from industrial design to brand management, we always focus on every detail. Our principles are "Quality-cored", "Customer-obligated". We have full desire for the future and unremitting efforts, willing to work with you to create brilliant.
