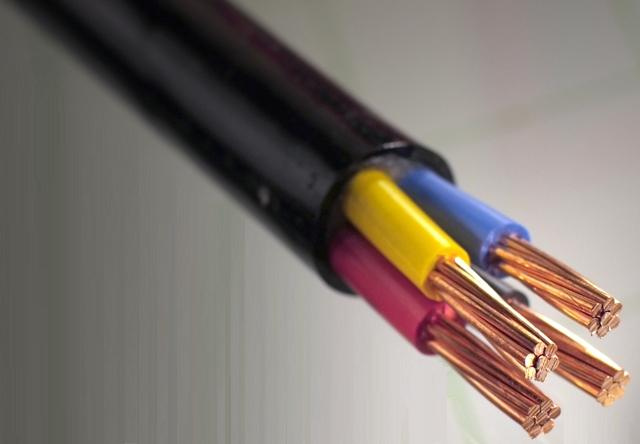

1.8/3.6kv XLPE Insulated PVC Sheathed Unarmoured Power Cable

Name: 1.8/3.6kv XLPE Insulated PVC Sheathed Unarmoured Power Cable
Brand: all-electronics-online.com
SKU: 711241382
Availability: InStock
Rating: 4.8 (106 reviews)

Price:	US $ 0.76-0.8/Meter
Min Order:	1000/Meter
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	XLPE cable BM37
Option Conductor:	Aluminum
Application:	Underground
Voltage:	Low and Medium Voltage Cable
Current:	DC & AC
Insulation Material:	XLPE
Certification:	VDE
Brand:	Yifang

Product Description

1.8/3.6KV XLPE Insulated PVC Sheathed Unarmoured Power Cable

Single Core (Unarmoured )

Conductor			Nominal Thickness of Insulation ( mm )	Copper screen tape ( mm )	Nominal Thickness of Sheath ( mm )	Approx Overall diameter ( mm )	Approx Weight ( kg/km )	Insulation resistance at 15.6°C (Min.) ( Mohm/km)
Size (mm2)	Shape	Outside diameter ( mm )	Nominal Thickness of Insulation ( mm )	Copper screen tape ( mm )	Nominal Thickness of Sheath ( mm )	Approx Overall diameter ( mm )	Approx Weight ( kg/km )	Insulation resistance at 15.6°C (Min.) ( Mohm/km)
10 16 25 35 50	N.C. N.C. N.C. N.C. N.C.	4.05 5.10 6.42 7.56 8.90	2.0 2.0 2.0 2.0 2.0	0.1 0.1 0.1 0.1 0.1	1.4 1.4 1.4 1.4 1.4	12.4 13.4 14.8 16.0 17.5	245 318 427 540 682	1800 1550 1300 1130 1000
70 95 120 150 185	N.C. N.C. N.C. N.C. N.C.	10.70 12.60 14.21 15.75 17.64	2.0 2.0 2.0 2.0 2.0	0.1 0.1 0.1 0.1 0.1	1.5 1.6 1.6 1.7 1.8	19.5 21.5 23.2 24.4 26.9	914 1197 1462 1736 2135	850 740 670 610 550
240 300 400 500 630	N.C. N.C. N.C. N.C. N.C.	20.25 22.68 25.65 28.80 32.76	2.0 2.0 2.0 2.2 2.4	0.1 0.1 0.1 0.1 0.1	1.9 1.9 2.0 2.2 2.3	29.7 32.4 35.6 39.4 44.2	2734 3363 4219 5266 6755	500 440 390 390 370
800 1000	N.C. N.C.	37.05 41.60	2.6 2.8	0.1 0.1	2.5 2.7	49.5 54.9	8565 10707	360 340

Three Core (Unarmoured )

Conductor			Nominal Thickness of Insulation ( mm )	Copper screen tape ( mm )	Nominal Thickness of Sheath ( mm )	Approx Overall diameter ( mm )	Approx Weight ( kg/km )	Insulation resistance at 15.6°C (Min.) ( Mohm/km)
Size (mm2)	Shape	Outside diameter ( mm )	Nominal Thickness of Insulation ( mm )	Copper screen tape ( mm )	Nominal Thickness of Sheath ( mm )	Approx Overall diameter ( mm )	Approx Weight ( kg/km )	Insulation resistance at 15.6°C (Min.) ( Mohm/km)
10 16 25 35 50	N.C. N.C. N.C. N.C. N.C.	4.05 5.10 6.42 7.56 8.90	2.0 2.0 2.0 2.0 2.0	0.1 0.1 0.1 0.1 0.1	1.8 1.8 1.8 1.9 2.0	24.5 26.7 29.8 32.4 35.7	765 995 1352 1712 2165	1800 1550 1300 1130 1000
70 95 120 150 185	N.C. N.C. N.C. N.C. N.C.	10.70 12.60 14.21 15.75 17.64	2.0 2.0 2.0 2.0 2.0	0.1 0.1 0.1 0.1 0.1	2.2 2.3 2.4 2.5 2.7	39.9 44.3 48.3 51.9 56.3	2901 3805 4654 5564 6793	850 740 670 610 550
240 300 400	N.C. N.C. N.C.	20.25 22.68 25.65	2.0 2.0 2.0	0.1 0.1 0.1	2.9 3.0 3.3	62.3 68.0 74.9	8698 10690 13410	500 440 390

Zhengzhou Yifang Cable Co., Ltd is a large joint-stock\hi-tech enterprise established in 1988. We are specialized in wires & cables, including designment, production and sales.

There are more than 500 staffs in our factory including over 50 technical personnel, 5 senior engineers. With complete advanced cable producing equipments over 150 sets, complete testing equipments, a national level fire-resistant & flame retardant cable laboratory. Our technology has reached advanced levels at home and abroad.

Our main products include: Power Cable for voltage up to 220KV, Overhead insulated cable, ABC Cable, Building Cable and flexible cord, Control Cable, Rubber Cable, Bare Conductor(ACSR, AAC, AAAC, BCC), Welding Cable, Galvanized Steel Wire(Stay wire), flame retardant mining cable, etc

We have own IM/EX right, our products have been exported to Europe, Australian, Middle-east, South-east Asia, Africa, American, South American etc., being subjected to consistent good opinion of customers.
