Single Core 1X300 Medium Voltage XLPE Power Cable

Prod Model:	YJV YJLV
Application:	Power Station
Voltage:	Low and Medium Voltage Cable
Current:	DC & AC
Insulation Material:	XLPE
Certification:	CE
Model:	Yjv32
Brand:	Yifang Cable

Product Description

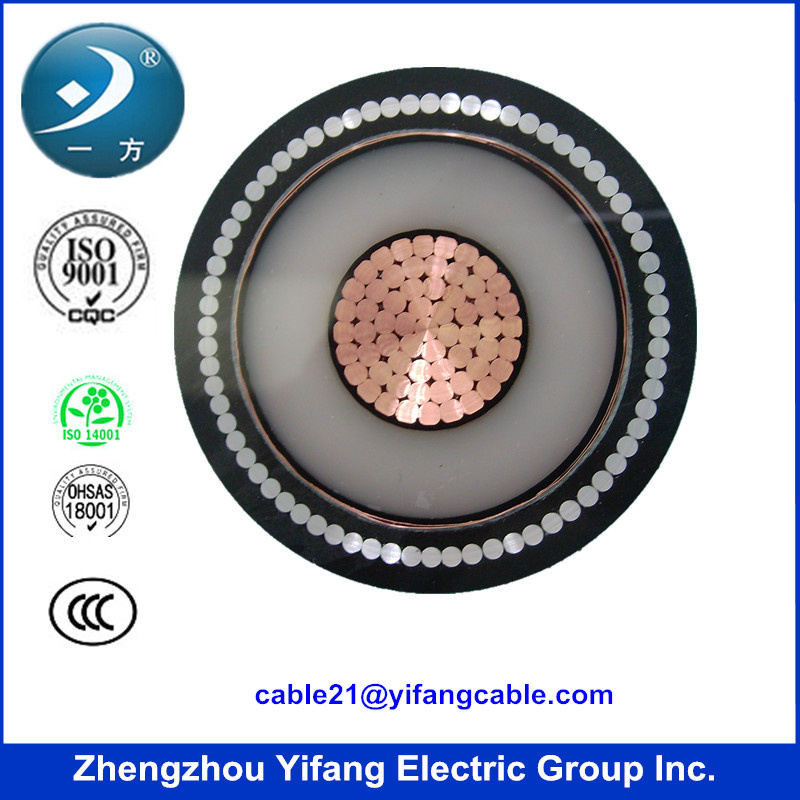

Single Core 1X300 Cable Medium Voltage XLPE Power Cable

-Conductor: Solid or stranded Aluminum or copper
-semi condcutor screen
-Insulation: Cross-linked polyethylene( XLPE)
-inslation screen
-Filler:
Polypropylene lament with lapped binding tape
-Inner Sheath:
Polyvinyl chloride (Black)
-Armor:
Galvanized steel wire/steel tape/Unarmored/Aluminum wire
-Core-covering: Binding tape
-Outer Sheath: Polyvinyl chloride (Black)

-Application:
For use in ducts, trays and direct burial in ground. The cable is subject to immerse in water all the time.
-Standards / Testing Specications: IEC 60502-2.

Detailed Product Description

XLPE insulated power cable has a number of advantages over paper insulated and PVC insulated cable. XLPE cable has high electric strength, mechanical strength, high-ageing resisting, environmetal stress resisting antichemical corrossion, and it is simple construction, using convenient and higher operating of long term temperature. It can be laid with no drop restriction.

Various of flame-retardant and non-flame retardant XLPE cable can be manufactured with three technology(peroxide, silane and irradiation crosslinking). The flame-retardant cable covers all kinds of low-smoke low-halogen low-smoke halogen free, and non-smoke nonhalogented and three classes of A, B, C.

Our XLPE cable can be manufactured according to companys specification which is equivalent to IEC 60502, IEC 60332, and IEC 60754. Some of indexes are superior to above international standard IEC.

Some of special XLPE cable can be manufactured according to the other standards required by customs.

XLPE cable having higher long-term working temperature and greater current rating, at the same environment XLPE cable may be reduced size(nominal cross-section)1or 2 class in comparison with paper and PVC cable. This is not only improve the quality and properties of products, but also reduce cables production costs.
