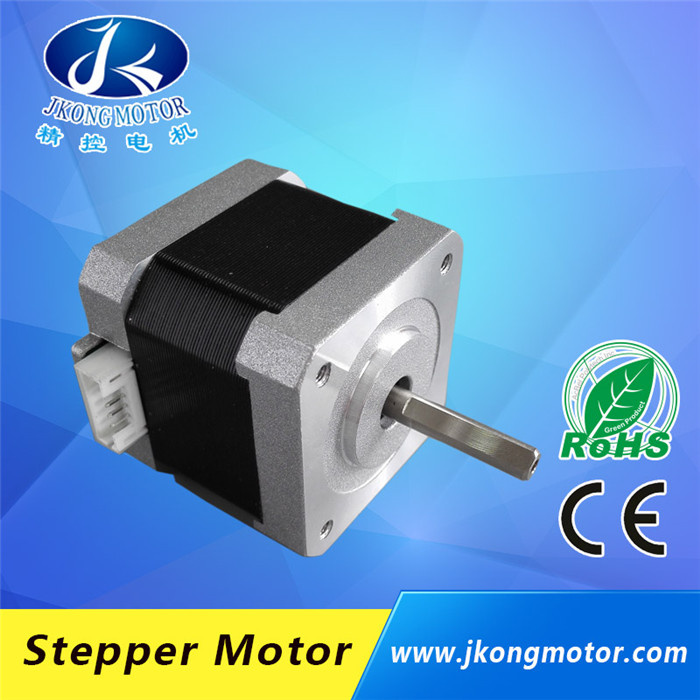

1.8 Degree 2 Phase NEMA17 42mm Stepper Motor High Torque Hot SLES Stepper Motors for 3D Printer

1.8 Degree 2 Phase NEMA17 42mm Stepper Motor High Torque Hot SLES Stepper Motors for 3D Printer
Price: US $ 4-9/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: JK42HS48-1684AF
Name: High Torque 2 Phase NEMA17 42mm Stepper Motor
Length: Custom
Max Axial Force: 10n
Max. Radial Force: 28n
Label: Custom
Number Of Stator: Two-Phase
Excitation Mode: HB-Hybrid
Type: Electromechanical
Operate Mode: Operate with a Motor Drive
Certification: Ce, RoHS, SGS
Brand: Jingkong

Product Description



1.8 degree 2 phase NEMA17 42mm stepper motor high torque hot sles stepper motors for 3D printer




General Specification:

Step Angle  Accuracy: ±5%
Resistance Accuracy: ±10%
Inductance Accuracy: ±20%
Temperature Rise: 80°C Max
Ambient Temperature: -20°C~+50°C
Insulation Resistance: 100MΩ Min., 500VDC
Dielectric Strength:  500VAC for one minute
Shaft Radial Play:  0.02Max (450g-load)
Shaft Axial Play: 0.08Max (450g-load)

Specification:
Model No.Step AngleMotor LengthCurrent
/Phase
Resistance
/Phase
Inductance
/Phase
Holding Torque# of LeadsDetent TorqueRotor InertiaMass
( °)(L)mmAΩmHkg.cmNo.g.cmg.cmKg
JK42HS34-09561.8340.954.22.51.66120340.22
JK42HS34-04061.8340.424151.66120340.22
JK42HS34-03161.8340.3138.5211.66120340.22
JK42HS34-13341.8341.332.12.52.24120340.22
JK42HS40-12061.8401.23.33.22.66150540.28
JK42HS40-08061.8400.87.56.72.66150540.28
JK42HS40-04061.8400.430302.66150540.28
JK42HS40-16841.8401.681.653.23.64150540.28
JK42HS48-12061.8481.23.32.83.176260680.35
JK42HS48-08061.8480.87.56.33.176260680.35
JK42HS48-04061.8480.430253.176260680.35
JK42HS48-16841.8481.681.652.84.44260680.35
JK42HS60-12061.8601.2676.562801020.5




Applications:
Used for robots stepper motor,
electronic automatic equipment stepping motor,
medical instrument stepping motor,
advertising instrument stepper motor,
lighting& audio equipment stepper motor,
printer stepper motor, textile machinery stepper motor.
Cnc router stepper motor.
Packing:

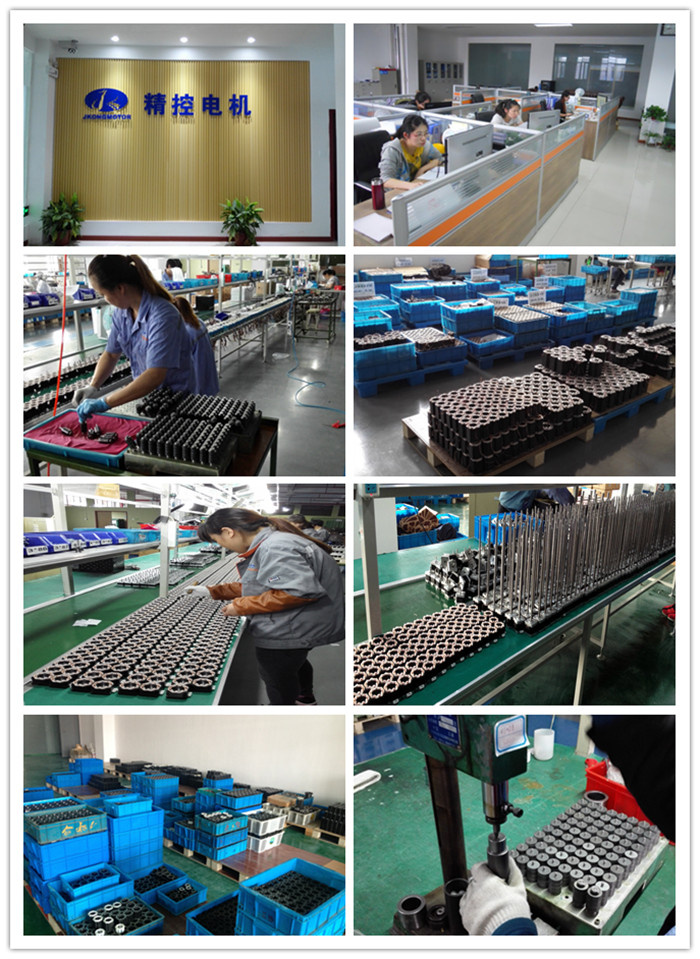

Changzhou Jingkong Motor&Electric Appliance Co., Ltd. Was found in 2005 located in High Technology Industry Zone in changzhou, China, has more than 100 staff and occupies an area of more than 3000 square meters. Now we are already passed RoHS and CE testing.

We offer excellent stepper motors, Stepper Motor Driver, DC Servo Motor, stepper Motor Power Supply, Stepper Motor Kit, CNC router. These are the best motors on the market. Stepper Motor is used on CNC router, CNC lathes, small to MID-sized CNC mills & milling machines, Laser Engravers and Laser cutters, Vinyl Sign Cutters, CNC Plasma Cutters, and CNC Foam Cutters. The stepper motor also has been used in precision telescope positioning systems and robots. Low inductance and high torque make these Motor the best choice.

We are an professional manufacturer for stepper motor, stepper driver, BLDC motor and DC motor.

We make hybrid stepper motor, hybrid gear stepper motor, hybrid stepper motor driver, brushless DC motor. Spindle motor,

For stepper motor mainly have 20mm(8), 28mm(NEMA 11), 35mm(NEMA 14), 39mm(NEMA 16), 42mm(NEMA 17), 57mm(NEMA 23), 60mm (NEMA24), 86mm (NEMA 34), 110mm (NEMA 42) and so on.

Competotive price and high quality. Hope can cooperate with you.
