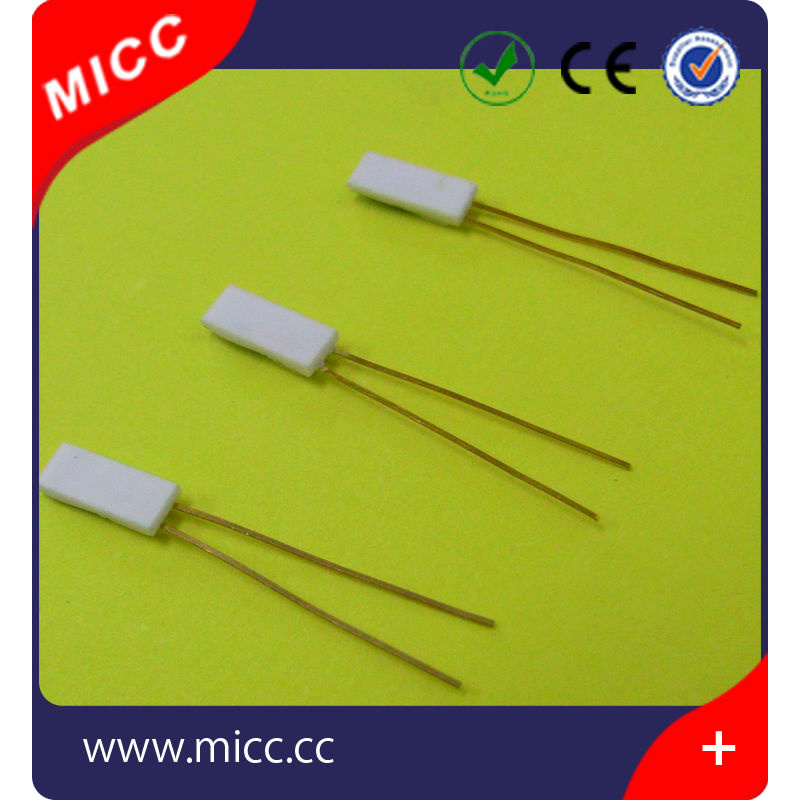

1.9x2.3mm Thin Film

Name: 1.9x2.3mm Thin Film
Brand: all-electronics-online.com
SKU: 688574805
Availability: InStock
Rating: 4.8 (109 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	100/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

M series PRTDs are designed for large volume applications where long term stability, interchangeability and accuracy over a large temperature range are vital. Typical applications are Automotive, White goods, HVAC, Energy management, Medical and Industrial equipment.
The measuring point for the nominal resistance is defined at 8mm from the end of the sensor body.

Nominal Resistance R0	Tolerance DIN EN 60751 1996-07	Tolerance DIN EN 60751 2009-05	Order Number Plastic Bag	Order Number Plastic Box
100 Ohm at 0º C	Class 1/3B	F 0.1		32 208 466
	Class A	F 0.15	32 208 715	32 208 465
	Class B	F 0.3	32 208 714	32 208 440

Specification	DIN EN 60751 (according to IEC 751)
Temperature range	-70º C to +500º C (continuous operation) (temporary use to 550º C possible) Tolerance Class B: -70º C to +500º C Tolerance Class A: -50º C to +300º C Tolerance Class 1/3 B: 0º C to +150º C
Temperature coefficient	TCR = 3850 ppm/K
Leads	Pt clad Ni- wire Recommended connection technology: Welding, Crimping and Brazing
Lead lengths (L)	10mm ± 1mm
Long-term stability	max. R0-drift 0.04% after 1000 h at 500º C
Vibration resistance	at least 40g acceleration at 10º C to 2000 Hz, depends on installation
Shock resistance	at least 100g acceleration with 8ms half sine wave, depends on installation
Environmental conditions	unhoused for dry environments only
Insulation resistance	> 100 MΩ at 20º C; > 2 MΩ at 500º C
Self heating	0.4 K/mW at 0º C
Response time	water current (v= 0.4m/s): t0.5 = 0.05s t0.9 = 0.15s air stream (v= 2m/s): t0.5 = 3.0s t0.9 = 10.0s
Measuring current	100Ω : 0.3 to 1.0 mA 1000Ω : 0.1 to 0.3 mA (self heating has to be considered)
Note	Other tolerances, values of resistance are available on request

MICC TECH. LIMITED is a professional export-oriented company which located in Nanjing, one of largest commercial city in China. We mainly produce thermocouple wire, thermocouple connector, thermocouple head, MI cable, FeCrAl wire, NiCr wire, CuNi wire, pure nickel wire and thermocouple bare wire. Our company has been engaged in these fields for more than 5 years and has a sound reputation and credits among the foreign customers with our great variety of first-rate quality products and good services. Our selling net-work has expanded to Europe, South America, Middle East etc. OEM order is welcomed and well done!

According to international standard, we introduce new techniques and new processes, so we can keep improving product quality. There are strict processes and quality manages to make sure the products keep updated, and be well received by users.

We warmly welcome all client friends to visit us and talk about business. We have established excellent business relationships with lots of our old partners based on equality, mutual benefit, customer first & service foremost, contract respecting. We look forward to your business negotiation and will sincerely be your best trade partner.
