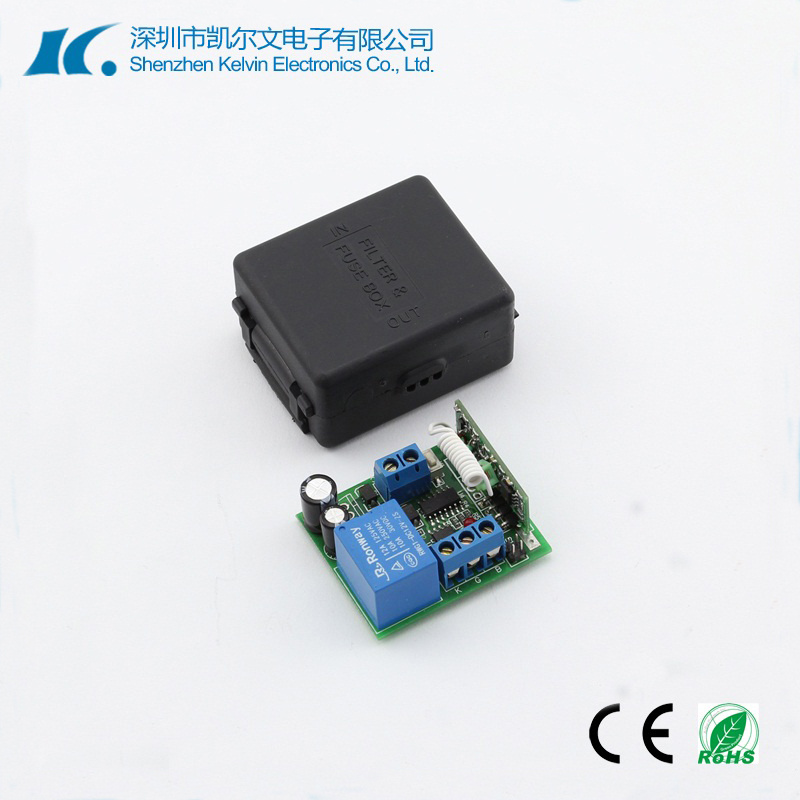

1 Channel Universal Wireless RF Remote Controller Kl-K103X

Prod Model:	KL-K103X
Ambient Temperature:	-20c -- +50c
Weight/G:	36g (Without Case),76g(Case)
Current/Ma:	12
Frequency:	315MHz, 433MHz, Optional
Adjustable Frequency:	250-460MHz
Use:	Cars, Garage Doors , Gates Doors, Alarm Systems Et
Encoding Type:	Fixed, Learning, Rolling/Hopping Code
Battery:	23A 12V
Modulation Way:	Ask/Ook
Work Mode:	Momentary,Latched, Toggle
Application:	LED Products
Signal Transmission:	RF Remote Control
Type:	Button
Certification:	CE
Universal:	Universal
Transmission Distance:	50-100m
Voltage:	12V
Material:	Plastic
Battery Type:	Button Battery

Product Description

1 Channel Universal Wireless RF Remote Controller Kl-K103X



Use range
Kelvin 4-Channel RF Wireless Remote Control Duplicator for Cars, Garage Doors , Gates doors, Alarm systems etc. Fixed frequency (433.92mhz or 315mhz) for copying 99.99% common fixed and learning code remote controls.
Face to face copy the functions of your original remote by this 4-channel RF remote control duplicator with code learning functions and you'll always have a back up.
Duplicate Your Existing Remote Controllers:
         Vehicle central locking systems
         Garage  doors
         Electronic  gates
         Electrical  appliances
         Car  sunroofs
         Heating  systems


Buttons	1-4
Operating voltage	DC12V
Operating current	10MA
Operating frequency	315Mhz, 433Mhz, 868.35Mhz, 869.85Mhz, 290Mhz - 480Mhz
Ambient temperature	-20 °C ---- +50 °C

Advantages
Easy to install and use, the 4 channel remote control system lets you take control of your gadgets,  car and home or garage.
Works with the following remote control modules (please check your existing remote control before ordering): Your remotes also should be Fixed code or Learning code.
2260, 2262,  FP1527, HT12D ,  HT12E ,  PT2240,   S026-1 ,S026-2 ,S026-3 ,S026-4, SMC918.... etc
Please note this does not copy rolling code



Methods of operation
1, Clear out code:
To Clear up test stored rf signal memory from factory by pressing the locking key and unlock the key at the same time, two seconds later, LED indicator light flashes three times, followed by a continuous fast blinking. Indicates that the remote control codes stored has been cleared out.


2, Duplicating (learning)
 Hands are holding remote control , and the other are holding the duplicating remote control, 2 remote controls put together as close as possible, while pressing the remote controls two match button,(eg: A-A',B-B') three seconds later, LED indicator light flashes three times, followed by a continuous fast blinking. This indicates that this copy of the remote control buttons are same as copied on the remote control button codes . Several other keys are also according to the above approach to learning.


3, Recovery code
 If the code copied have been mistakenly removed the remote control, you do not worry, the remote control can restore yourself. Method is pressing (up-down eg: locking key and bell key) two buttons (metal shell remote control on the left, the plastic shell remote control on the right) at the same time ,3 seconds later, LED indicator light flashes three times, followed by a continuous fast blinking. This indicates that the original remote control codes have been restored.

The other way, you can delete all and relearn them again.
