1 Core Singlemode Metal Strength Self-Supporting FTTH Fibre Optic Cable

Name: 1 Core Singlemode Metal Strength Self-Supporting FTTH Fibre Optic Cable
Brand: all-electronics-online.com
SKU: 819628835
Availability: InStock
Rating: 4.5 (73 reviews)

Price:	US $ 0.2/Meter
Min Order:	4000/Meter
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	GJYXFCH
Od:	2.0*5.0 mm
Application:	Communication
Type:	Single-mode Fiber
Connection Structure:	SC
Certification:	CE
Sheath Material:	LSZH

Product Description

1 Fiber Singlemode 9/125 OS2, Metal Strength Member, LSZH Jacket, Self-supporting FTTH Drop Cable GJYXFCH

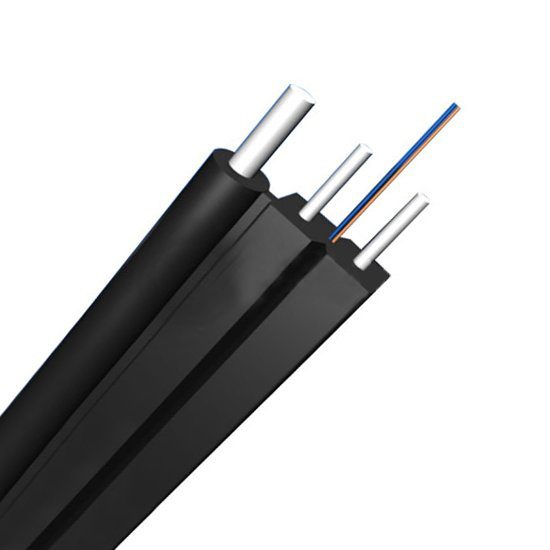

Self-supporting FTTH drop cable is constructed with one or two single-mode fiber (G.657A ). The cable is protected by two parallel strength members made of metal, steel wire and a LSZH outer jacket. Designed for outdoor installation, the cable is well suited for connections between the dome closure and small dwelling unit/warehouse and independent villas.

Cable Type	FTTH Drop Cable	Fiber Count	1 Fiber
Construction	Self-supporting	Fiber Type	Singlemode G.657A
Outer Jacket Material	LSZH (Black/White)	Strength Member Material	Metal
Cable Diameter	(2.0±0.2)×(5.0±0.2)mm	Cable Weight	20kg/km
Tensile Strength (long/short term)	100/200N	Crush Load (long/short term)	300/1000 (N/100mm)
Bending Radius (long/short term)	10D/20D (mm)	Operating/Storage Temperature	-40 to +60°C

Feature and Application

Self-supporting structure, light weight, easy to installDurable and flame retardant LSZH sheath, low smoke zero halogenSteel wire as additional strength member has high tensile strengthTwo parallel metal strength members ensure good performance of crush resistance

Outdoor aerial applicationUsed in the FTTH projectsHigh speed optical routes in buildingHigh performance optical network operation

Ideal Solution by Using Self-supporting FTTH Drop Cable

A high-capacity FTTH network gives you opportunities to build a competitive advantage and maintain an eco-sustainable network that consumes less power. With simple structure and light weight, self-supporting FTTH drop cable is highly recommended for the connection of outdoor and indoor cabling.
