1-Core Singlemode Single-Armored Kfrp Strength Outdoor FTTH Fibre Optic Cable

Name: 1-Core Singlemode Single-Armored Kfrp Strength Outdoor FTTH Fibre Optic Cable
Brand: all-electronics-online.com
SKU: 819632245
Availability: InStock
Rating: 5 (76 reviews)

Price:	US $ 0.52/Meter
Min Order:	4000/Meter
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	GJFDC-SM-KFRP-1FL
Od:	7.0 mm
Application:	Communication
Type:	Single-mode Fiber
Connection Structure:	SC
Certification:	CE
Sheath Material:	LSZH

Product Description

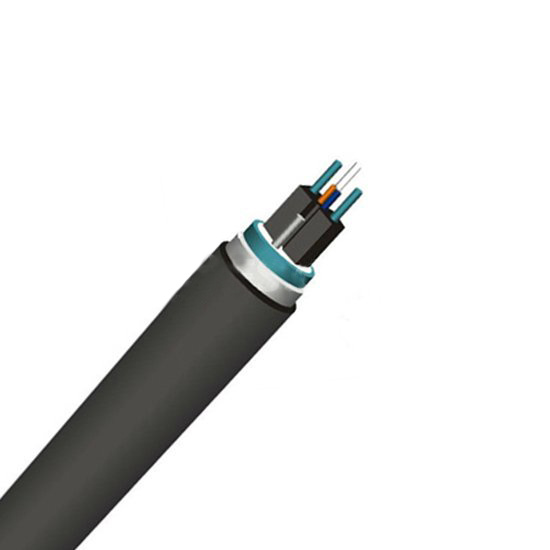

1 Fiber Singlemode 9/125 OS2, Single-Armored, KFRP Strength Member, LSZH Outdoor FTTH Drop Cable

FTTH duct cables are made for connecting user's devices with outdoor feeder cable, especially suitable for duct installation. The optical fiber unit is located in the center. The two parallel FRP strength member improves the tensile strength. With the LSZH (LSZH, Low smoke, Zero halogen) material jacket, this cable has good flame retardant performance. Water blocking tape & AL-plastic tape provide good water proof ability.

Cable Type	FTTH Drop Cable	Fiber Count	1 Fiber
Construction	Single-Armored	Fiber Type	Singlemode G.657A
Inner/Outer Jacket	LSZH (Black)	Central Strength Member	KFRP
Cable Diameter	7.0mm	Cable Weight	52kg/km
Tensile Strength (long/short term)	30/60N	Crush Load (long/short term)	30/1000 (N/100mm)
Bending Radius (long/short term)	15/30mm	Operating/Storage Temperature	-20 to +60°C/-40 to +60°C

Feature and Application

Soft and flexible, good bending performancewater-proof tape prevent the ingression of water into the cableAL-plastic tape makes the cable crush resistant and moisture proofFRP strength member improves the tensile strength, LSZH flame-retardant inner and outer jacket has good flame retardant performance

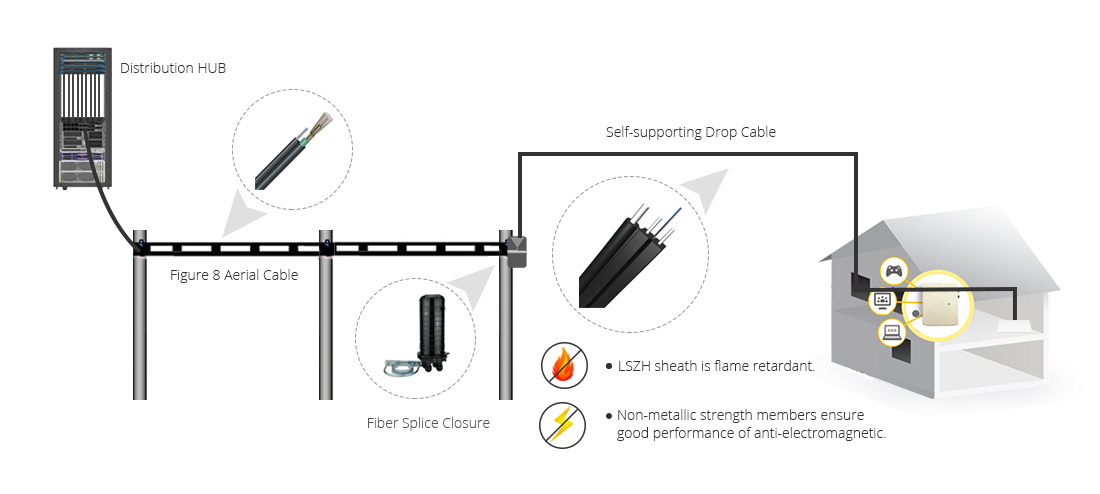

Used in aerial and duct access cablingCan be Installed in small bending environmentSuitable for the connection between indoor and outdoorSpecially used where good insulation performance are expected

Ideal Solution For FTTH Drop Cable Use

With low smoke, zero halogen and flame retardant inner and outer jackt, this cable can be eapecially used in aerial and duct access cabling, suitable for the connection between indoor and outdoor. It can also be directly terminated connecting to communicaion equipments.
