1 to 4 VGA Extender 100m

Prod Model:	YL-C0104-100M
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
OEM:	Avaliable
Certification:	RoHS
Support Network:	Ethernet
Usage:	Computer
Type:	Wired
Information Content:	Data
Condition:	New

Product Description

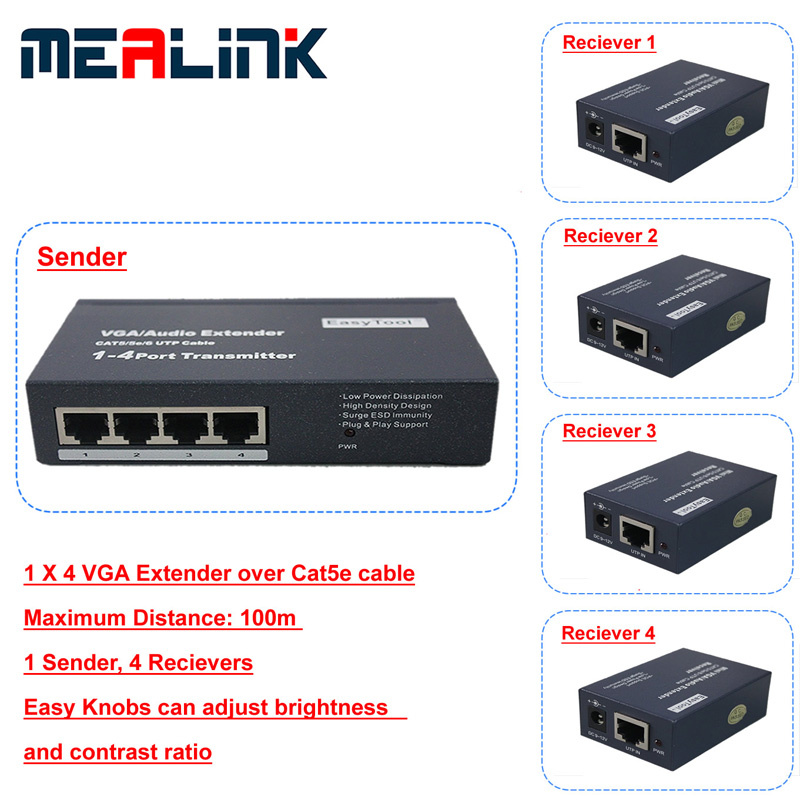

1*4 VGA Extender over Cat5e Cable
Maximum Distance: 100m
1 Sender, 4 Receivers
Easy Knobs can adjust brightness and contrast ratio

YL3504-100m VGA by CAT5 Extender is composed by a Sender and four Rceiver. It distributes 1 VGA input to 4 VGA displays over a distance of 100 meters away without any signal loss by a UTP CAT5 cable. It is a cheap solution for VGA extension as CAT5 cable is very cheap cost. It supports high definition up to 1600x1200. It is rack-mountable.

Features
- 1 channel VGA+AUDIO input;
- 4 channels VGA+AUDIO output;
- Connect a PC host in and 4 CRT PC monitor or LCD over 100 meters away;
- USB power supply and 9V DC power supply input port for transmitter;
- 12V DC power supply for receiver;
- Transmission Media: UPT CAT5 Cable;
- Bandwidth: DC125MHz;
- Differential coefficient plus<0.5%;
- Differential coefficient plus< 0.5
- SNR: 60dB


Installation Guide:
Transmitter:
1. Connect VGA signal (to be send) to VGA IN
2. Connect audio signal (to be send) to AUDIO IN
3. Connect power supply plug to transmitter
4.5 reticle RJ45 Insert TP-OUT
5. Setup all K is shut. Please make switch is ON
Notice: Setup position of switch K must based on transfer distance and image effect., still don't satisfy image contrast after contrasting. Please setup switch K is ON

Receiver:
4 VGA displays can be connected at the same time. But the lighteness will reduce when 4 displays are connected in. Please adjust the contrast, brightness, color.

1. Connect display input to VIDEO-OUT1 or VIDEO-OUT2
2. Connect audio output to AUDIO-OUT.
3. 5 reticle s RJ45 Insert TP.

CAT5 Cable:
CAT5 Cable should be parallel, can not appear cross over in twisted-pair. Seriation as follow: White orange / orange/ white green/ green / white blue / blue/white palm / palm.

Receiver adjustment:
Make the image look better via BRIGHT / CONTRAST adjustor
Still do not satisfy with the imagecontrast after you adjusting, please setup all switches K of receiver are ON
Lighteness, contrast, and switch K is OK for 300M transfer distance when leaving factory.
