VGA+R/L Audio+3.5mm Audio to HDMI Converter

Name: VGA+R/L Audio+3.5mm Audio to HDMI Converter
Brand: all-electronics-online.com
SKU: 819380855
Availability: InStock
Rating: 4.3 (112 reviews)

Price:	Negotiable/Piece
Min Order:	10/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

OEM:	Avaliable
Usage:	Computer
Type:	Wired
Support Network:	Ethernet
Information Content:	Data
Certification:	RoHS
Condition:	New

Product Description

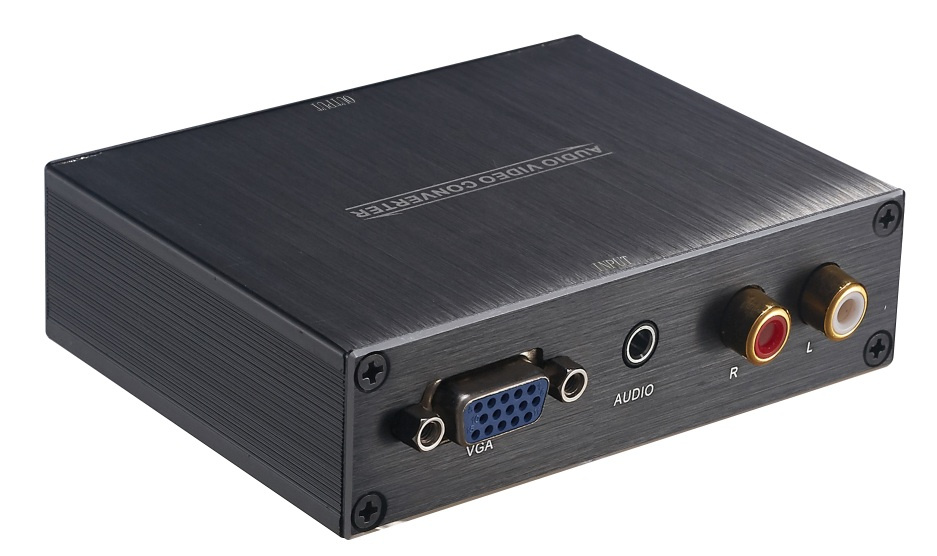

VGA+R/L Audio+3.5mm Audio to HDMI Converter
The VGA+R/L +3.5 MM Audio to HDMI Converter use a single VGA+R/L +3.5 MM Audio source,accessing to single HDMI1.1sink. The Converter allows one VGA+R/L +3.5 MM Audio device to be converted easily to one HDMI1.1 monitor or projector.

FEATURES:
1.One VGA+R/L+3.5 MM Audio input signal convert to one HDMI sink devices
2.Support video input : VGA analog
3.Support audio input : R/L 3.5 MM Audio analog
4.HDMI output : Support up to 1920x1080_60Hz, same format as input
5.LED indication: when source or sink is working, LED relative to is light.
6.Support output up to 20metres AWG26 cable length
7.No need to install drivers, portable, flexible, plug and play;
8.Provide advanced signal processing with great precision, colors, resolutions, and details;

SPECIFICATIONS:
VGA Input.........…Support up to SXGA/SGA/UGA(50/60/75HZ)
Audio Input….....................R/L+3.5MM Aduio Analog
HDMI resolution …. . Support up to 1920x1080_60Hz, same format as input
Max transmission bandwidth.... ..................…5.1Gbps
Input Video signal .....................….… 0.5~1.5Volts p-p
Output DDC signal ........................ 5Volts p-p (TTL)
Output cable distance............≤20m AWG26 HDMI standard cable
Max working current...........................…...600mA
Operating Temperature range..... ............... (-15 to +55ºC)
Operating Humidity range..........5 to 90%RH (No Condensation)
Dimension (L x W x H) .....................…88x68x26(mm)
Weight…..........................…...........…200g

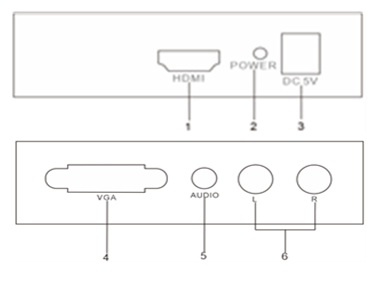

PANEL DESCRIPTIONS:

1: HDMI output         4:VGA input
2: Power Led          5:3.5MM Audio input
3:Power IN             6:L/R Audio input

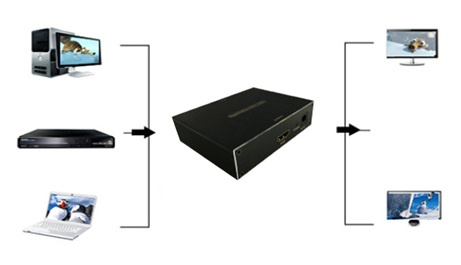

CONNECTION DIAGRAM:

PACKAGE CONTENTS:
1) Main unit (VGA+L/R+3.5MM Audio to HDMI Converter)---------1PCS
2) One piece of USB cable ------------------------------------------1PCS
3) Product specifications ----------------------------------------------1PCS
4) Protection to Fix card ----------------------------------------------1PCS
