10.525GHz Microwave Motion Sensor Module Microwave Radar Module

Name: 10.525GHz Microwave Motion Sensor Module Microwave Radar Module
Brand: all-electronics-online.com
SKU: 784450075
Availability: InStock
Rating: 4.3 (135 reviews)

Price:	US $ 2-3/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	HW-M10
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Supply Voltage:	DC 12V (6-24V)
Current:	<5mA
Level Of Output:	High-5V/Low-0V
Trigger Way:	Repeat(Default)
Delay Time:	Default 3 S (3-200 S Adjustable)
Size:	30206mm
Angle:	180*360

Product Description

Detail:
This product is automatic induction control of doppler radar products.High penetrating signal ability and strong anti interference performance.High sensitivity, long distance detect, high reliability, big detect angle. Also the power supply voltage is range.It Ais widely used in all kinds of human body induction lighting, anti-theft alarm situations.

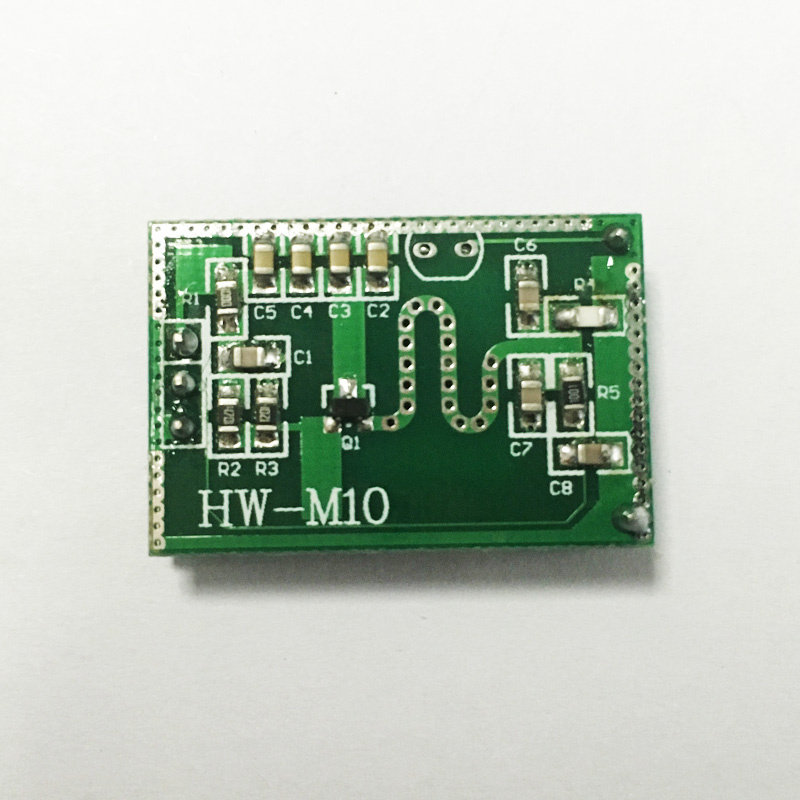

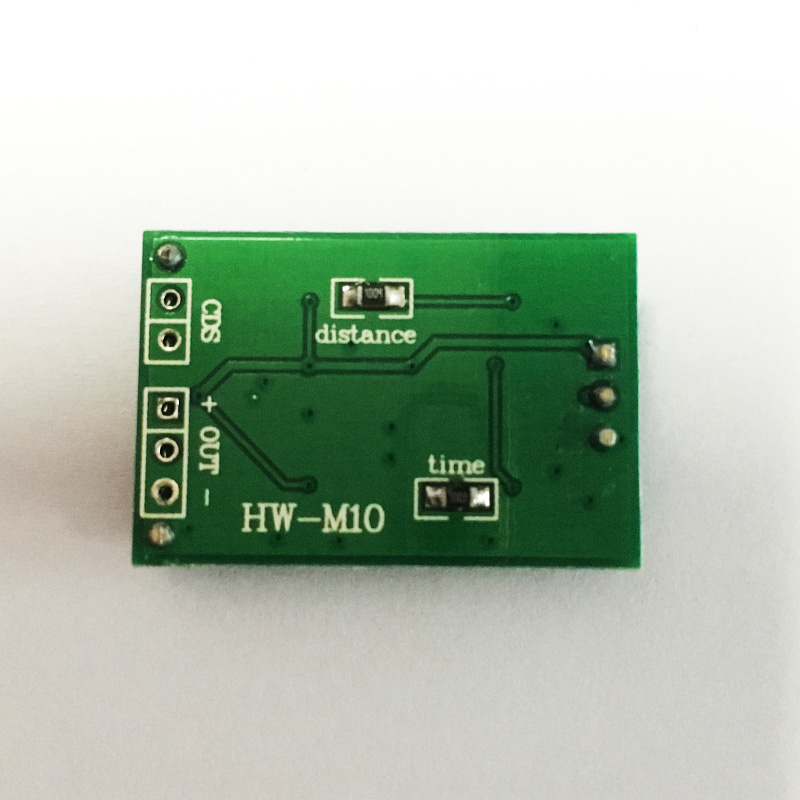

HW - M10 uses planar antenna is the transmission and reception, as the active sensor. The sensor transmit high frequency electromagnetic wave (10.525GHz) and receive echo. HW - M10 detecting changes in the echo inside even small movement. Then microprocessor triggers, executes instruction . Signal can be detected through glass, doors or thin wall.
Features:
1.Strong anti-interference ability, stable performance, not influenced by environmental temperature.
2 .Small size, simple installation. Quick response and high sensitivity.
3. Induction distance can also customize, the detection angle is 180 x 360
4 .Radar wave can penetrate non-metallic objects, such as wood, glass, plastic, fabric, etc

Technical parameters:

Supply voltage	DC 12V (6-24V)
current	<5mA
Level of output	High-5V/low-0V
Trigger way	Repeat(default)
Delay time	default 3 s (3-200 s adjustable)
Blocking time	The default 0 s (adjustable)
Size	30206mm
Distance	5-30m
Angle	180*360
Working temp	-20-+80
Transmission power	<0.2mW
Load power	1.By adding relay as a trigger signal. 2.Maximum power 1000 w
Install way	Hanging install, such as install suction a top;T8 is built
