10 Layer PCB Single-End / Differential Impedance Control
| Price: |
US $ 1/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC-894-V8.94 |
| Board Thick: |
1.6mm |
| Surface Finish: |
Immersion Gold |
| Out Layer Copper: |
1 Oz |
| Final Foil Internal: |
1 Oz |
| Soldermask Color: |
Green |
| Silkscreen Color: |
White |
| Minimum Trace And Space: |
4 Mil / 4 Mil |
| Minimum / Maximum Holes: |
0.25/4.2mm |
| Impedance Control: |
50 Ohms Single End |
| Test: |
100% Electronic Test |
| Type: |
Rigid Circuit Board |
| Dielectric: |
FR-4 |
| Material: |
Fiberglass Epoxy |
| Flame Retardant Properties: |
V0 |
Product Description
1.1 General description

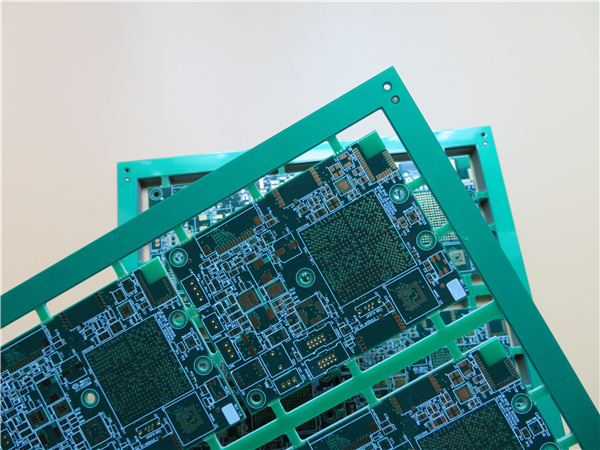

This is a type of multilayer PCB built on FR-4 substrate with Tg 170°C for the application
of Satellite systems with 10 layer copper. It's 1.6 mm thick with white silkscreen(Taiyo) on green
solder mask (Taiyo) and immersion gold on pads. This is also an impedance controlled PCB with
50 ohm single-end impedance and 97 ohm with differential impedance control. The base material
is from ITEQ supplying 4 up PCBs per panel. They're fabricated per IPC 6012 Class 2 using
supplied Gerber data. Each 25 panels are packed for shipment.1.2 Features and benifits
a. Lead free assemblies with a maximum reflow temperature of 260ºC
b. SMT process is resistant to reflow soldering, resistant to rework.
c. The signal lines form a constant low impedance to the ground
d. Strict WIP inspection and monitoring as well as working instruction
e. UL, ISO14001, TS16949 certified
f. Hassle-free, one-to-one after-sales service
g. Delivery on time: >98% 1.3 Application Preamplifier, Satellite Dish, GPS Tracking Devices, SAN Storage, AC Drives, GSM Signal
Booster, Mobile Broadband Router, Inverter 220V, Memory Module, Automotive dashboards
1.4 Parameter and data sheet| PCB SIZE | 199 x 170mm=4PCS |
| BOARD TYPE | Multilayer PCB |
| Number of Layers | 10 layers |
| Surface Mount Components | YES |
| Through Hole Components | YES |
| LAYER STACKUP | copper ------- 18um(0.5oz)+plate TOP layer |
| Prepreg 0.1016mm (4mil) |
| copper ------- 35um(1oz) Plane GND |
| FR-4 0.127mm (5 mil) |
| copper ------- 18um(0.5 oz) Signal SIG1 |
| Prepreg 0.127 mm (5mil) |
| copper ------- 18um(0.5 oz) Signal SIG2 |
| Prepreg 0.127mm (5 mil) |
| copper ------- 35um(1oz) Plane PWR |
| FR-4 0.330mm (13mil) |
| copper ------- 35um(1oz) Plane GND |
| Prepreg 0.127mm (5 mil) |
| copper ------- 18 um(0.5 oz) Signal SIG3 |
| Prepreg 0.127mm (5 mil) |
| copper ------- 18 um(0.5 oz) Signal SIG4 |
| Prepreg 0.127mm (5 mil) |
| copper ------- 35um(1oz) Plane GND |
| Prepreg 0.1016mm (4mil) |
| copper ------- 35um(1oz) Signal BOT |
| TECHNOLOGY | |
| Minimum Trace and Space: | 4mil/4mil |
| Minimum / Maximum Holes: | 0.25/4.2mm |
| Number of Different Holes: | 15 |
| Number of Drill Holes: | 850 |
| Number of Milled Slots: | 10 |
| Number of Internal Cutouts: | 0 |
| Impedance Control: | YES. Top layer, 7.0 mil trace 50 ohms
single end. Layer 3 signal layer,
4.0/4.0 mil trace-space differential impedance = 91 ohms;
4.0/6.0 mil trace-space differential impedance = 97 ohms. |
| Number of Gold finger: | 0 |
| BOARD MATERIAL | |
| Glass Epoxy: | FR-4 TG170ºC, er<5.4.IT-180, ITEQ Supplied |
| Final foil external: | 1oz |
| Final foil internal: | 1oz |
| Final height of PCB: | 1.6mm ±0.16 |
| PLATING AND COATING | |
| Surface Finish | Immersion gold (30.1% ) 0.1µm over 3µm nickel |
| Solder Mask Apply To: | TOP and Bottom, 12micron Minimum |
| Solder Mask Color: | Green, PSR-2000 KX700G, Taiyo Supplied. |
| Solder Mask Type: | LPSM |
| CONTOUR/CUTTING | Routing, stamp holes. |
| MARKING | |
| Side of Component Legend | TOP and Bottom. |
| Colour of Component Legend | White, S-380W, Taiyo Supplied. |
| Manufacturer Name or Logo: | Marked on the board in a conductor
and leged FREE AREA |
| VIA | plated through hole(PTH), minimum via 10 mils. |
| FLAMIBILITY RATING | UL 94-V0 Approval MIN. |
| DIMENSION TOLERANCE | |
| Outline dimension: | 0.0059" |
| Board plating: | 0.0029" |
| Drill tolerance: | 0.002" |
| TEST | 100% Electrical Test prior shipment |
| TYPE OF ARTWORK TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
| SERVICE AREA | Worldwide, Globally. |
Founded in 2003, Bicheng Enterprise Limited is a professional PCB export enterprise. We have established a good relationship of cooperation with well-known enterprises in the same industry.
The factories have been ISO 9001-2008, ISO 14001-2004 and ISO/TS16949-2009 quality management system certified. Over the past 14 years, we have provided professional circuit board manufacturing solutions for more than 5000 companies worldwide.
Different plant scale to suit for your requirements
16000 square meter factory building
30000 square meter month capability
8000 types of PCB per month
ISO9001, ISO14001, TS16949, UL Certified
We have our own advantages to help you saving cost and time spent on PCB, booster your new products go to market quickly.
A) Various kinds of PCB products
Double sided PCB
Multilayer PCB up to 32 layers
FR-4 PCB (Tg130, Tg170)
High frequency PCB (RO4350B, RO4003C)
Aluminum PCB (1W/MK, 2W/MK, 3W/MK)
Flexible PCB
HDI PCB Board
B) Multiple PCB technology to meet the market demands
Blind via PCB, Via in pad PCB, Fine pitch BGA PCB
Impedance controlled PCB
Heavy copper PCB
Hybrid material PCB
C) Many discount policies for new customers
SMT stencil foil, free of charge
Prototype shipping cost, free of charge
Prototype test, free of charge
PCB panelization, free of charge
D) High quality PCB services
Engineering design prevents problems from occurring in pre-production.
Meet your PCB needs from prototype to mass volume production.
Eligible products rate of first production: >95%
Delivery on time: >98%, door to door shipment service
Customer complaint rate: <1%
Choose BichengPCB means you choose hassle free.
