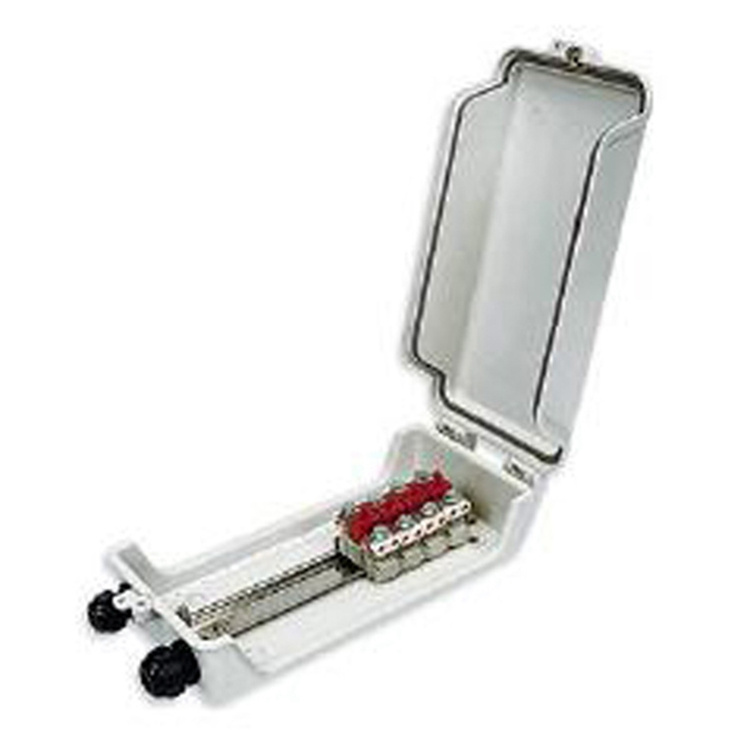

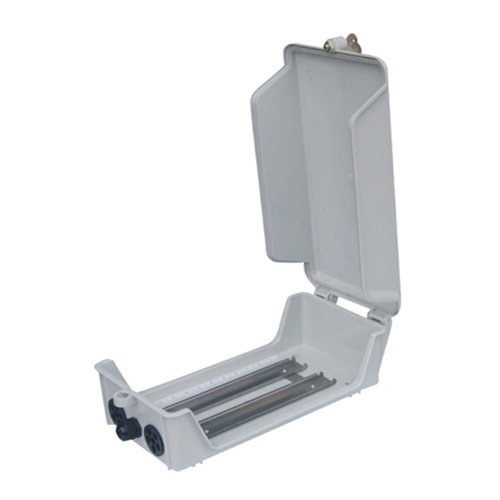

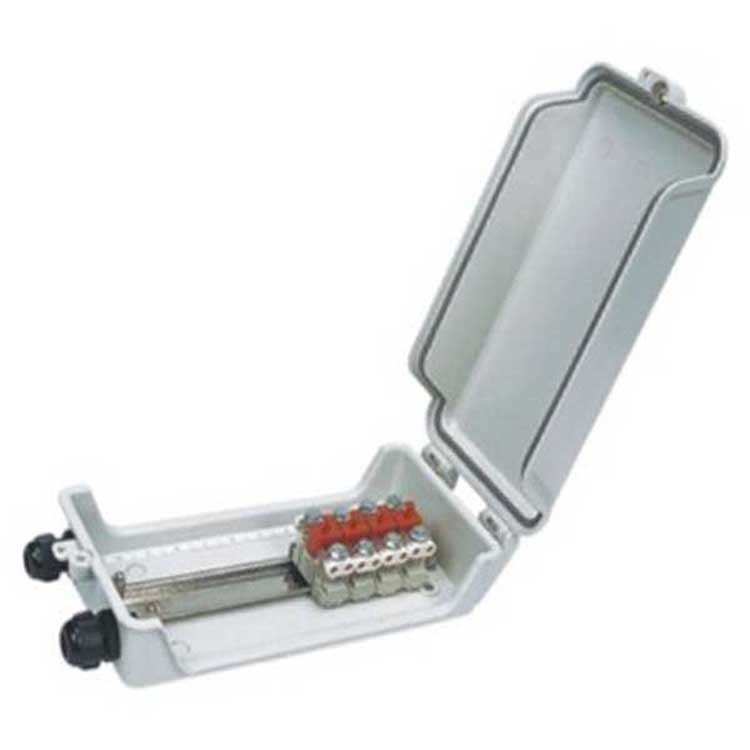

10 Pair Outdoor Distribution Box for STB Module

Prod Model:	GL-1312
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material:	PC
Insertion Contact:	Phosphor Bronze
Conductor Diameter:	0.4 to 1.2mm
Overall Insulation Diameter:	5mm Maximum
Color:	White& Grey
Usage:	Telephone
Type:	Wired
Support Network:	Ethernet
Information Content:	Data

Product Description

Outdoor Distribution Box
Fiber optic distribution box
Multi-Service Box
Subscriber Terminal Block
Fiber optic terminal box
The STB module provide a connection point between an exchange-side cable pair and a distribution pair. It incorporates a 5-point plug in module to provide continuity and a range of other options.

Drop wire connector: Gauge range: 0.4 to 1.2 mm diameter; Insulation diameter: 5 mm maximum diameter
Pair connector: Gauge range: 0.4 to 1.2 mm diameter; Insulation diameter: 3 mm maximum diameter
Current conducting capacity: 20 A, 10 A per conductor for 10 minutes at least without causing deformation of the module.
Insulation resistance: Dry atmosphere: >1012 Ω
Damp atmosphere (ASTM D618, procedure F): >1012 Ω
Salt fog (ASTM B117): >1010 Ω
Immersion in water (15 days in 3% NaCl solution): >1010 Ω
Contact resistance: Rmaterial + Rbridge contacts + Rwire contacts: <10 m Ω
Increase in contact resistance: After climatic tests: <2.5 m Ω ; After 50 reinsertions: <2.5 m Ω
Dielectric strength: >3, 000 Vdc for 1 minute
Mechanical characteristics:
Pair/drop wire housing screw: Special passivated direct + lacquered Zamac alloy.

Features
Molded from impact resistant, chemical resistant plastic.
Standard DIN rail included for mounting terminal blocks.
Easy access for terminations.
Simple hand tools and minimum skills required for installation.
Minimum twenty year life cycle.
Lid snaps in open position for easy access during installation.
Lid may be locked to reduce the possibility of unauthorized entry.
Rubber grommets at all drop wire entry and exit ports.
All wire contacts are internal and environmentally sealed.
No wire stripping required.
All grounding hardware included.
Applications
For mounting to walls, wood, metal or concrete poles.
Sizes
Available in 10, 15, 20, 25 and 30-pair configurations.
May be ordered fully populated - terminals are pre-installed and cable ready.
May be ordered empty - terminals to be added on an "as-needed" basis.
May be ordered pre-stubbed to customer specifications.
