100 Mbar 1000 Celsius Pressure Sensor MPM281

Name: 100 Mbar 1000 Celsius Pressure Sensor MPM281
Brand: all-electronics-online.com
SKU: 838127135
Availability: InStock
Rating: 4.3 (145 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	MPM281
Output:	Analog Sensor
Usage:	Processing Pressure Measurement
Theory:	Pizoresistive Sensor
Media Temperature:	(35±1)Celsius
Shock:	0.1g(M/S/S)Max
Humidity:	(50%±10%)Rh
Local Air Pressure:	(86~106)Kpa
Power Supply:	(1.5±0.0015)Madc
Pressure Range:	0~20kpa...35MPa
Pressure Type:	Sealed Gauge,Gauge,Absolute

Product Description

100 Mbar 1000 Celsius Pressure Sensor MPM281

Features:
     1. OEM;
     2. Constant current power supply;
     3. SS316L;
     4.Φ19mm diameter
   5. Pressure range: 0~7kPa...100MPa
   6. Power Supply: ≤2.0mA DC; ≤10V DC

Application:
    1.Level measurement;
    2.Aviation;
    3.Ocean;
    4.Liquid pressure system;
    5.Pressure meter;
    6.Industrial process control;
    7.Air conditioner

Options:
    1.Sealed gauge, gauge, absolute;
    2.Laser trimming type;
    3.Outer compensated resistor;
    4.O-ring type

Basic Specification:

Item*	Min.	Typ.	Max.	Units
Linearity		±0.15	±0.20	%FS,BFSL
Repeatability		±0.05	±0.075	%FS
Hysteresis		±0.05	±0.075	%FS
Zero output			±2	mV DC
FS output **	70			mV DC
Zero thermal error***		±0.75	±1.0	%FS,@35ºC
Span thermal error		±0.75	±1.0	%FS,@35ºC
Compensated temp. range	-10~80 0~70(7kPa,20 kPa,35 kPa)			ºC
Working temp. range	-40~125			ºC
Storage temp. range	-40~125			ºC
Stability error		±0.1	±0.2	%FS/year
testing at basic condition * for range code 0C, FS output ≥45mV ***for rang code 0C, Zero thermal error≤1.5%FS

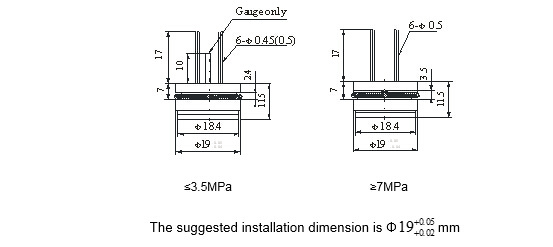

Outline Construction:

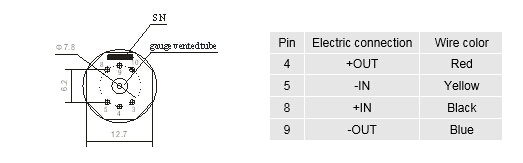

Electric Connection:

Order Guide:

MPM281

High Stable Piezoresistive OEM Pressure Sensor

Range code

Pressure range

Ref.

Range code

Pressure range

Ref.

0kPa~7kPa

0MPa~2MPa

G.A

0kPa~20kPa

0MPa~3.5MPa

G.A.S

0kPa~35kPa

G.A

0MPa~7MPa

S.A

0kPa~70kPa

G.A

0MPa~10MPa

S.A

0kPa~100kPa

G.A

0MPa~20MPa

S.A

0kPa~200kPa

G.A

0MPa~35MPa

S.A

0kPa~350kPa

G.A

0MPa~70MPa

S.A

0kPa~700kPa

G.A

0MPa~100MPa

S.A

0kPa~1000kPa

G.A

Code

Pressure type

Gauge

Absolute

Sealed gauge

Code

Pressure connection

O-ring

Code

Compensation

Laser trimming

Outer compensated resistor (providing resistor value)

Code

Electric connection

Kovar pin(default)

100mm silicon rubber flexible wires

Code

Special measurement

Gauge sensor to measure vacuum

MPM281 07 G 0 L 1 Y the whole spec
