| Prod Model: |
LKDB100P |
| Back Frame: |
10 Pairs |
| Type: |
Distribution Metering Box |
| Structure: |
Protection |
| Application Range: |
Indoor |
| Size: |
100 Pairs |
| Brand: |
Lulink |
| Shell Protection Grade: |
IP66 |
Product Description

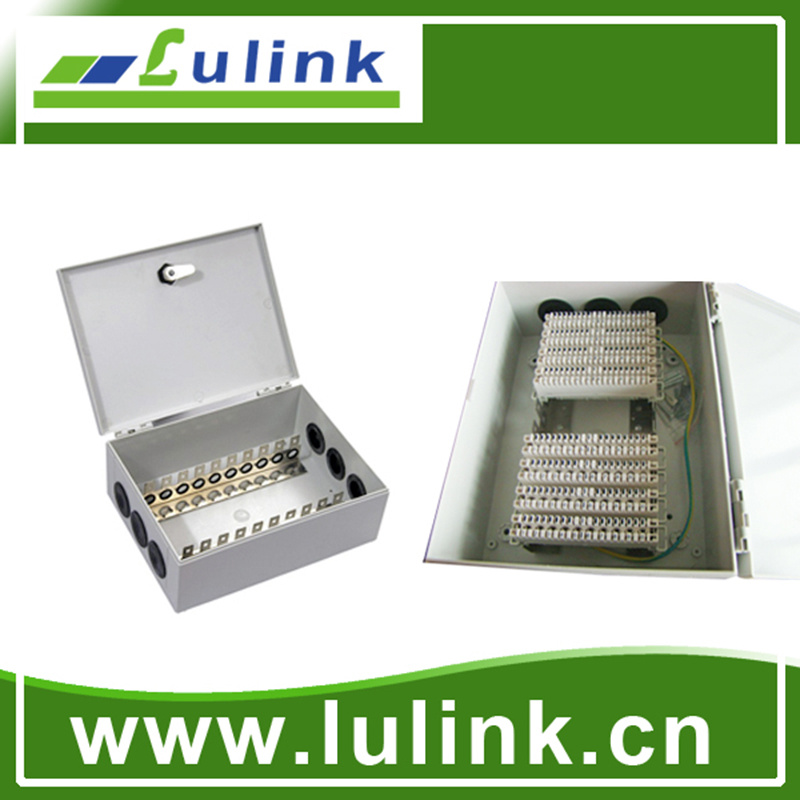

Our Outdoor Distribution Boxes for Krone Modules are highly versatile. There are three compact sizes with variable depth and is designed for surface or flush mounting. With just a few components, a high degree of flexibility is achieved at low inventory costs. The Krone Type DP boxes are made of polystyrene, a self-extinguishing plastic which ensures corrosion-free, highly impact-resistant, stable and maintenance-free use.
Features:
1. Installed with back mount frame for LSA-PLUS 10 pair disconnection/connection module, and protection element installation.
2. Material: glass fiber reinforced polycarbonate plastic materials, (ABS fire-resistant PBT, PC optional)
3. Capacity: 30 Pair, 50 Pair, 100 Pair.
4. Color: Gray
5. Security: Key Lock or Screw Lock.
6. IP45, UV Protection
7. Dimension: 30 Pair Box-220*140*90mm
50 Pair Box-195*195*95mm
Technical characteristics
Characteristics of the contact connection
Connector of the distributive wire
| Range of the section: | diameter 0,4… 1,2 mm |
| Diameter on the isolation: | it is maximal 5 mm |
| The current-response characteristics: | 20 A(10 A on each conductor) during not less than 10 min, without the deformation of the module |
| Note: if is required resistance to the flow of current from 20 A to 30 A, this is ensured by the application of gas-discharge arresters of different types |
| Insulation resistance | |
| "Dry" atmosphere: | > 10 12 Ohm |
| "Moist" atmosphere (standard ASTM Of d618, procedure F): | > 10 12[Om] |
| Salt fog: (standard ASTM Of b117) | > 10 10 Ohm |
| Immersion beside the water: (15 days before 3% solution Of naCI) | > 10 10 0[m] |
| The contact resistance | |
| R of material + R of the contact cross connection + by R of the contact connection of the wires | < 10 m |
| Increase in the contact resistance | |
| After climatic testings: | <2,5 m |
| After 50 connections - turning offs: | <2,5 m |
| Dielectric strength: | >3 kV of direct current during 1 minute |
