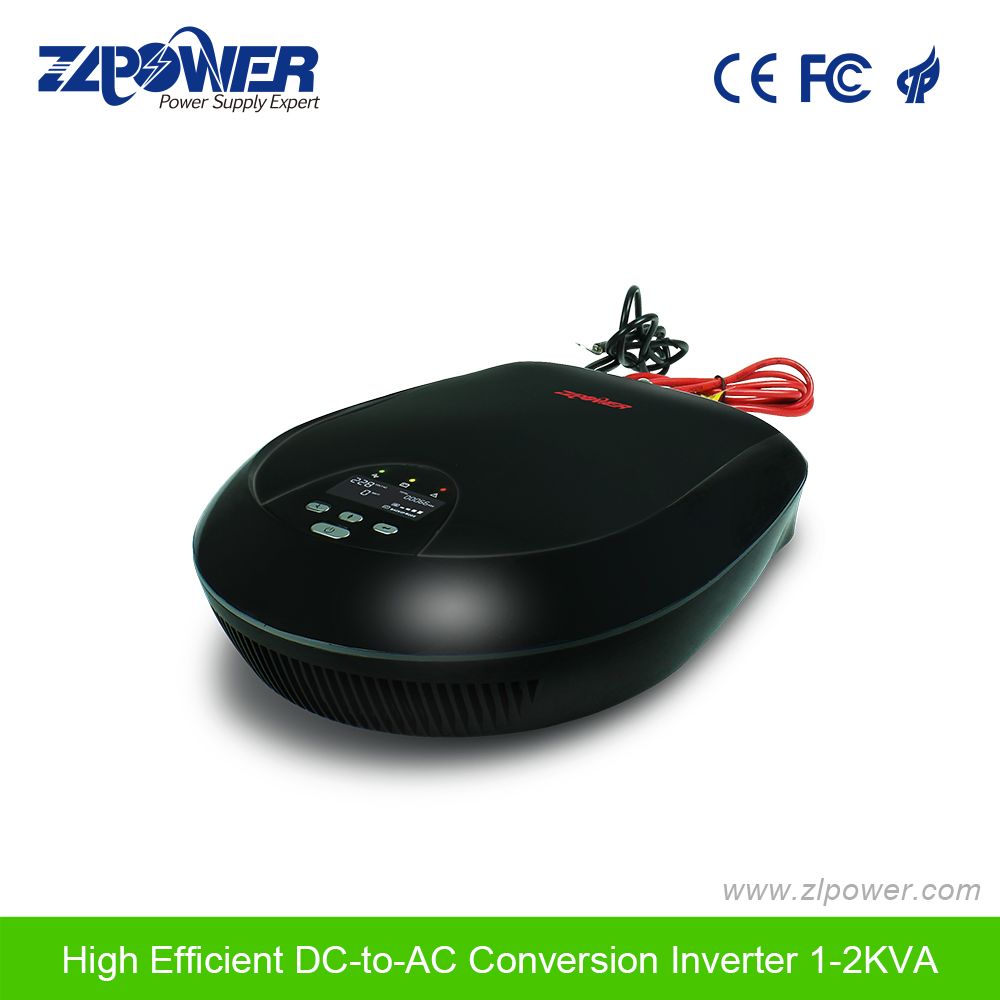

1000~2000va Mini Modified Sine Wave Power Inverter

Name: 1000~2000va Mini Modified Sine Wave Power Inverter
Brand: all-electronics-online.com
SKU: 824045835
Availability: InStock
Rating: 4.7 (127 reviews)

Price:	Negotiable/Piece
Min Order:	100/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	HDX Series
Input:	220/230/240VAC
Output:	230VAC
Battery Charger Current:	20AMP/20AMP/15AMP
Protection:	Discharge, Overcharge.Overload,Over Temperature Pr
Display:	LCD+LED
Usage:	Home and Office
Output Waveform:	Modified Sine-Wave
Efficiency(AC To AC):	>95%
Efficiency((DC To AC):	>80%
Restart:	Auto Restart While AC Recovery

Product Description

Features
Automatic line-to-battery switchover.
Configurable Input voltage range via LCD setting.
High efficient DC-to-AC conversion, minimizing energy loss.
Rack design&wall-mounted design for flexible installation.
Built-in enhanced charger.
Intelligent 3-stage charger control for efficient charging and preventing overcharge.
Auto restart whle AC recovery.
User-friendly LCD+LED indications.
Multiple protection:low battery alarm, low battery shutdown, over charger protection,overload protection, over temperature protection, short circuit protection.
With the environment temperature control charge management.

Parameter

Model

HDX 1000-12 HDX 1200-12 HDX 2000-24

CAPACITY VA/W 1000VA/700W 1200VA/900W 2000VA/1500W

BATTERY VDC 12VDC 12VDC 24VDC

Input Nominal Voltage 220/230/240VAC
Voltage Range 90-280VAC(Wide Range); 170-280VAC(Narrow Rabge)

Output Voltage 230VAC
Voltage Regulation 10%-18%
Frequency 50/60Hz(Adjustable)
(Bat.Mode)
Out Waveform Modified Sine-wave

Battery& Charge Current 20Amp 20Amp 15Amp
CHARGER Overcharge Protection 16V 16V 32V

TRANSGER Typical 15ms Typical, 40ms Max
TIME

Efficiency AC to AC >95%
DC to AC >80%

DISPLAY AC Mode Display output power,output voltage
INDICATOR Battery Mode The mark will flicker every 1 second.
Battery Charging Mode Display the Battery capacity
Fault Display fault

AUDIBLE Low Battery at Sounding every 2seconds
ALARM Battery Mode
Overload Sounding every 0.5second
Fault

PROTECTION Full protection Discharge, overcharge,overload,over temperature protection

PHYSICAL Dimension(L*W*H) 296.4*268.1*90.6mm

ENVIRONMENT Operating rnvironment 0-50, 5%-90% relative humidity(non-condensing)
Storage Environment -15 to 55, 5% to 95% humidity (non-condensing)
Noise Level Less than 50dB

About ZLPOWER

Founded in 2007, Shenzhen ZLPOWER Electronics Co., Ltd. (ZLPOWER for short) is a key hi-tech enterprise in state "Torch Plan, " integrating science, industry, trade, and investment into a whole. It has registered capital of RMB 10million, covering a floor area of 2000sq. M, and owning assets of RMB 30 million.

As a large-scale enterprise group with total assets exceeding RMB 30 million, it currently employs more than 300 staff, operates R & D institutions, 10 products lines, and 8 overseas branches and offices for sales and service.

Also as a professional uninterruptible power supply manufacturer in Shenzhen, China, ZLPOWER mainly produce high frequency online UPS, computer PC UPS, rack mount online UPS, low frequency Industry three phase UPS, UPS Inverter, solar inverter, solar charger controller, Solar/UPS Battery and other related products.

In ZLPOWER, we are strictly on quality inspections. We implement strict IOC, IPQC, FQC, OQC, QA, and other quality control measures in every process according to ISO9001, including to raw materials selection, production, package, and shipment.

Thus, we are ISO9001: 2008 and SGS certificated, and all our UPS, Inverter power supply products have been approved by CE (LVD/EMC), UL tests. As a result, they are popular among our customers from Italy, Germany, South Africa, Egypt, Mozambique, Nigeria, UAE, Ukraine, Russia, Uzbekistan, Philippines, Chili, Peru, Brazil, Mexico and more.

ZLPOWER is looking for agent worldwide to distribute our quality UPS system, Inverter power and solar products to their local markets. Any interests please welcome to contact us today and look for best power solution.
