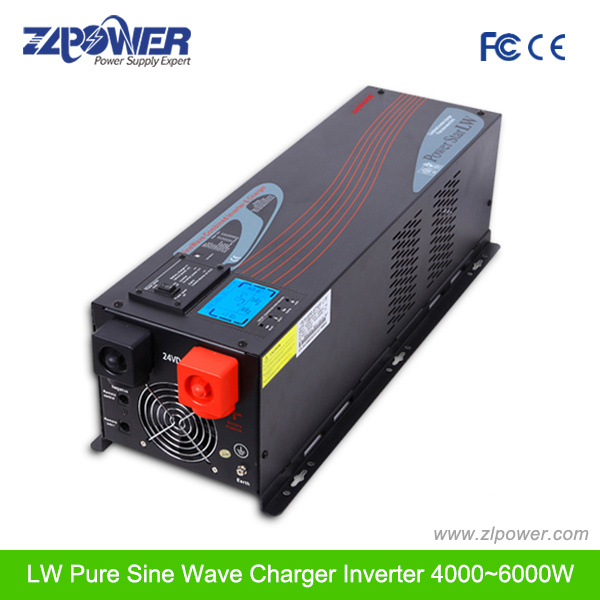

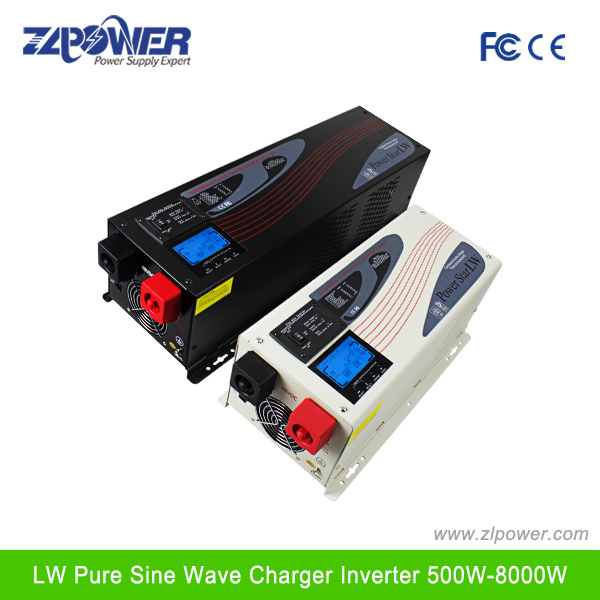

1000-6000W Solar Power system Pure Sine Wave Inverter

Name: 1000-6000W Solar Power system Pure Sine Wave Inverter
Brand: all-electronics-online.com
SKU: 827532585
Availability: InStock
Rating: 4.7 (86 reviews)

Price:	US $ 145-430/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	LW 1000-6000
Net Weight:	14.5-45.0kg
Charger:	3-Step Progreeive Charger
Selector:	7 Battery Type Selector
Line Mode Ransfer Efficiency:	95%
Battery Mode Ransfer Efficiency:	88%
AC Input Voltage:	120VAC/230VAC
Norminal Power:	1-6kw
Wave Form:	Pure Sine Wave
Solar Charger Battery Voltage:	12-48V
Max Charging Current:	30A/70A

Product Description

LW1000-6000W Solar Power Systerm Pure Sine Wave Inverter

Key features:
♦All kinds of home appliance, office equipment, solar power system, and other equipments which use single phase power.
♦LCD digital display show voltage, load and battery info in real time.
♦Peak power is three times of rated power.
♦Can work with inductive load such as air conditioner, motor door and so on.
♦Pure sine wave output, available for sensitive load.
♦4-step progressive charging, 7 battery type selector.
♦Fast and powerful charger with 20A/35A/50A/70A/90A
♦Accept generator's energy output.
♦High power factor 1.0, low power consumption.
♦Automatically transfer between battery and line modes.
♦Microprocessor control guarantees high reliability.
♦Bypass without battery connected.
♦Remote control function.
♦Protection against: Over load, over temperature, over charging, low battery.
♦Reverse connection (optional by hard connector), Blackouts

Specification

Model Parameters		LW1000	LW2000	LW3000	LW4000	LW5000	LW6000
AC Input	Nominal Power	1000W	2000W	3000W	4000W	5000W	6000W
	Voltage	120VAC/230VAC				230VAC
	Acceptable Voltage	194-243VAC/164-243VAC(wide mode)
	Line low Transfer	85V±4%/184(154 wide mode±4% )
	Line low Return	95V±4%/194(164 wide mode±4% )
	Line high Transfer	135V±4%/253±4%
	Line high Return	127V±4%/243±4%
	Frequency	50Hz or 60Hz (auto sensing)
	Line low Transfer	47Hz for 50Hz, 57Hz for 60 Hz
	Line high Transfer	55Hz for 50Hz, 65Hz for 60 Hz
Out Input	Phase &waveform	Pure Sine Wave(bypass mode sync to input)
	Voltage	100/110/120/130VAC, 208/220/230/240VAC (bypass mode sync to input)
	Voltage Regulation	±10%rms(bypass mode sync to input)
	Frequency	50Hz±0.3Hz(bypass mode sync to input)
	Peak Power	3 times of rating power
	Short Circuit Protection	Yes, shutdown after 10ms
	Power Factor	0.9-1.0
DC Input	Battery Voltage	12V/24V/48V			24V/48V
	Minimum Start Voltage	10V for 12V, 20V for 24V, 40V for 48V
	Low Battery Alarm	10.5V for 12V, 21V for 24V, 42V for 48V
	Low Battery Transfer	10V for 12V, 20V for 24V, 40V for 48V
	High Voltage Alarm	16V for 12V, 32V for 24V,64V for 48V
	Max Charging Current	20A/35A/50A/70A/90A
	Over charge Voltage	15.7V for 12V,31.4V for 24V, 62.8V for 48V
Transfer Efficiency	Line Mode	>95%
	Battery Mode	>88%
	Power saver	Available when the load is less than 25 Watts
Indicators	Switch selector	Saving Mode is on/off when push the switch forwards/backwards ,
		Keeping it horizontal is turning the inverter off.
	Audible Alarm	Sounding when the heatsink's tem is over 105ºC and shutdown after 30 seconds.
	Protections	low battery/ over charging /over temp/over load
	Communications	RS-232/USB(custom-made)
Enviromental	Operating Environment	0-40ºC,0-90%ºC RH(non-condensing)
	Audible Noise	<60dB
	Net Weight (KG)	18	20	22	35	38	40
	Dimension(LxWxH)	446×218×179mm			605×218×179mm

Product specifications are subject to change without further notice

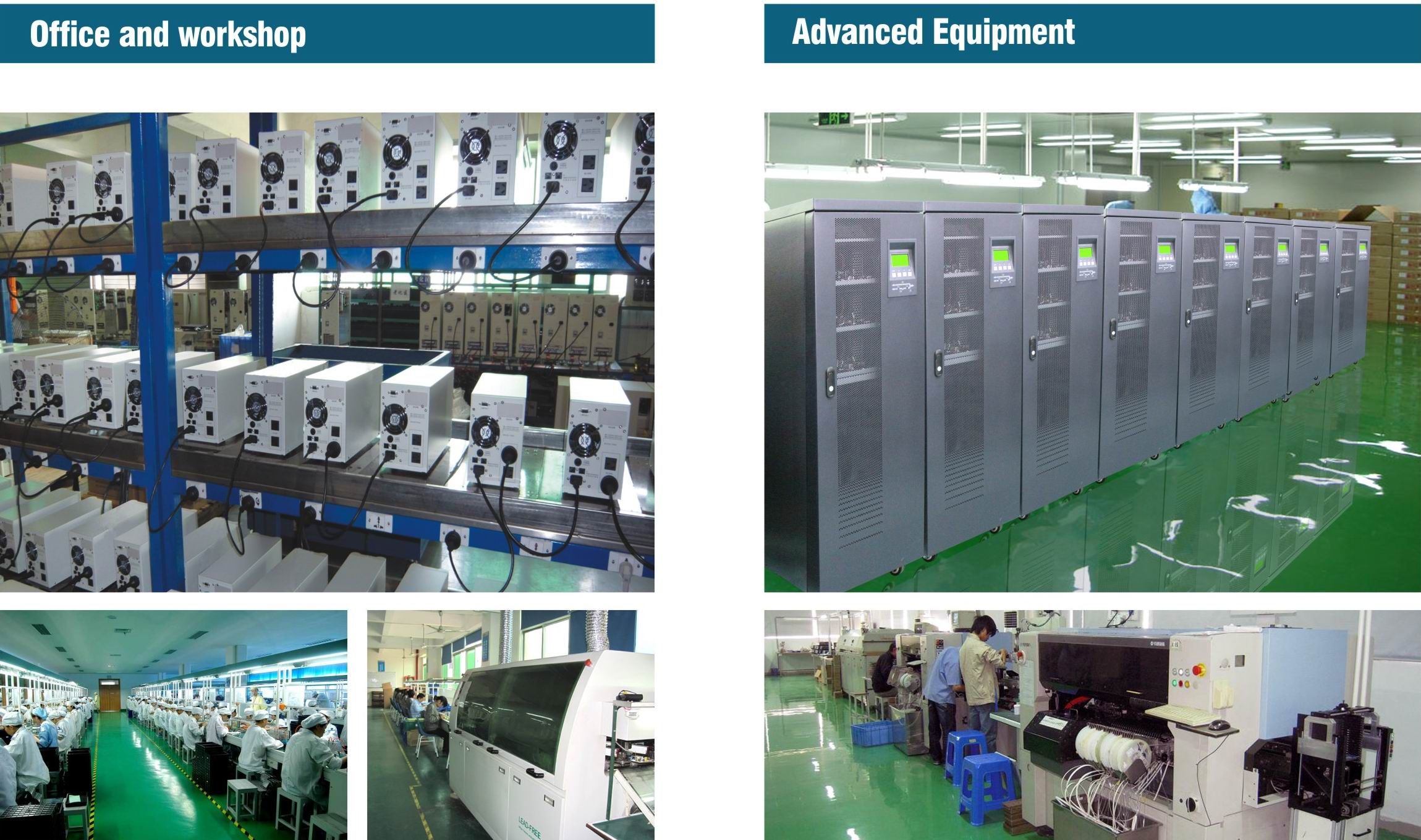

Factory View

About ZLPOWER

Founded in 2007, Shenzhen ZLPOWER Electronics Co., Ltd. (ZLPOWER for short) is a key hi-tech enterprise in state "Torch Plan, " integrating science, industry, trade, and investment into a whole. It has registered capital of RMB 10million, covering a floor area of 2000sq. M, and owning assets of RMB 30 million.

As a large-scale enterprise group with total assets exceeding RMB 30 million, it currently employs more than 300 staff, operates R & D institutions, 10 products lines, and 8 overseas branches and offices for sales and service.

Also as a professional uninterruptible power supply manufacturer in Shenzhen, China, ZLPOWER mainly produce high frequency online UPS, computer PC UPS, rack mount online UPS, low frequency Industry three phase UPS, UPS Inverter, solar inverter, solar charger controller, Solar/UPS Battery and other related products.

In ZLPOWER, we are strictly on quality inspections. We implement strict IOC, IPQC, FQC, OQC, QA, and other quality control measures in every process according to ISO9001, including to raw materials selection, production, package, and shipment.

Thus, we are ISO9001: 2008 and SGS certificated, and all our UPS, Inverter power supply products have been approved by CE (LVD/EMC), UL tests. As a result, they are popular among our customers from Italy, Germany, South Africa, Egypt, Mozambique, Nigeria, UAE, Ukraine, Russia, Uzbekistan, Philippines, Chili, Peru, Brazil, Mexico and more.

ZLPOWER is looking for agent worldwide to distribute our quality UPS system, Inverter power and solar products to their local markets. Any interests please welcome to contact us today and look for best power solution.
