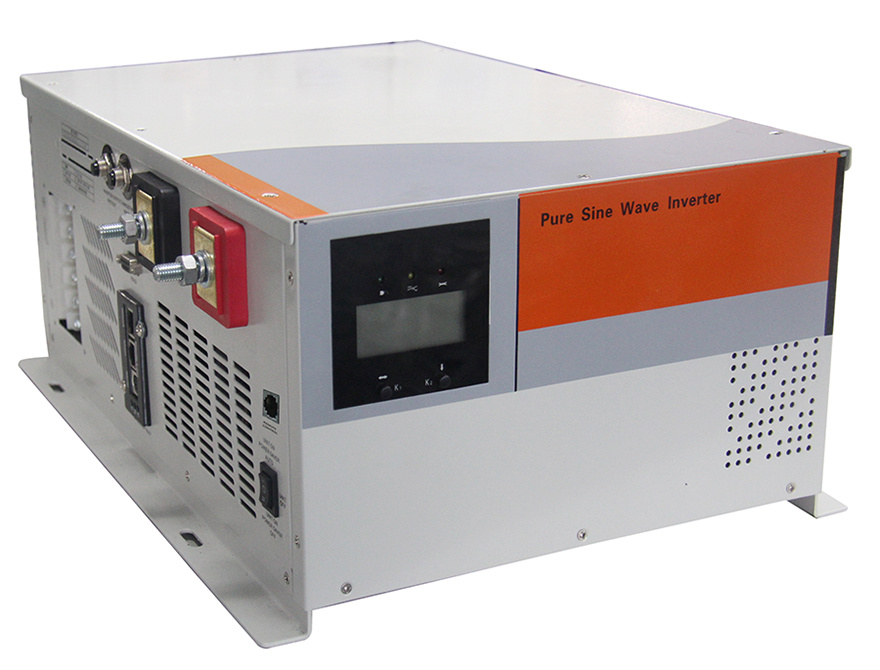

1000-6000watt Inverter Pure Sine Wave Output

Prod Model:	WSP-GFCS

Product Description

1000-6000Watt inverter Pure Sine wave Output
Pure sine wave output
The charging current is big up to 75 Amp
Output power factor:s 0.9-1
Well accept generator's output
Full automatical and silent operation
Automatically transfer between battery and line modes
Microprocessor control guarantees high reliability
Remote control function
Four-steps intelligent charging control to recharging time
Bypass and bypass voltage regulation function
Key Features:
Full protection:
Protection for low battery voltage,over load,output short circuit
and over- temperature Restrain surge interference,eliminate noise,
protection for thunder striking,provide the reliable power to the
home appliances.
Supply the reliable long back up time power for the home appliances
and office appliances  Solar power systems etc.

MODE		3115CS 1000-6000Watt inverter Pure Sine wave Output
		1000W	1500W	2000W	3000W	4000W	5000W	6000W
Input  Wave form		Sine wave (utility or generator)
Nominal Voltage		120Vac           230Vac
Low voltage re trip		90v ±4% & 184v/154v ±4%
Low voltage re engage		100v ±4% & 194v/164v±4%
High voltage re trip		140v ±4% & 253v ±4%
High voltage re engage		135v ±4% & 243v±4%
Max Input AC Voltage		150VAC        270VAC
Nominal Input Frequency		50Hz/ 60Hz  (auto detection)
Low freq trip		47Hz for 50Hz,57Hz for 60Hz
High freq trip		55Hz for 50Hz,65Hz for 60Hz
Output Wave form		(Bypass mode)same as input
Protection Over-Load		Circuit  breaker
Short circuit Protection		Circuit  breaker
Transfer Switch Rating		30Amp or 40Amp
Efficiency on line transfer mode		95%+
Line transfer time		10ms  Typical
Bypass without battery connected		Yes
Max bypass current		30 amp or amp
Bypass over load current		30 amp or amp:Alarm
Inverter specification/output
Output continuos power watts		1000	1500	2000	3000	4000	5000	6000
Output continuos power VA		1000	1500	2000	3000	4000	5000	6000
Power factor		0.9-1.0
Nominal Output Voltage rms		120/230VAC
Output Voltage regulation		+/- 10%rms
Output frequency		50Hz ± 0.3Hz or 60Hz ± 0.3Hz
Safety Certification		>88%
Surge ratings		3000	6000	9000		12000	15000	18000
Short circuit protection		Yes,fault after 1 secs
Inverter specification/input
Nominal input voltage		12V		24V			48V
Minimum start voltage		10V		20V			40V
Low battery alarm		10.5V		21V			42V
Low battery trip		10V		20V			40V
High voltage alarm		16V		32V			64V
Power saver		Below 25 watts when enabled
Charger mode specification
Input voltage range		95-127VAC				194-243VAC/164-243VAC(W)
Output voltage		Dependent on battery type
Charge current		35A/70A  MAX
Battery initial voltage for start up		0-15.7v for 12v(*2 for 24v;*4 for 48v)
Over charge protection shutdown		15.7v for 12v(*2 for 24v;*4 for 48v)
Charger curves(4stage constant curren)battery types
4 step digital controlled progressive charge
Battery type		Fast V		Fast V( *2 for 24v;*4 for 48)
Gel U.S.A		14		13.7
A.G.M. 1		14.1		13.4
A.G.M. 2		14.6		13.7
Sealed lead acid		14.4		13.6
Gel euro		14.4		13.8
Open lead acid		14.8		13.3
Calcium		15.1		13.6
De-sulphation		15.5 for 4 hrs
Remote control/RS232/USB		Yes. Optional
