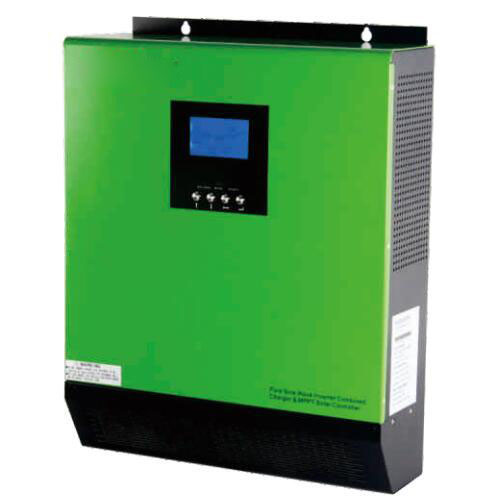

off-Grid Solar Inverter High Frequency Pure Sine Wave

Prod Model:	WSP6112

Product Description

off-grid  solar inverter high frequency pure sine wave
Wall mounted integrated solar power inverter system
1.Pure sine wave output
2.built-in MPPT solar charge controller
3.Selectable input voltage range for home appliances and personal computers
4.Selectable charging current based on applications
5.Configurable AC/Solar input priority via LCD setting
6.Compatible to mains voltage or generator power
7.Auto restart while AC is recovering
8.Overload and short circuit protection
9.Smart battery charging design to optimize battery performance
10.Cold start function
11.Parallel operation with up to 6 units only available for 4KV/5KV
12.Optional remote panel available

full protection:
Protection for low battery voltage,over load,output short circuit and over-temperature restrain surge interference,eliminate noise, protection for thunder striking, provide the reliable power to the home appliances.

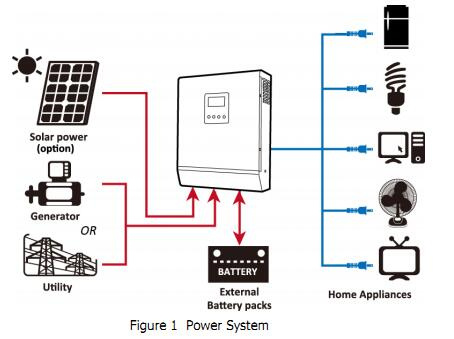

Applications:
Supply the reliable long back up time power for the home appliances and office appliances solar power system etc.

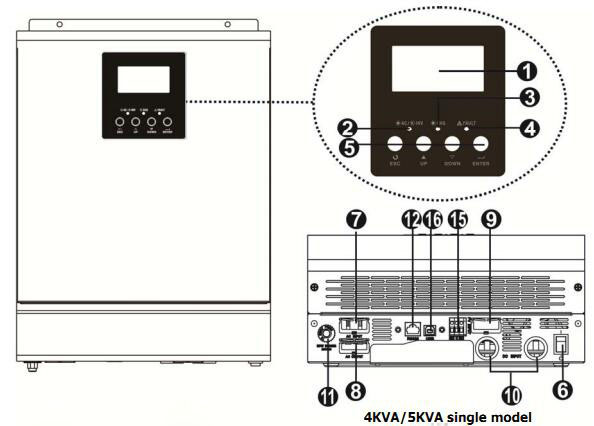

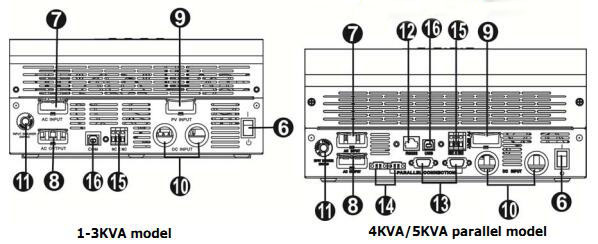

1.LCD display
2.Status indicator
3.Charging indicator
4.Fault indicator
5.Function buttons
6.Power on/off switch
7.AC input
8.AC output
9.PV input
10.Battery input
11.Circuit breaker
12.RS232 communication port
13.Parallel communication cable(only for parallel model)
14.Current sharing cable(only for parallel model)
15.Dry contact
16.USB communication port

Specification
Model			1.5K-12	1.5K-24	3K-24	4K	5K
Default Battery System Voltage			12VDC	24VDC	24VDC	48VDC	48VDC
Inverter Output	Rated Power		1500VA / 1200W		3000VA / 2400W	4000VA / 3200W	5000VA / 4000W
	Surge Power		3000VA		6000VA	8000VA	10000VA
	Waveform		Pure sine wave
	AC Voltage Regulation(Batt.Mode)		230VAC±5%
	Inverter Efficiency(peak)		90%~93%			93%
	Transfer Time		10ms (For personal computers) 20ms(For Home Appliances)
AC Input	Voltage		230VAC
	Selectable Voltage Range		170-280VAC (For personal computers) 90-280VAC (For home appliances)
	Frequency Rang		50Hz/60Hz(Auto sensing)
Battery	Nominal voltgae		12VDC	24VDC		48VDC
	Floating Charge Voltage		13.5VDC	27VDC		54VDC
	Overcharge protection		16VDC	32VDC		60VDC
Solar Charger& AC Charger	Maximum PV Array		500W	1000W		4000W
	MPPT Range @ Operating Voltage		15VDC~80VDC	30VDC~80VDC		60VDC~115VDC
	Maximum PV Array Open Circuit Voltage		100VDC			145VDC
	Maximum Solar Charge Current		40A			80A
	Maximum AC Charge Current		60A			60A
	Maximum Charge Current		100A			140A
	Maximum Efficiency		>98%
Mechanical Specifications	Demensions(W*H*D)mm		100*272*355			120*295*468
	Net weight(kg)		7KG			11KG
Other	Humidity		5% to 95% Relative Humidity (Non-condensing)
	Operating Temperature		-20ºC-55ºC
	Storage Temperature		-30ºC-60ºC
Standard: safety:IEC60950-1-1/IEC62040-1-1/AS62040-1-1, IEC62040-2/AS62040-2/EN50091-2 CLASS, Design and test: IEC62040-3/AS62040-3
Note: Product specifications are subject to change without further notice.
