Shenzhen ZLPOWER Electronics Co., Ltd. >> 1000va 1200va 2000va High Efficient Home Solar Power Inverter

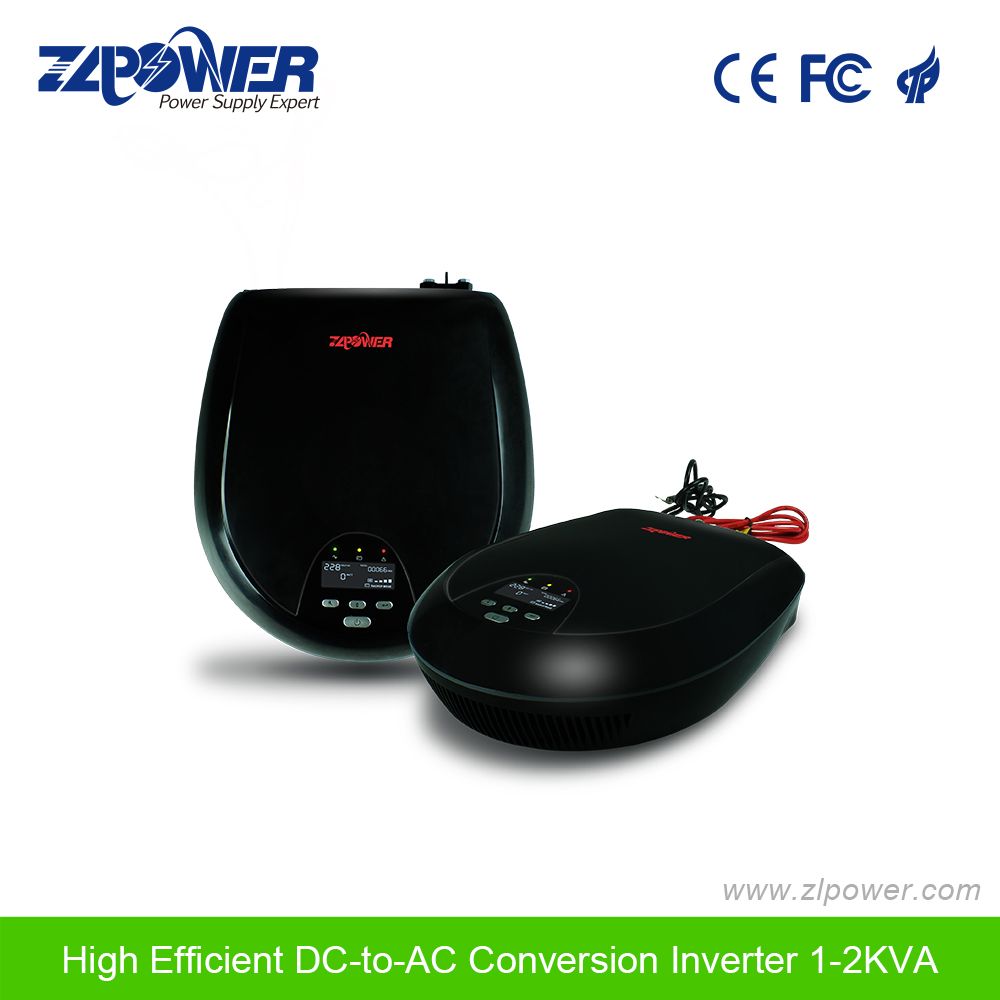

1000va 1200va 2000va High Efficient Home Solar Power Inverter

1000va 1200va 2000va High Efficient Home Solar Power Inverter
Price: Negotiable/Piece
Min Order: 20/Piece
Pay Type: T/T
Prod Model: HDX Plus
Input Voltage: 12V/24V
Output Voltage: 230V
Capacity: 1000va/1200va/2000va
Restart: Auto Restart While AC Recovery
Efficiency(Eco Mode): >96%
Usage: Home and Office
Protection: Discharger, Ovrcharge, Overload, Over Temperature
Color: Black
Warranty: 2 Years

Product Description

Features
Automatic line-to-battery switchover.
Configurable Input Voltage ranges via LCD setting.
High efficient DC-to-AC conversion, minimizing energy loss.
Rack design&wall-mounted design for flexible installation.
Built-in enhanced charger.
Built-in solar charger controller up to 40A.
Intelligent 3-stage charger control for efficient charging and preventing overcharge.
Auto restart while AC recovery.
Multiple protection:low battery alarm, low battery shutdown,over charger protection, overload protection,over temperature protection, short circuit protection.
with the environmental temperature control charge management.

Specifications
Model                                    HDX Plus1K-12       HDX Plus 1.2K-12        HDX Plus 2K-24
CAPACITY       VA/W                     1000VA/720W         1200VA/900W          2000VA/W
BATTERY       VDC                      12VDC                 12VDC                24VDC
Input            Nominal Voltage         220/230/240VAC
                Voltage Range           90-280VAC(Wide Range);170-280VAC(Narrow Range)
Output          Voltage                  230VAC
                Voltage Regulation       10%/-18%
                (Bat.Mode)
                Frequency               50/60Hz(Adjustable)
                Frequency Regulation
                (Bat.Mode)               +/-1Hz
                Output Waveform         Modified Sine-wave
BATTERY&     Charge curent            20Amp                20Amp                15Amp
CHARGER      Overcharge Protection    16V                   16V                   32V
TRANSFER     Typical                   15ms Typical, 40ms Max.
TIME
Efficiency       AC to AC                >95%
               DC to AC                >80%
DISPLAY       AC Mode                Display output power, output voltage
INDICATOR     Battery Mode            The mark will flicker every 1second
               Battery Charging Mode   Displsy the Battery capacity
               Fault                    Display fault
SOLAR        MAX.input Power         450W                 450W                  900W
BATTERY     Charging Current         40Amp
CHARGER     Nominal Battery Voltage  12V                   12V                    24V
              Optimal Work Voltage     15V~18V              15V~18V               30V~36V
              Range
               Max.PV Input Voltage     55V
PROTECTION  Full Protection          Discharge,overcharge,overload,over temperature protection.
PHYSICAL     Dimension(L*W*H)       373*121*305mm
               Net Weight(kg)        2.18kg                2.49kg                   2.37kg
ENVIRONMENT Operating environment  0-50,5%-90% relative humidity(non-condensing)
               Storage Environment    -15 to 55, 5% to 95% humidity(non-condensing)
               Noise Level            Less than 50dB
