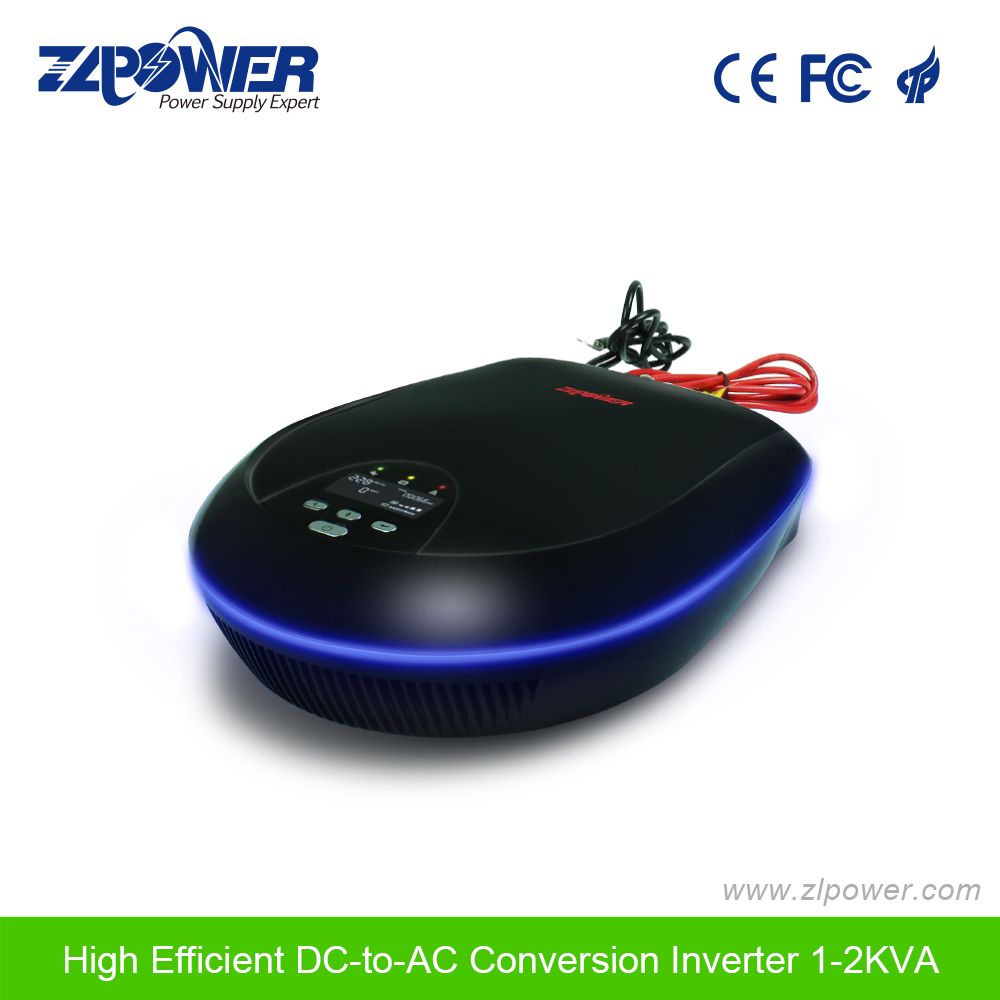

1000va 2000va Micro Modified Sine Wave Home Power Inverter
| Price: |
US $ 48/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Money Gram |
| Prod Model: |
HDX Series |
| Rated Power: |
1000va/2000va |
| Input Voltage: |
220/230/240VAC |
| Output Voltage: |
230VAC |
| Frequency: |
50/60Hz |
| Protection: |
Discharge/Overcharge/Overload/Over Temperature |
| Auto Restart While AC Recovery: |
Yes |
| Rack & Wall-Mounted Design: |
Yes |
| Warranty: |
2 Years |
Product Description
HDX is a DC-to-AC inverter with auto line-to-battery transfer and interagrated charging system, serving as an extended run UPS, a standalone power source or an automotive inverter.
HDX supplies power from AC power and DC source. When AC cable is connected to a wall socket, utility power goes to connected equipment(s) and/or charges the battery set via charging system.
In the battery mode,HDX automatically converts battery energy into AC power for backing up the connected devices.
Features:
Automatic line-to-battery switchover.
Configurable Input voltage ranges via LCD setting.
High efficient DC-to-AC conversion minimizing energy loss.
Rack design & wall-mounted design for flexible installation.
Built-in enhanced charger.
Intelligent 3-stage charger control for efficient charging and preventing overcharge.
Auto restart while AC recovery.
User-friendly LCD+LED indications.
Multiple protection: low battery alarm, low battery shutdown, over charger ptotection, overload protection, over temperature.
With the environmental temperature control charge management.
Specification:
| Model Parameters | HDX 1000-12 | HDX 1200-12 | HDX 2000-24 |
| *1 CAPACITY | VA/W | 1000VA/700W | 1200VA/900W | 2000VA/1500W |
| BATTERY | VDC | 12VDC | 24VDC |
| AC Input | Nominal input Voltage | 220/230/240VAC |
| Selectable Voltage Range | 170-280VAC (Narrow Range);90-280VAC (Wide Range) |
| AC Output | Output Voltage Waveform | Modified sine wave |
| Voltage | 230VAC |
| Voltage Regulation (Batt.Mode) | 10% / -18% |
Nominal Output
Frequency (Hz) | ±1HZ |
| Battery & Charger | Charger Current | 20Amp | 15Amp |
| Overcharge Protection | 16V | 32V |
| Transfer Time | Typical | 15ms Typical, 40ms Max. |
| Efficiency | AC to AC | >95% |
| DC to AC | >80% |
| Display Indicator | AC Mode | Display output power, output voltage |
| Battery Mode | | The mark will flicker every 1second. |
|
| Battery Charging Mode | Display the Battery capacity |
| Fault | Display fault |
| Audible Alarm | Low Battery at Battery Mode | Sounding every 2 seconds |
| Overload | Sounding every 0.5 second |
| Fault | Continuously sounding |
| Environment | Operating Temperature
Range | 0- 50°C, 5%-90 % relative humidity (non-condensing) |
| Storage Environment | -15°C to 55°C, 5% to 95% humidity (non-condensing) |
| Noise Level | Less than 50dB |
| Physical | Dimension(L*W*H) | 373*121*305mm |
| Protection | Full Protection | Discharge, overcharge, overload, over temperature protection. |
| Net Weight(kg) | 1.98kg | 2.29kg | 2.17kg |
About ZLPOWER
Founded in 2007, Shenzhen ZLPOWER Electronics Co., Ltd. (ZLPOWER for short) is a key hi-tech enterprise in state "Torch Plan, " integrating science, industry, trade, and investment into a whole. It has registered capital of RMB 10million, covering a floor area of 2000sq. M, and owning assets of RMB 30 million.
As a large-scale enterprise group with total assets exceeding RMB 30 million, it currently employs more than 300 staff, operates R & D institutions, 10 products lines, and 8 overseas branches and offices for sales and service.
Also as a professional uninterruptible power supply manufacturer in Shenzhen, China, ZLPOWER mainly produce high frequency online UPS, computer PC UPS, rack mount online UPS, low frequency Industry three phase UPS, UPS Inverter, solar inverter, solar charger controller, Solar/UPS Battery and other related products.
In ZLPOWER, we are strictly on quality inspections. We implement strict IOC, IPQC, FQC, OQC, QA, and other quality control measures in every process according to ISO9001, including to raw materials selection, production, package, and shipment.
Thus, we are ISO9001: 2008 and SGS certificated, and all our UPS, Inverter power supply products have been approved by CE (LVD/EMC), UL tests. As a result, they are popular among our customers from Italy, Germany, South Africa, Egypt, Mozambique, Nigeria, UAE, Ukraine, Russia, Uzbekistan, Philippines, Chili, Peru, Brazil, Mexico and more.
ZLPOWER is looking for agent worldwide to distribute our quality UPS system, Inverter power and solar products to their local markets. Any interests please welcome to contact us today and look for best power solution.
