1000W 3000W High Frequency Pure Sine Wave Power Inverter
| Price: |
US $ 126-289/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
5/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
LW1000-LW6000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Display: |
LED, LCD |
| Inside AC Charger: |
35AMP/70AMP |
| Phase: |
Single Phase |
| Type: |
Standby |
| Protection: |
Short Circuit |
| Brand: |
Zlpower |
Product Description
1000W 3000W High Frequency Pure Sine Wave Power InverterMain Features1: Pure sine wave output (THD < 3%) for wide range of applications and harsh environment
2: Three times peak surge power
3: Multiple protection: Input low voltage / Overload / Short circuit / Low battery alarm / Input over voltage / Over temperature
4: Simple design for flexible&durable use and cost saving.
5: Nice applications for Air Conditions, laser-printers, microwave oven, refrigeratory and so on.
Specification| Power Star W7 Inverter Model | 1000w | 2000w | 3000w | 4000W | 5000w | 6000w |
| Input Voltage Waveform | Sinusoidal (utility or generator) |
| Nominal Input Voltage | 230Vac |
| Low Line Disconnect | 184Vac± 4% |
| High Line Disconnect | 253Vac± 4% |
| Max AC Input Voltage | 270Vrms |
| Nominal Input Frequency | 50Hz/ 60Hz (Auto detection) |
| Over-Load Protection (SMPS load) | Circuit breaker |
| Output Short Circuit Protection | Circuit breaker |
| Efficiency (Line Mode) | > 95% |
| Transfer Switch Rating | 30A |
| Transfer Time (Ac to Dc) | 20ms (typical) |
| Output Voltage Waveform | Sine wave |
| Rated Output Power (W) | 3000W |
| Power Factor | 0~1.0 |
| Nominal Output Voltage (V) | 230Vac |
| Output Voltage Regulation | ± 10% rms |
| Nominal Efficiency | > 80% |
| Nominal DC Input Voltage | 12V | 12V | 12V | 24V | 24V | 24V |
| Nominal Charge Current | 70A | 70A | 70A | 35A | 35A | 35A |
| Charge Current Regulation | ± 5Adc |
| Battery initial voltage | 0 - 15.7 Vdc (can operate with 0V battery) |
| Communication: | RJ11 (Used for factory testing. No customer interface available) |
| Safety Certification | Compliance with UL458 | CE(EN60950) |
| EMI Classification | FCC, CLASS A | EN50091-2, CLASS A |
| Operating Temperature Range | 0° C to 40° C |
| Storage temperature | -15º C to 60º C |
| Operation humidity | 5% to 95% |
| Audible Noise | 60dB max |
| Cooling | Forced air, variable speed fan |

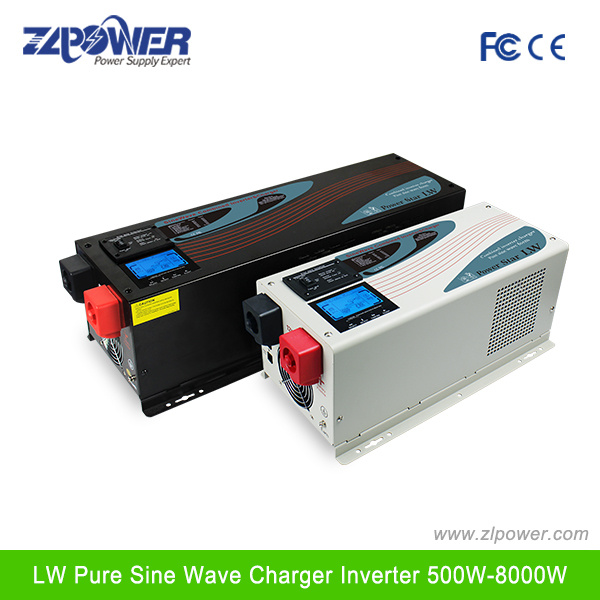

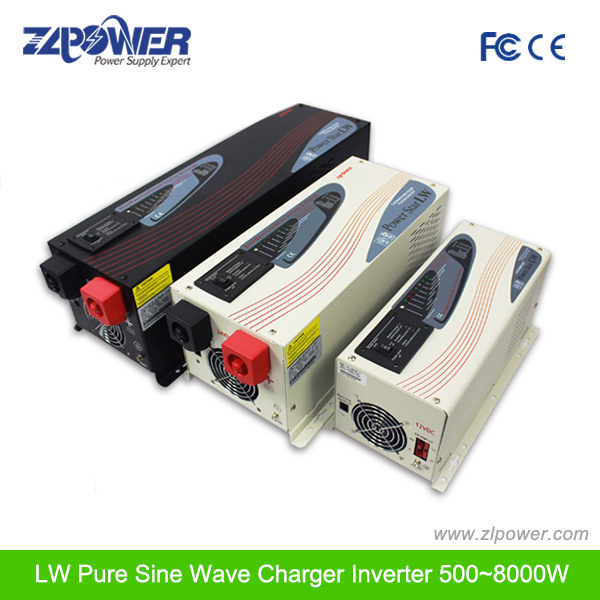

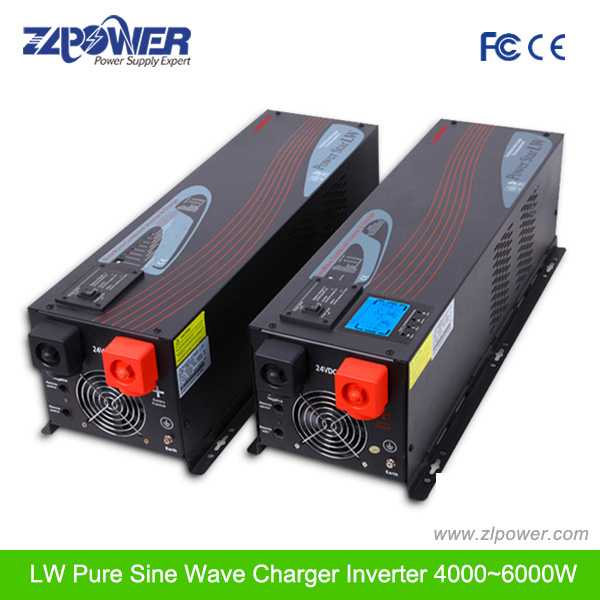

Photos
Why choose us* Fast and accurate assembly line
* Excellent R&D team for OEM and special design Service
* Responsible Pre-sale and After-sale Service Team
* Good Integration of office and production
* Stronger Oversea Sales team for 68 countries and markets over the world
About ZLPOWER
Founded in 2007, Shenzhen ZLPOWER Electronics Co., Ltd. (ZLPOWER for short) is a key hi-tech enterprise in state "Torch Plan, " integrating science, industry, trade, and investment into a whole. It has registered capital of RMB 10million, covering a floor area of 2000sq. M, and owning assets of RMB 30 million.
As a large-scale enterprise group with total assets exceeding RMB 30 million, it currently employs more than 300 staff, operates R & D institutions, 10 products lines, and 8 overseas branches and offices for sales and service.
Also as a professional uninterruptible power supply manufacturer in Shenzhen, China, ZLPOWER mainly produce high frequency online UPS, computer PC UPS, rack mount online UPS, low frequency Industry three phase UPS, UPS Inverter, solar inverter, solar charger controller, Solar/UPS Battery and other related products.
In ZLPOWER, we are strictly on quality inspections. We implement strict IOC, IPQC, FQC, OQC, QA, and other quality control measures in every process according to ISO9001, including to raw materials selection, production, package, and shipment.
Thus, we are ISO9001: 2008 and SGS certificated, and all our UPS, Inverter power supply products have been approved by CE (LVD/EMC), UL tests. As a result, they are popular among our customers from Italy, Germany, South Africa, Egypt, Mozambique, Nigeria, UAE, Ukraine, Russia, Uzbekistan, Philippines, Chili, Peru, Brazil, Mexico and more.
ZLPOWER is looking for agent worldwide to distribute our quality UPS system, Inverter power and solar products to their local markets. Any interests please welcome to contact us today and look for best power solution.
