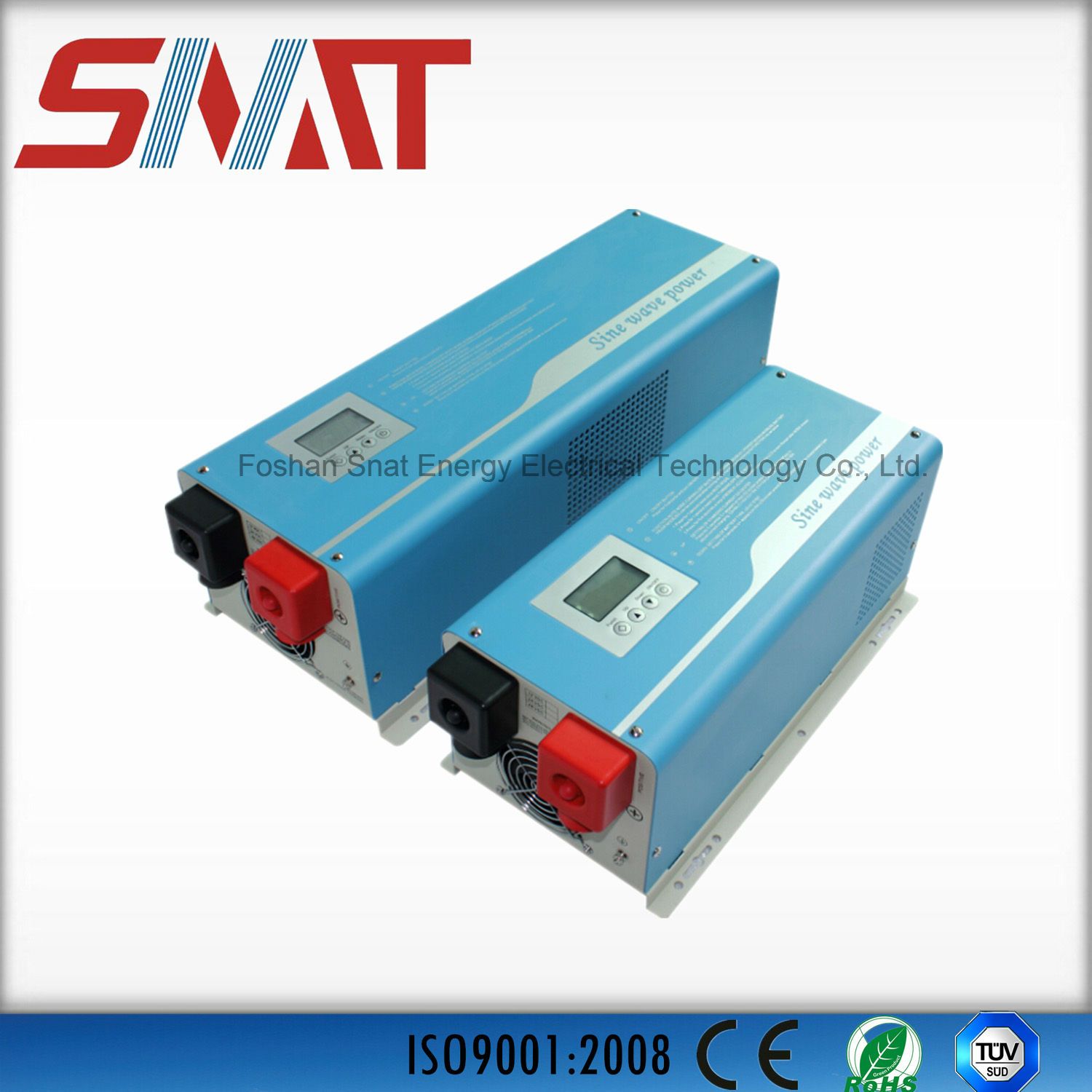

1000W-6000W off-Gird Pure Sine Wave Inverter for Power System

Prod Model:	FT-100600W
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Brand Name:	Snat
OEM/ODM:	Provide
Sample Order:	Accept
Accessory:	Controller, Inverter, Battery.Power System
Phase:	Single
Power Source:	Solar Power
Application:	School, Streets, Pasturing Areas, etc
Brand:	Snat

Product Description

1000W-6000W off-Gird Pure Sine Wave Inverter for Power System

SNI-T1060 pure sine wave solar inverter was designed by all digital technology concept

Its real pure sine wave output and can adapt to all kinds of loads and very suitable for being used for the place which electricity is not stable.

Product Overview
With the double MCUs. the product provides different charge voltages and charge currents to realize charge management for batteries of different types its mains supply preferred mode energy-saving mode and battery preferred mode are all settable. The US making it easy to meet the different application needs of users. It has an LCD. It is widely applied to families, schools, streets, frontier defense, pasturing areas, industrial equipment. satellite communication equipment, military vehicle-borne equipment ambulances, police cars, ships and more

Product features
Excellent performance because of double MCU intelligent design
Pure sine wave output for compatibility with loads of different types
Visualization of operation status of the equipment through a digital LCD
A wide range of input voltage, accurate output and full automatic voltage stabilization
Settable battery type and charge current for the charge management of batteries of different types
Settable mains supply preferred mode, energy-saving mode and battery preferred mode for easy meeting of the needs of different users
Overall protection functions (battery overvoltage protection, battery under voltage protection, overload protection, short circuit protection and over temperature protection)


Type:FT-KW		1KW	1.5KW	2KW	3KW	4KW	5KW	6KW
Rated power		1000w	1500W	2000w	3000w	4000w	5000w	6000W
Battery	Rated voltage	12VD/24VDC /48VDC		24VDC/48VDC		48VDC/96VDC
	Charge current	30A(default)-C0-C6 can be set
	Battery type	U0-U7 can be set
Input	Voltage range	85-138VAC/170-275VAC
	Frequency	45-65Hz
Output	Voltage range	50/60Hz±1%( Inverter mode)
	Frequency	110VAC/220VAC;±5%( Inverter mode)
	Output wave	Pure sine wave
	Switching time	<10ms( traditional load)
	Efficiency	>85%(80% Resistance load)
	Overload	110-120%/30S;>160%/300ms;
	Protection	Battery over voltage protection, battery under voltage protection, overload protection, short circuit protection, over temperature protection and more
Operating ambient temperature		0-40ºC
Storage ambient temperature		-15 - +50ºC
Operating/storage ambient		0-90% no condensation
Machine size: L*W*H (mm)		480*222*182			655*248*182
Package size: L*W*H(mm)		560*290*235			735*316*235

Warranty:
Quality warranty for 1 year;Parts will be shipped for free during warranty period.

Delivery time:
Stick to contract.

Concurrently engaged in relative solar power system products such as solar panel, gel battery, sealed lead acid battery, Combiner box, etc

Accept special design requirements.
