| Prod Model: |
DX1000WHY |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Power: |
1000W |
| Output Frequency: |
50/60Hz |
| Output Waveform: |
Modified Sine Wave |
| High Volt Cut Off: |
>DC15V |
| Overheat Protection: |
Yes |
| Overload/Lowload Protection: |
Yes |
| Overvoltage/Lowvoltage Protection: |
Yes |
| UPS Function & Battery Charger: |
Yes |
| Housing Material: |
Aluminum Alloy |
| Controller: |
30A |
Product Description

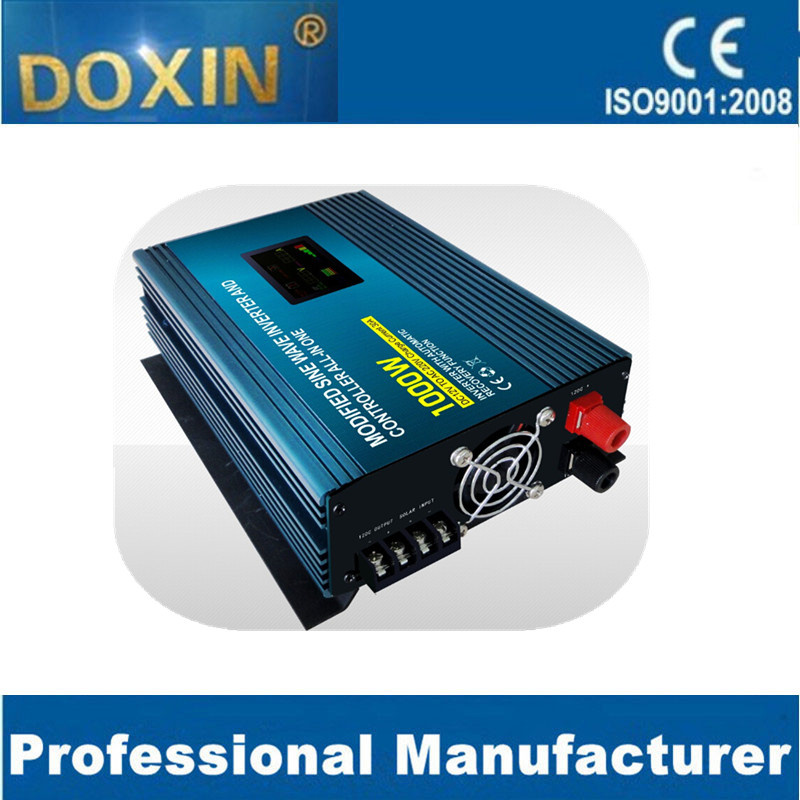

1000W Hybrid Inverter with 30A controller inside
Features:
Output frequency: 60/50Hz
Input Voltage: DC12/24V/48V
Output voltage: AC120/220V
Rated Power: 1000W Surge Power: 2000W
Wave Form: Modified sine wave
Function: Automatic Recovery/Cooling fan
Protection Function: Under Voltage/Over voltage/OVer temp/Over load/ Short Circuit/ Reverse Battery protection
Product Size: 24.5*16.9*6.7CM
Product weight: 1.662KG
CTN Means: 4*31*39CM
QTY: 10
N.W: 20.94KG G.W: 21.74KG
Notice Ideally suitable for Journeys, Camping, Tents, Boat Trip, Working on the way and everywhere, where is no electricity !
Simply connect with 12v/24v Battery as in a Car, Motorcycle, Camper or Boat and use 110v/ 220v electrical appliances.
Some about us
DOXIN is a professional manufacture specialized in electronics and solar products ,We produce electronics products more than 10 years .We have professional development team.We pursues to establish the culture of "quality first ,reputation best ".
Product category
car inverter
pure sine wave invertre
modify sine wave inverter
solar energy power source
solar charge controller
Our products usually are exported big quantity in to Europe ,USA,African ,Russia ,Australiaetc. and our power inverter serials enjoy better reputation .With reliable quality and stable performance.
Input voltage range: | DC12
|
| Output voltage: | AC220V
|
| Output frequency: | 50Hz+/-2Hz
|
| Electric fuse: | 10A/15A/20A/40A/70A
|
| Under voltage alarm (unloaded): | 10.4-11.0v
|
| Low voltage shut-down range (unloaded): | 9.7-10.3v
|
| Over voltage shut-down range (unloaded): | 14.5-15.5v
|
| Current consumption (unloaded): | < 0.2A
|
| Conversion efficiency: | > 90%
|
| Durative output power: | 1500W
|
| Twinkling maximum power (peak power): | 3000W
|
| Overload protection | 1500W - 1800W |
| Temperature protection | 60° c --+70° c |
| Output waveform: | Modified sine wave
|
| Size: | 350*155*55(mm)
|
| Weight: | 2050g
|
For more info you need, pls contact us anytime.
Call us: +86 18028085970
Guangzhou Doxin Electronic Factory is a manufacturer specialized in automobile electronic products. Currently, we mainly produce Car Power Inverter, Solar charge controller, Battery charger, transformer, Power adapter, Mobile phone charger, car emblem badge, wheel center cap, tire valve cap, car wheel sticker, car logo keychain which was established at the beginning of 1998.
We utilize advanced encrypting technologies, full automatic production line, Multi function testing. With features of "high efficiency, detection function, intelligent and environmental protection and energy saving", Products meet EU RoHS Green Directives, and wildly used in Car, Home furnishing, Outdoor, Travel, Patrol, Fieldwork ect.
Our production base with the perfect size was built and the base passed ISO9001: 2000 quality system certification, CE certification, RoHS certification, LVD certification, ETL certification and E-MARK. Modern factories, outstanding management and advanced technology become the best guarantee of product quality. Our products are selling well in our country, Europe, the United States, Middle East, Southeast Asia and other area with unique and innovative design, low interference technology, high performance-price ratio, the best technology and excellent quality. With over 10 years of R & D and production experience, OEM service. Our company has become one of the famous power inverter manufacturers in China.
Our Company continued to expand into international markets, at the same time, efforts to develop the domestic market, "DOXIN" products have caused widespread concern in the industry through the domestic marketing system, such as dealer network, OEM market. Car owners comprehensive experience to DOXIN forefront automotive technology products, which bring them convenience and happiness, once again demonstrates the strength and determination of the Guangzhou DOXIN electronic factory.
Adhering to the business principle of "Achieve Mutual Benefits from Good Cooperation", our employees are looking forward to establishing business relationships with clients both in the domestic and the overseas markets.
