| Prod Model: |
WST-1000S |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Western Europe |
| Size: |
485*165*85 |
| Weight: |
4.7 |
| Output Frequency: |
50Hz/60Hz |
| Output Current: |
1 |
| Antistop: |
Solar Inverter/ Sine Wave Inverter |
| Workmanship: |
The Exquisite German Technology |
Product Description
Specifications
off grid inverter 1000w
CE,OEM,ODM
in:12vdc 24vdc 48vdc 110vdc
out:100/110/120v or 220/230/240vac
off grid solar system

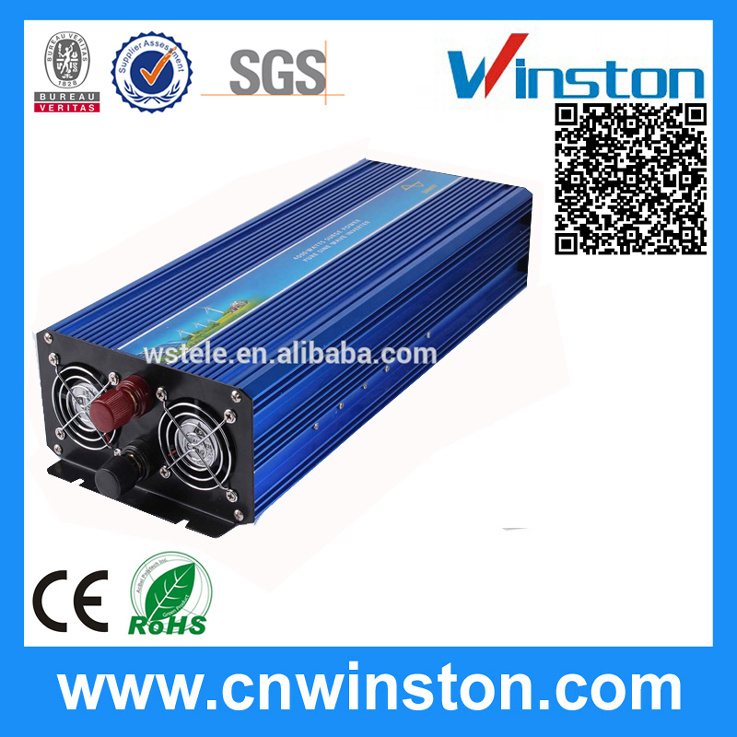

Off grid inverter 1000w with CE approval use for off-grid solar system
1.Feature:
1) Pure sine wave output
2) Low work noise,high efficiency
3) Small,light and artistic,benifited from adopting theSMD paster technology.
4) Featured with high reliability and low failure rate by using the advanced Double-CPU single chip intellectual control technology
5) Cooling fan is intellectual controlled,and its working status is controlled by CPU,which mostly increased its service life and helps to save the power consumption,improve work efficiency and lower the working noise.
6) With complete protection:Overload protection, inside overheat protection, output short circuit protection, input under-voltage protection, input over voltage protection,etc,improving the reliability of the products greatly.
2.Application:
1) Travel set equipment:military vehicles,police cars,ambulances,ships,traffic lights,etc.
2) Industry equipments series: solar energy, wind power, gas discharge lamp and etc.
3) Office area: Computer, printer, copier, scanner, digital camera and etc.
4) Kitchen utensils series: Micro-wave,over battery, induction cooker,refrigerator, and etc.
5) House appliance devices: Electric fans, vacuum cleaner, AC, lighting lamps, and etc.
6) Power tool series: electric saw, drilling machine, punching machines, air compressors, and etc.
3.Data sheet:
| Model | WST-1000S |
| Input | DC Voltage | 12V OR 24V OR 48V OR 110V |
| Voltage Range | 10-15VDC or 21-30VDC or 42-60VDC or 92-132VDC |
| No Load Current Draw | <0.9 |
| Efficiency | > 85% |
| DC Connector | Cables With Clips |
| Output | AC Voltage | 100/110/120VAC or 220/230/240 VAC |
| Continuous Power | 1000W |
| Surge Power | 2000W |
| Waveform | Pure Sine Wave |
| Frequency | 50Hz or 60Hz |
| AC Regulation | 3% |
| Protection | Low Voltage Alarm | 10.5vDC±0.5V or 21DC±1V or 42VDC±1V or 100VDC±1V |
| Low Voltage Shut Down | 10vDC±0.5V or 20vDC±1V or 40VDC±1V or 96VDC±5V |
| Over Load | Shut Off Output |
| Over Voltage Shut Down | 15.5V or 30.5V or 61.2V or 120V |
| Over Thermal | Shut Off Output Automatically |
| Fuses | Short Circuit |
| Environment | Working Temperature | Between -10°C and +50°C |
| Working Humidity | 20%~90%RH non-condensing |
| Storage Temperature | Between -30°C and +70°C |
| Package | Machine Size(mm) | 335*165*85 |
| Packing Size(mm) | 430*230*148 |
| Net Weight(kg) | 3.3 |
| Gross Weight(kg) | 3.9 |
| Packing Mode | Carton |
| Other | Start | Soft Start |
| Cooling Ways | Intelligent Cooling Fan |
4.Plug type:
