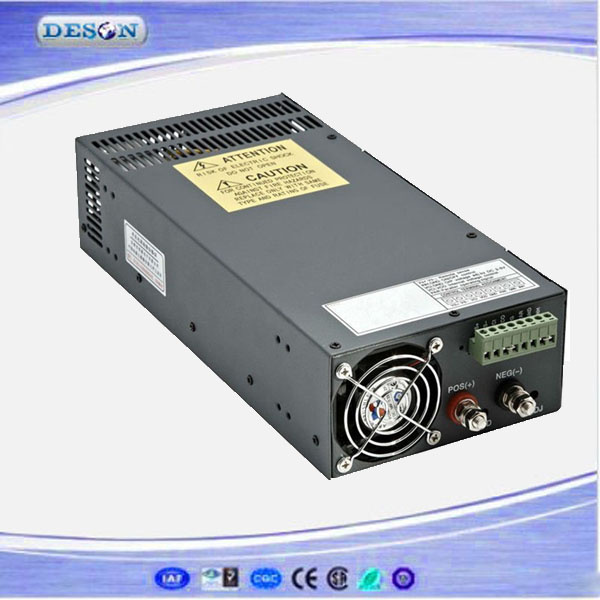

1000W Single Output Switching Mode Power Supply

Prod Model:	SCN-1000
Power:	1000W
Input:	90~132AC/180~264AC
Output:	5V/12V/24V
Size:	247X147X64mm
Weight:	2.1kgs
Output Type:	Single
Warranty:	2 Years
Input Voltage:	Full Range
Connection Mode:	Parallel Switching Power Supply
Starting Mode:	Self-excited Switching Power Supply
Voltage Regulating Mode:	Frequency Modulation Type
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	CCC
Output Power:	1000W
Brand:	Deson
Energy Transmission:	Switching Mode Power Supply

Product Description

1000W Single Output Switching Mode Power Supply With Parallel Function

1.Universal AC Input
2.Built in parallel operation function
3.Built in remote ON/OFF control
4.Built in remote sense function
5.Protection : short circuit/Overload/Over voltage/ Over temperature
6.Cooling by DC fan
7.100% full load burn-in test
8.Soft-start current can reduce the AC input impact effective
9. 2 years warranty


Product Description


Model Performance	SCN-1000-12	SCN-1000-13.5	SCN-1000-15	SCN-1000-24	SCN-1000-27	SCN-1000-48
DC Output Volta	12V	13.5V	15V	24V	27V	48V
Output voltage tolerance(Note 2)	±1%	±1%	±1%	±1%	±1%	±1%
Rated output current	50A	44A	40A	25A	22A	12.5A
Output current range	0-40A	0-36A	0-32A	0-20A	0-18A	0-10A
Ripple and noise(Note 3)	240mVp-p	240mVp-p	240mVp-p	240mVp-p	200mVp-p	300mVp-p
Inlet stability(Note 4)	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%
Load stability(Note 5)	±1%	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%
DC output power	600W	600W	600W	600W	600W	600W
Efficiency	84%	84%	83%	85.5%	86.5%	87%
DC voltage adjustable range	10-13.2V	12-15V	13.5-18V	20-26.4V	24-30V	41-56V
Input voltage range	88~132VAC/176~264VAC CHOOSE BY SWITCH 47~63Hz;124~370VDC
Input current	7A/115V 3.5A/230V
Surge Current	0.95/100~240VAC
Leakage Current	18A/115V 36A/230V
Overload protection	<3.5mA/240VAC
over-voltage protection	105%~135% type:FOLDBACK cut off output reset:Automatic recovery
High temperature protection	13.8~16.2V	15.5~18.2V	18~21V	27.6~32.4V	31~36.5V		57.6~67.2V
temperature coefficient	RTH1 OR RTH2>=55°C FAN ON,<=45°C FAN OFF,>=70°C cut off output
Start-up,upper,rentention time	±0.03%°C(0~50°C)
shock resistance	1.5s,50ms,20ms
Withstand	10~500Hz,2G 10min./1circle,time:60min.,axes
Insulation Resistance	Input to Output Isolation:3KVAC,input&shell:1.5KVAC  output &shell:0.5KVAC
work Temperature/ humidity	Input to Output Isolation,,input&shell, output &shell:500VDC/100M Ohms
Storage Temperature,temperature	-10°C~+50°C,20%~90%RH
Outline dimension	-20°C~+85°C,10%~95%%RH
Weight	291*132*68mm shell:910
Safety standards	5Kgs
EMC Standard	UL1950,TUV EN60950
Model Performance	CISPR22(EN55022),IEC1000-42,3,4,5,6,8,11 IEC100-3-2
