| Prod Model: |
YH-CHO4 |
| Model Number: |
Yh-Hco4 |
| Name: |
Radio Frequency Controller |
| Fuction: |
Dimming/Colour Changeable |
| Advantage: |
Frequency Undisturbed |
| Signal Transmission: |
RF Remote Control |
| Certification: |
CE |
| Universal: |
Universal |
| Transmission Distance: |
50-100m |
| Battery Type: |
AAA Battery |
| Application: |
LED Lighting Decoration |
| Type: |
Remote Control |
| Voltage: |
100V-240V |
| Material: |
Aluminum |
Product Description
& Summary:

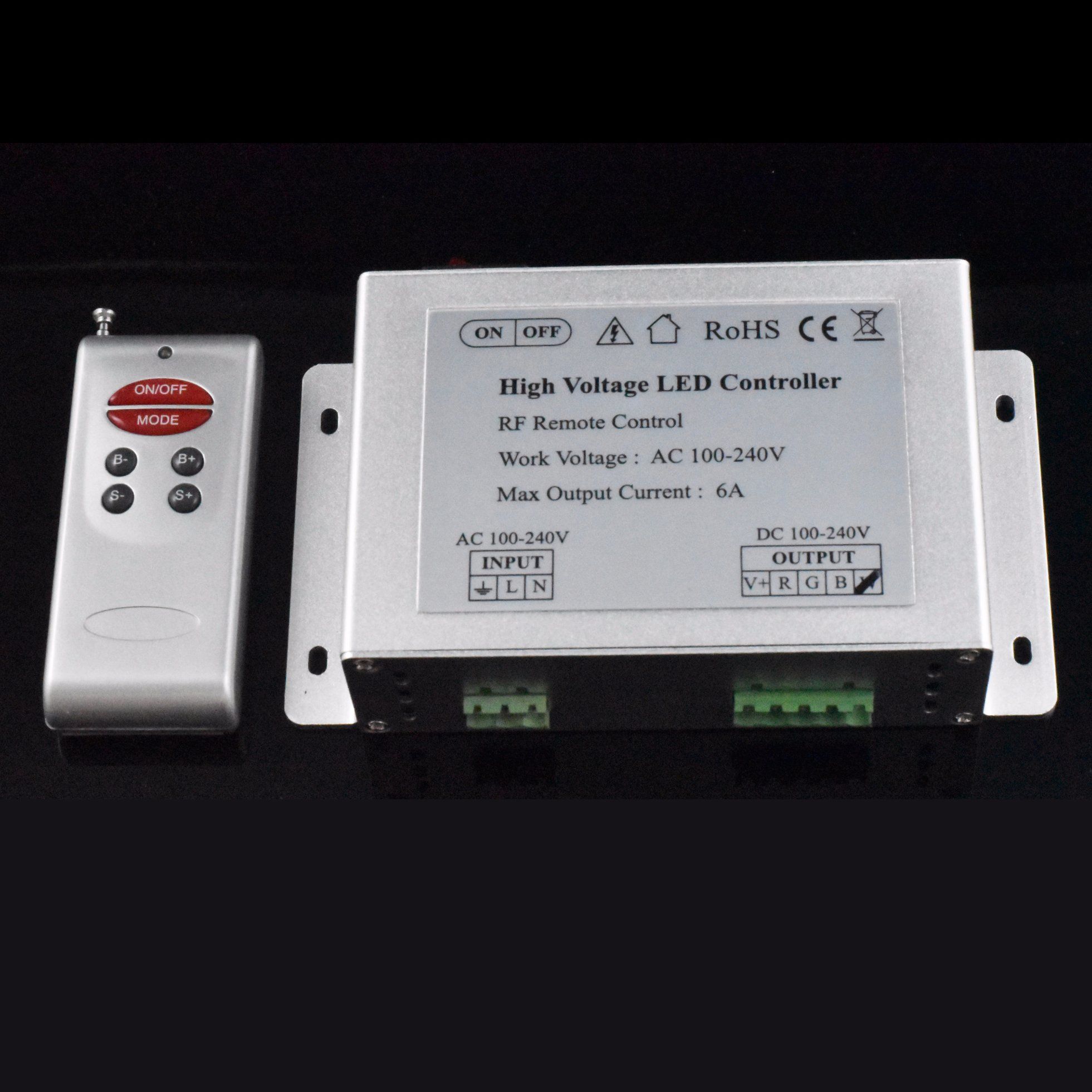

The procuct is a smart LED controller using wireless RF remote control color and brightness variations of the high-pressure lamps.the choice of color,pattern and pace of change can be carried out by using the remote control RGB lamps;while dimming,power-down memory function.the appearance of fine products,easy to use and can meet the application requirements of a variety of high-pressure light bar.
& Technical parameters:
| Controller |
| Output channels(Optional) | R G B 3Channels |
| R G B W 4Channels |
| Supply voltage | AC 100-240V |
| Loadable current | 6A |
| Output power | 660W(AC110V)~1320W(AC220V) |
| Control method | RF remote control |
| Connection mode | Common anode |
| Changing pattern | 11 (7 static color modes,4 dynamic changing pattern) |
| Dimmering mothod | PWM |
| Grey steps | 8 |
| Protection | The power input polarity protection |
| Product size | L148×W83×H35 |
| Remote |
| Working voltage | DC 12V |
| Remote control way | RF |
| Controlable distance | More than 50 meter |
| Battery types | Alkaline batteries,23A 12V |
| Key Number | 6 Keys |
| Product size | L85×W37×H16 |
| Whole machine |
| Working temperature | -20~60 ºC |
| Ldentification | RoHS |
| Weight | 420g |
| Packing size | L168×W160×H42mm |
& Features:
1.The newest PWM control technology,delicate light performance,no flicker.
2.More than 50 meters RF remote control distance.
3.Color mode changes and more flexible control.
4.Multi-type menory functions for color,modes,speed,and brightness.
5.Smart appearance,standard in put and output port,easy installation and high cost performance.
& Applications:
1. Construction decoration:commercial buildings,airports or subways.
2. Indoor decoration:hotels,shopping malls,squares,restaurants,bars,houses.
3. Outdoor decoration:advertising boards,parks,bridges,roads and overpasses,scenic spots.
4. Others:decorating for motor vehicles,samples reveal ark and the places needing RGB lights.
& Modes table:
| Serial numbet | Mode | Serial numbet | Mode |
| 1 | Static red | 7 | Static white |
| 2 | Static green | 8 | Three base color jumpy changing |
| 3 | Static blue | 9 | Seven base color jumpy changing |
| 4 | Static yellow | 10 | Three base color fade change |
| 5 | Static cyan | 11 | Seven base color fade change |
| 6 | Static purple | 12 | Static white (4 channel output effectively) |
& Installing caution:
1.Please install the products by professional electrician.
2.This product can not waterproof,please put into water-proof tank if the clients want to use it outdoor.
3.Always be sure to mount this unit in an area that will allow proper ventilation to ensure a fitting temperature.
4.Please don't install this controller in lightening,intense magnetic and high voltage fields.
5.Check if the voltage and power adapter suit the controller and LED lights.
6.Please make sure the wires can sufficiently load the LED lights for avoiding accident.
7.Please make sure all the wires are connected correctly before switching on the power.
