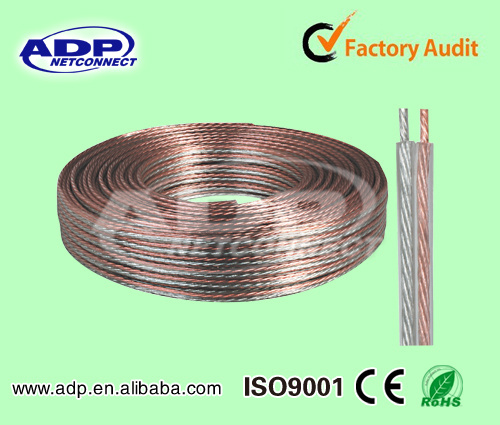

100m Transparent Speaker Cable /Wire

Name: 100m Transparent Speaker Cable /Wire
Brand: all-electronics-online.com
SKU: 741287535
Availability: InStock
Rating: 5 (27 reviews)

Price:	US $ 0.02-0.03/Meter
Trade Terms:	FOB
Min Order:	50000/Meter
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	speaker wire
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Use For:	Audio Devices Connection
Jacket Color:	Transparent Red&Black
Conductor Cross-Section:	0.5~4.0mm2
Conductor:	Copper
Roll Length:	100m with PE Film
Delivery Date:	12 Days
Application:	Speaker
Certification:	ISO9001
Color:	Transparent
Type:	Flat
Species:	2 Color Line
Connector:	as Customer Request
Brand:	ADP&OEM

Product Description

100m Transparent Speaker Cable /Wire

1) Details:
Conductor: CCA, TC, BC, Tinned CCA are available, 7*0.20mm or 7*0.24mm or 7*0.25mm or 24*0.20mm,
Cable core: From 2 core to 24 cores
Insulation: PVC
Rip cord: Yes
Shield or unshield
Shield have drain wire,
PVC insulation: PVC-flame proof or common PVC insulation
PVC jacket: PVC.
2)Application:
These cables are used for installation in signaling and alarm systemor security system.
Infra-red as well as micro wave or mixed technology systems to the switchboard.
3)Electrical Properties:
Nom. DC Resistance per Conductor@20
6.43Ohms/Kft. Nom.
CapacitanceBetween Conductors@1KHz
35pF/ft. Nom.
Operating Voltage: 300V/RMS max
Temperature Rating: -20oC to 60oC
4)Standard packing:
100m/rolll, 100m/box; 100m/plastic spool; 300m/wooden spool

5)Product Specification

Signal shield: Al/Polyester foil,coverage>100%

Double fully shield: Al/Polyester foil&tinned copper braid

Specification	Product Description
2Cx22AWG	2CX7/0.20mm OFC I.D:1.0mm PVC O.D:3.2mm PVC
4Cx22AWG	4CX7/0.20mm OFC I.D:1.0mm PVC O.D:3.8mm PVC
6Cx22AWG	6CX7/0.20mm OFC I.D:1.0mm PVC O.D:4.1mm PVC
8Cx22AWG	8CX7/0.20mm OFC I.D:1.0mm PVC O.D:4.5mm PVC
10Cx22AWG	10CX7/0.20mm OFC I.D:1.0mm PVC O.D:5.0mm PVC
12Cx22AWG	12CX7/0.20mm OFC I.D:1.0mm PVC O.D:5.5mm PVC
2Cx22AWG	2CX7/0.20mm OFC I.D:1.0mm PVC + AL O.D:3.2mm PVC
4Cx22AWG	4CX7/0.20mm OFC I.D:1.0mm PVC + AL O.D:3.8mm PVC
6Cx22AWG	6CX7/0.20mm OFC I.D:1.0mm PVC + AL O.D:4.1mm PVC
8Cx22AWG	8CX7/0.20mm OFC I.D:1.0mm PVC + AL O.D:4.5mm PVC
10Cx22AWG	10CX7/0.20mm OFC I.D:1.0mm PVC + AL O.D:5.0mm PVC
12Cx22AWG	12CX7/0.20mm OFC I.D:1.0mm PVC + AL O.D:5.5mm PVC
2Cx22AWG	2CX7/0.20mm OFC I.D:1.0mm PVC+AL+7/0.20mm OFC GroundO.D:3.2mm PVC
4Cx22AWG	4CX7/0.20mmOFC I.D:1.0mm PVC+AL+7/0.20mm OFC Ground O.D:3.8mm PVC
6Cx22AWG	6CX7/0.20mmOFC I.D:1.0mm PVC+AL+7/0.20mm OFC GroundO.D:4.1mm PVC
8Cx22AWG	8CX7/0.20mmOFC I.D:1.0mm PVC+AL+7/0.20mm OFC GroundO.D:4.5mm PVC
10Cx22AWG	10CX7/0.20mmOFC I.D:1.0mm PVC+AL+7/0.20mm OFC GroundO.D:5.0mm PVC
12Cx22AWG	12CX7/0.20mmOFC I.D:1.0mm PVC+AL+7/0.20mm OFC GroundO.D:5.5mm PVC

Shenzhen ADP Cables Co., Ltd. Was established in 2002 and is a professional manufacturer for Fiber Optic Cable, LAN cables, Coaxial cable, Security Alarm Cable.
Fiber Optic Cable indoor and outdoor, fiber pigtails, fiber patch cable; CAT3/CAT5E/CAT6/CAT6A/CAT7 cable, RJ11/RJ45 patch cord; 1pair -200pair Telelphone cable; Coaxail Cable RG6/RG58/RG59/RG11...SYV/SYWV serises...Fire Alarm Cable. And fiber patch cord, connector, accessories.

Our company is equipped with full sets coloring machines fiber ribbon forming machine, secondary coating lines, cabling lines, meshing machines, twisting machines, inspection equipment and instrument for all electrical, mechanical, temperature and environmental performance.

Our products strictly adhere to ISO 9001, CE and RoHS international standards, which also cover our design, development, services, and management. We have more than 100 employees, including 10 technical personnel. Our annual production value researches to USD200, 000, 000, giving us stable development and increased competitive power within the market.

We will continue being a people-oriented and faithful supplier offering technical support and good customer service. For more information, please visit our website or contact us directly with your questions or inquiries.
